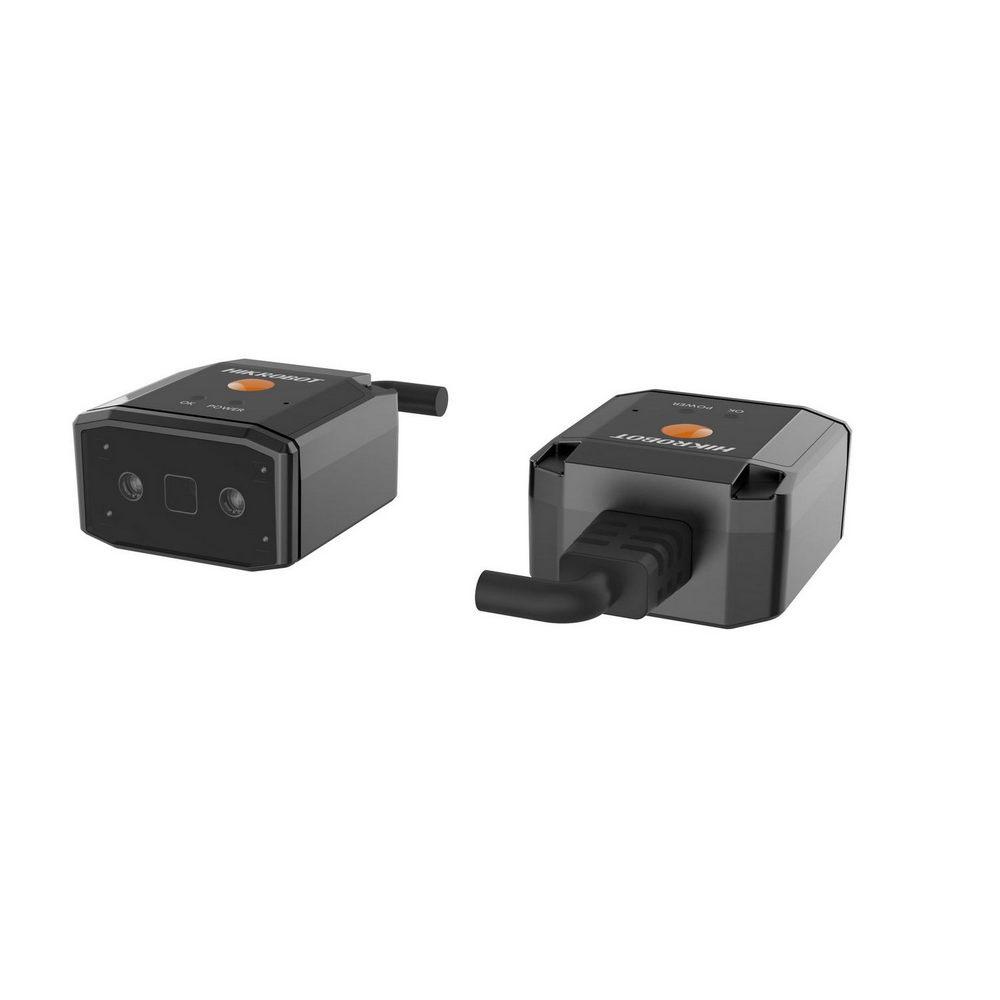

Name: HIKROBOT MV-ID2013EM-05-WBP-U :: Smart Code Reader, ID2000 Series, 1.3MPix (1280×1024), 30 codes/sec, 50 fps, 5мм, USB 2.0, бял цвят (polarized)
Brand: HIKROBOT
Availability: OutOfStock

Описание

Вграден deep-learning алгоритъм за разчитане на кодове с висока надеждност
Компактен дизайн и малки размери
Използва множество IO интерфейси и захранващ интерфейс
Използва LED светлина за прицелване към кодове
Използва зумер и индикатор за показване състоянието на устройството
Поддържа one-click настройване на параметри за удобно управление

Model	Product Model	MV-ID2013EM-05-WBP-U
Model	Type	5mm focal length 1.3MP USB Ultra-Compact Industrial Code Reader
Performance	Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE2-dimensional codes: QR Code, Data Matrix
	Max. frame rate	50 fps
	Max. reading speed	30 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	2.7 µm × 2.7 µm
	Sensor size	1/4"
	Resolution	1280 × 1024
	Exposure time	60 μs to 6000 μs
	Gain	1 dB to 28 dB
	Mono/color	Mono
	Communication protocol	Device with USB interface: SmartSDK, USB (HID, CDC)
	Depth of field	Code 39 (5 mil): 75 mm to 215 mmCode 128 (10 mil): 50 mm to 400 mmEAN 13 (13 mil): 60 mm to 420 mmData Matrix (10 mil): 50 mm to 240 mmQR Code (15 mil): 40 mm to 290 mm
Optics	Focal length	4.7 mm (0.2")
	Working distance	120 mm (4.7")
	Ambient illumination	900 lux@120 mm
	Light source	White (polarized)
	Aiming system	Green LED
Electrical feature	Data interface	Device with USB interface: USB2.0
	Digital I/O	Device with USB interface: DB15 connector provides data transmission. Device trigger via pressing trigger button supported.
	Power supply	Device with USB interface: 5 VDC (USB2.0 provides power supply)
	Max. power consumption	Device with USB interface: 2.5 W@5 VDC (USB2.0 provides power supply)
Mechanical	Lens mount	M5.8-mount
	Indicator	Power indicator (POWER), status indicator (OK/NG)
	Dimension	45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0")
	Weight	Approx. 68.5 g (0.15 lb.)
	Ingress protection	IP54
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	IDMVS
General	Certification	CE, FCC, RoHS
