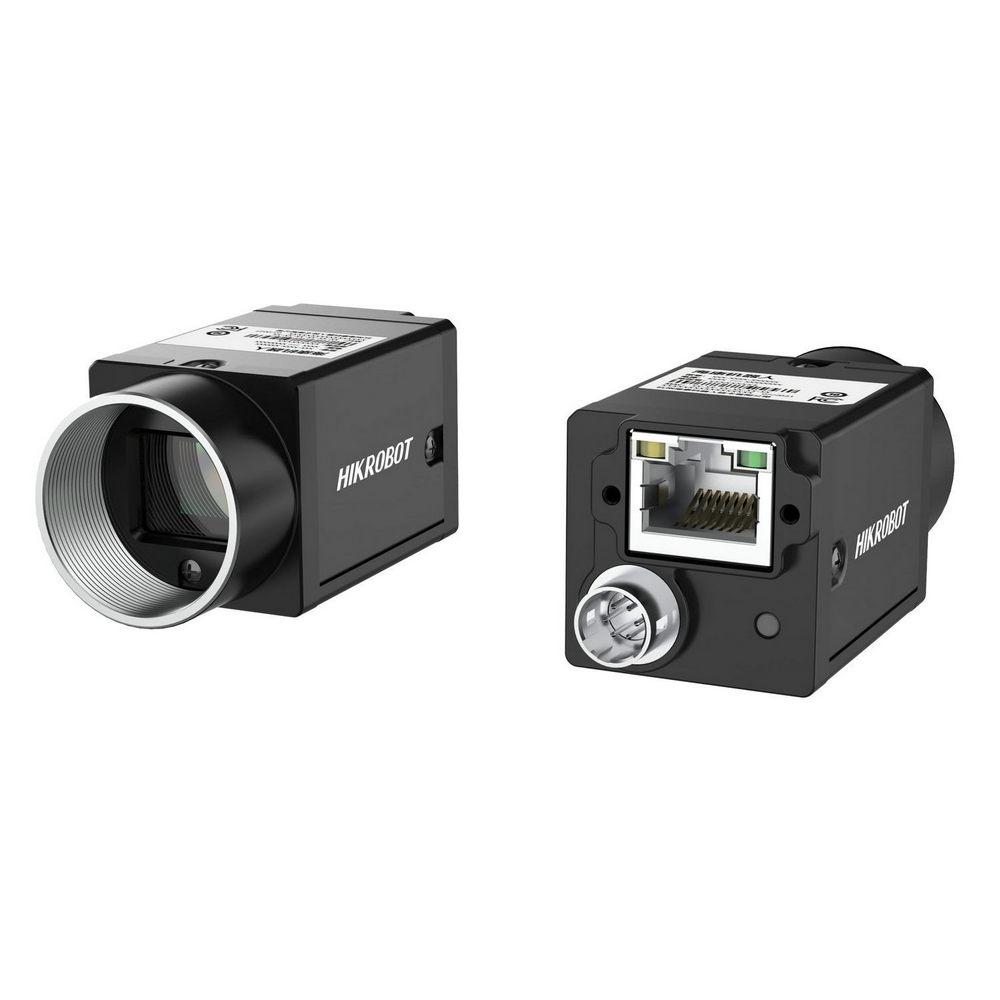

Name: HIKROBOT MV-CU016-10GM :: Machine-Vision камера, Area Scan, CU Series, 3.45 μm, 65.8 fps @ 1440×1080 Mono 8, C-Mount, Gigabit, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Дизайн с ниска консумация на енергия със стабилна производителност
Поддържа автоматично и ръчно регулиране на усилване, време на експозиция и др.
Поддържа хардуерен и софтуерен тригер, свободно движение и др.
GigE интерфейс и максимално разстояние на предаване от 100 метра
Съвместимост с GigE Vision V2.0 протокол, GenlCam стандарт и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CU016-10GM
Model	Type	1.6MP Area Scan Camera, GigE, IMX296, Mono, with PoE
Performance	Sensor type	CMOS, global shutter
	Sensor model	IMX296
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	1/2.9"
	Resolution	1440 × 1080
	Max. frame rate	65.8 fps @1440 × 1080 Mono 8
	Dynamic range	74 dB
	SNR	41 dB
	Gain	0 dB to 24 dB
	Exposure time	UltraShort exposure mode: 1 μs to 14 μsStandard exposure mode: 15 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	GigE
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, PoE is optional
	Power consumption	Typ. 2 W@12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
	Weight	Approx. 100 g (0.2 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
