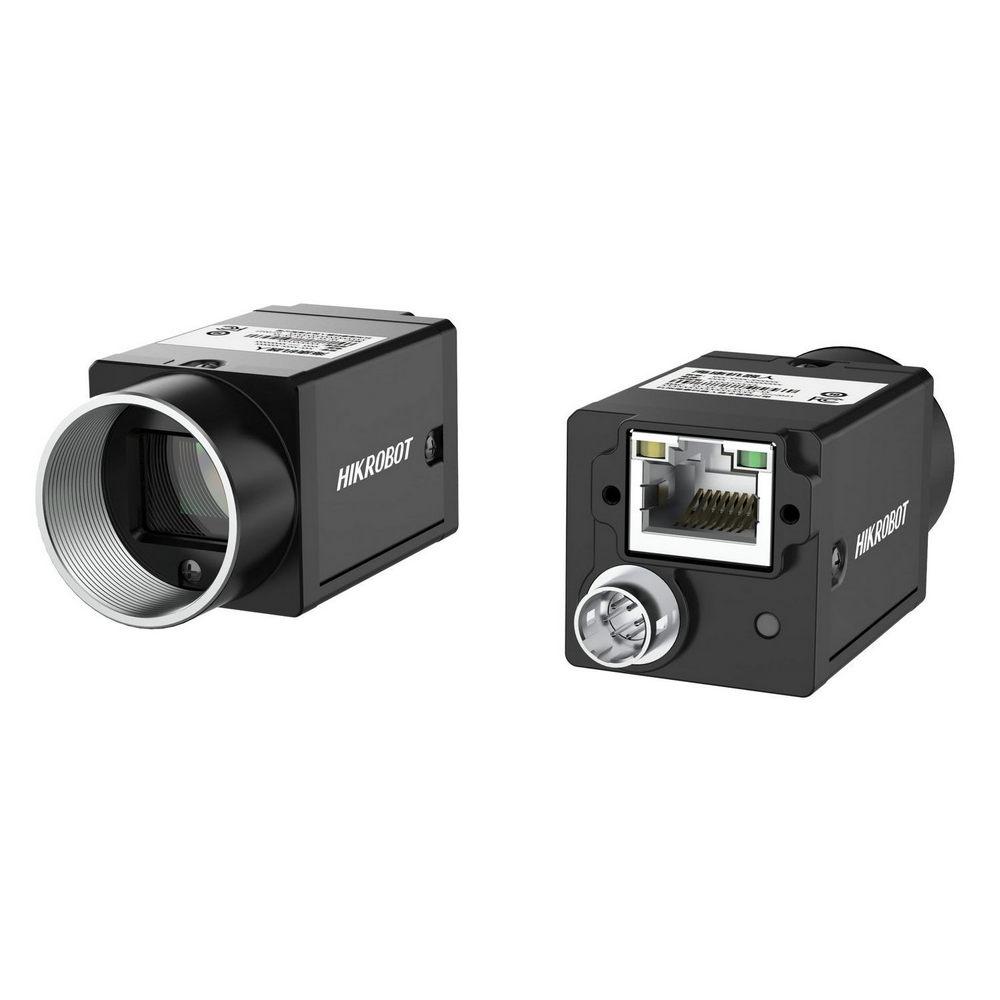

Name: HIKROBOT MV-CU013-80GC :: Machine-Vision камера, Area Scan, CU Series, 4.0 μm, 89.9 fps @ 1280×1024 Bayer BG 8, C-Mount, цветна, Gigabit
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа автоматично или ръчно регулиране на усилването, времето на експозиция, ръчно регулиране на LUT, гама корекция и др.
Поддържа хардуерен и софтуерен тригер, свободно движение и др.
GigE интерфейс и максимално разстояние на предаване от 100 метра
Съвместимост с GigE Vision V2.0 протокол, GenlCam стандарт и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CU013-80GC
Model	Type	1.3MP Area Scan Camera, GigE, SS, Color
Performance	Sensor type	CMOS, global shutter
	Sensor model	SS
	Pixel size	4.0 µm × 4.0 µm
	Sensor size	1/2.7"
	Resolution	1280 × 1024
	Max. frame rate	89.9 fps @1280 × 1024 Bayer BG 8
	Dynamic range	54.5 dB
	SNR	39.2 dB
	Gain	0 dB to 20 dB
	Exposure time	31 μs to 1 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Bayer BG 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	GigE
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, PoE is optional
	Power consumption	Typ. 2.2 W@12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
	Weight	Approx. 100 g (0.2 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
