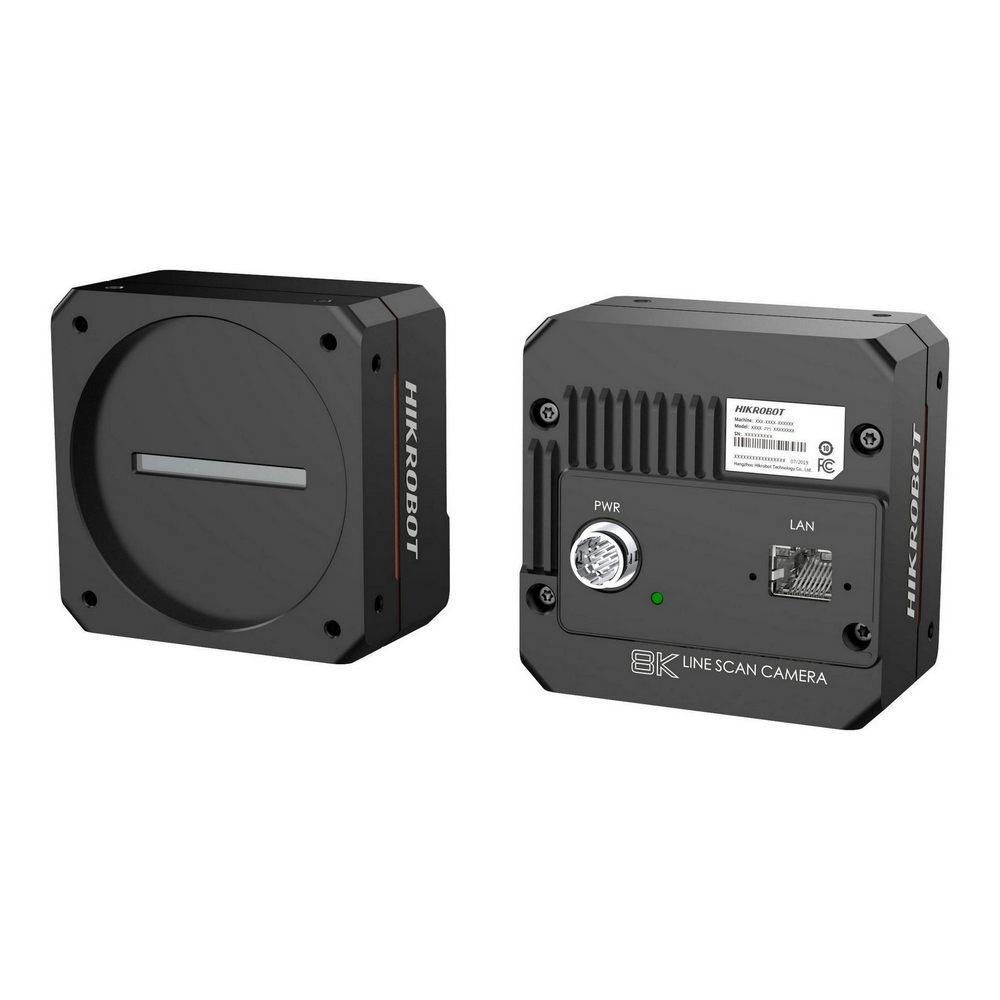

Name: HIKROBOT MV-CL086-91GC :: Machine-Vision камера, Line Scan, CL Series, 5 μm, 8192×6, цветна, Gigabit, M72 *0.75
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа режим на компресия на изображението, TDI, експозиция по ширина на тригера, RGB true color и др.
Поддържа ръчна настройка за корекция на гама, баланс на бялото, корекция на PRNUC, LUT, ниво на черното, корекция на пространството и др.
Двупосочен I/O хардуерен дизайн
Компактен дизайн и гъвкав монтаж
Съвместим с GigE Vision V2.0 и GenICam Standard

Model	Product Model	MV-CL086-91GC
Model	Type	8K GigE Line Scan Cameras，Color
Performance	Sensor type	CMOS
	Pixel size	5 μm
	Resolution	8192 × 6
	Image mode	Supports 1-line, 2-TDI
	Max. line rate	Standard mode: 14 kHz @Bayer 8/Mono 8, 7 kHz @Bayer 10/Mono 10, 4.7 kHz @RGB 8/BGR 8High-bandwidth mode: 40 kHz @Bayer 8, 20 kHz @Bayer 10, 14 kHz @RGB 8
	Dynamic range	54.8 dB
	SNR	40.3 dB
	Gain	Supports 1.2 ×, 2.7 ×, 4.6 ×
	Exposure time	3 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous exposure mode, and supports trigger-width exposure
	Mono/color	Color
	Pixel format	Mono 8/10, Bayer RG 8/10, RGB 8, BGR 8
	Binning	Not support
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal trigger
	External trigger mode	Line trigger, frame trigger, line + frame trigger
Electrical feature	Data interface	GigE
	Digital I/O	12-pin Hirose connector provides power and I/O: configurable input or output × 4 (Line 0/1/3/4) and support single-ended/differential
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 13.0 W@12 VDC
Mechanical	Lens mount	M72 *0.75, optical back focal length: 12 mm (0.5")
	Dimension	80 mm × 80 mm × 46.3 mm (3.1" × 3.1" × 1.8")
	Weight	Approx. 465 g (1.0 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -20 °C to 55 °C (-4 °F to 131 °F); Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	5% to 90% RH, non-condensing
General	Client software	MVS or the third-party software meeting with GigE Vision protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, FCC, RoHS, KC
