Докинг станция Dell SD25TB5, от Thunderbolt 5 към 2x Thunderbolt 5, 2x USB-C, 4x USB-A, 2x DisplayPort, 1x HDMI, 1x RJ45, черна

Dell SD25TB5

Future-proof your productivity

Maximise your AI PC productivity on the industry’s first, and most powerful, Thunderbolt 5 smart dock, built for seamless multitasking using Gen AI tools across up to four 4K 120Hz displays. Featuring extended power range, this smart dock delivers up to 300W of power over a single USB-C cable to meet the demands of the highest performance AI PCs. Modern ports ensure a wide range of peripheral connectivity.

	More manageable and secure Elevate the IT management experience by directly managing your smart docks from the Dell Device Management Console – no PC connection or software required.
	Designed for sustainability The Dell Pro Thunderbolt 5 Smart Dock is built with at least 65% post-consumer recycled materials and packaged with 100% recycled or renewable packaging.

Tech Specs

Technical Information

Connectivity Technology

Wired

Device Supported

Notebook

Cable Length

83 cm

Features

• Power Delivery Pass-through
• LED Power Indicator

Management Features

• WLAN to LAN Switch
• Port Disablement
• Dell Command Update (DCU)
• Intel AMT over Thunderbolt with select Intel vPro PCs
• Kernel Direct Memory Access (DMA) Protection
• Wake-on-LAN
• Dock Power Button Sync
• PXE Boot
• MAC Address Pass-through

Number of Displays Supported

4

Screen Mode Supported

• QHD @ 60Hz
• WQHD @ 60Hz
• 4K @ 60Hz
• 5K @ 60Hz
• 6K @ 60Hz
• 8K @ 60Hz
• 4K @ 120Hz

Supported Resolutions

• 7680 x 4320
• 6144 x 3456
• 5120 x 2160
• 3840 x 2160
• 3440 x 1440
• 2560 x 1440

Maximum Data Transfer Rate

1.25 GB/s

Security Slot Type

• Noble Wedge Security Slot
• Kensington Security Slot

Power Delivery Details

• 4 x USB-A 3.2 Gen 2 (4.5W each)
• 1 x USB-C 3.2 Gen 2 (15W)
• 1 x USB-C Multi-function DisplayPort (7.5W)
• 2 x Thunderbolt 5 (15W each)
• All deliver power with or without PC

Power Delivery

• 300W (Dell Systems)
• 240W (non-Dell Systems)

Video Resolution Details

• QHD - 60 Hz (Quad Display)
• WQHD - 60 Hz (Triple Display)
• 4K - 60 Hz (Dual Display)
• 5K - 60 Hz (Single Display)
• 4K - 60 Hz (Quad Display)
• 4K - 60 Hz (Triple Display)
• 6K - 60 Hz (Dual Display)
• 8K - 60 Hz (Single Display)
• 4K - 120 Hz (Quad Display)
• 4K - 120 Hz (Triple Display)

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet

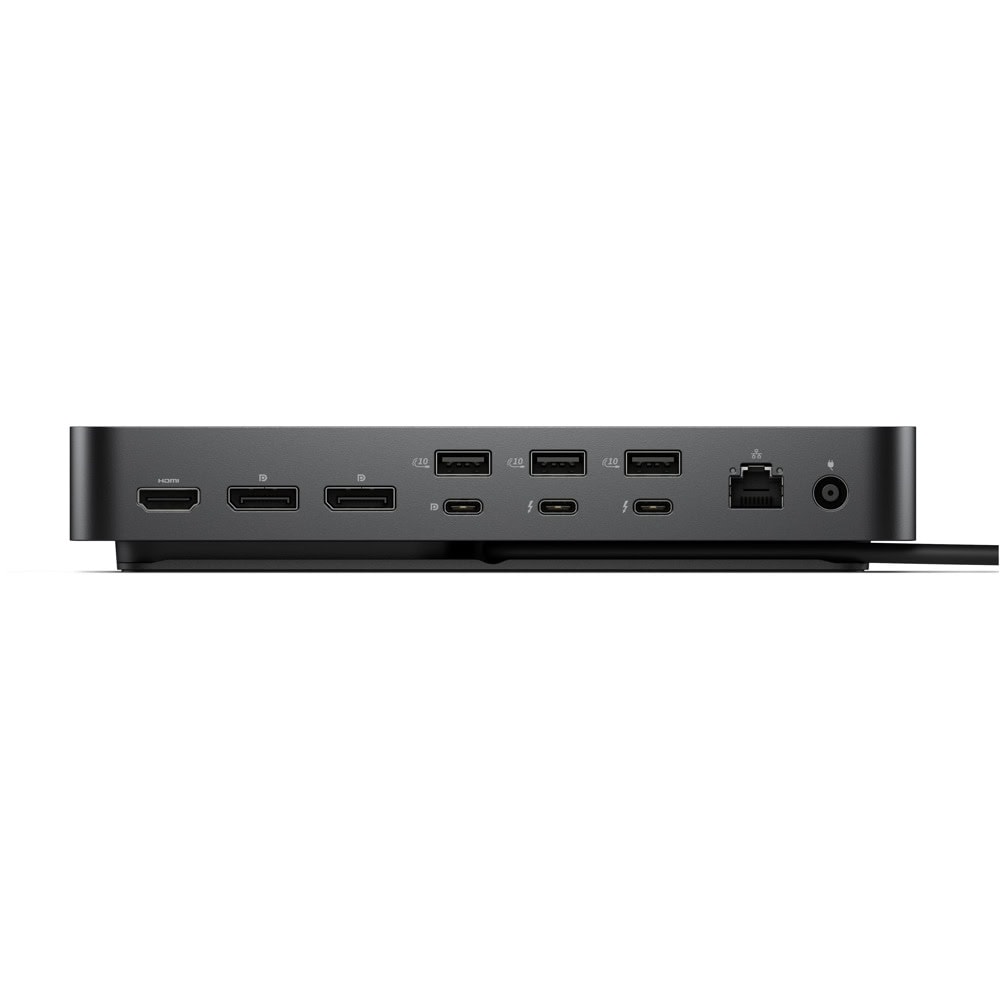

Interfaces/Ports

Host Interface

Thunderbolt 5

Total Number of USB Ports

6

Number of USB 3.2 Gen 2 Type-A Ports

4

Number of USB Type-A Ports

4

Number of USB Type-C Ports

2

USB Type-A

Yes

USB Type-C

Yes

USB Type-C Detail

1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1, 1 x USB-C 3.2 Gen 2 (10 Gbps)

Network (RJ-45)

Yes

Number of DisplayPorts

2

DisplayPort

Yes

DisplayPort Version

2.1

Number of HDMI Ports

1

HDMI

Yes

HDMI Version

2.1

Thunderbolt

Yes

Thunderbolt Ports Quantity

2

Software

Operating System Supported

• Windows 10
• Windows 11
• Ubuntu 24.04
• macOS
• Red Hat Enterprise Linux 9.7
• ChromeOS 141

Power Description

Maximum Power Supply Wattage

330 W

Power Source Type

Power Adapter

Physical Characteristics

Height

205 mm

Width

90 mm

Depth

35.3 mm

Weight (Approximate)

632 g

Miscellaneous

Kensington Security Slot

Yes
