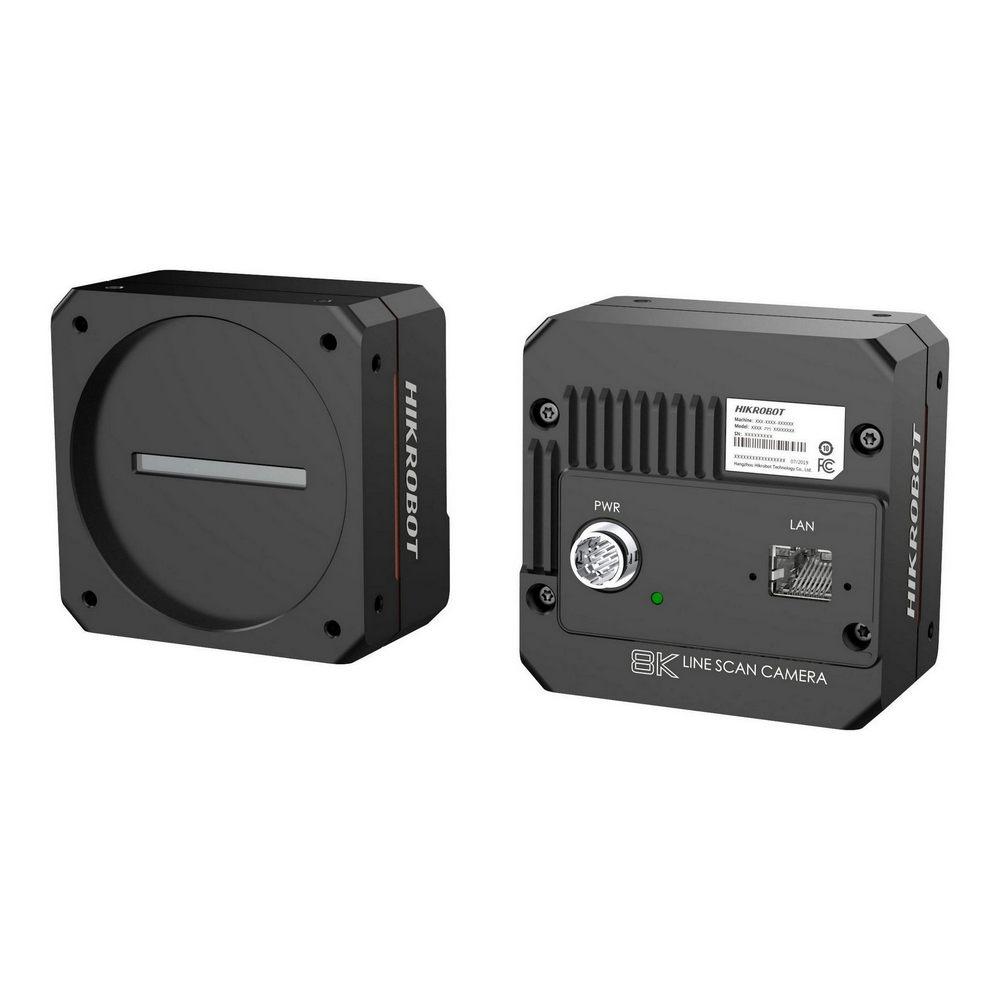

Name: HIKROBOT MV-CL084-91GM :: Machine-Vision камера, Line Scan, CL Series, 5 μm, 8192×4, Gigabit, M72 *0.75, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа режим на компресия на изображението, TDI, експозиция по ширина на тригера и др.
Поддържа ръчна настройка за корекция на гама, корекция на PRNUC, LUT, ниво на черното и др.
Двупосочен I/O хардуерен дизайн
Компактен дизайн и гъвкав монтаж
Съвместим с GigE Vision V2.0 и GenICam Standard

Model	Product Model	MV-CL084-91GM
Model	Type	8K GigE Line Scan Cameras，Mono
Performance	Sensor type	CMOS
	Pixel size	5 μm
	Resolution	8192 × 4
	Image mode	Supports 1-line, 2-TDI, 4-TDI
	Max. line rate	Standard mode: 14 kHz @Mono 8, 7 kHz @Mono 10/12, 9.4 kHz @Mono 10Packed/Mono 12PackedHigh-bandwidth mode: 29.8 kHz @Mono 8, 20 kHz @Mono 10/Mono 12
	Dynamic range	54.8 dB
	SNR	40.3 dB
	Gain	Supports 1.2 ×, 2.7 ×, 4.6 ×
	Exposure time	3 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous exposure mode, and supports trigger-width exposure
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal trigger
	External trigger mode	Line trigger, frame trigger, line + frame trigger
Electrical feature	Data interface	GigE
	Digital I/O	12-pin P10 connector provides power and I/O: configurable input or output × 4 (Line 0/1/3/4) and support single-ended/differential
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 12.4 W@12 VDC
Mechanical	Lens mount	M72 *0.75, flange focal length 12 mm (0.5")
	Dimension	80 mm × 80 mm × 46.3 mm (3.1" × 3.1" × 1.8")
	Weight	Approx. 465 g (1.0 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -20 °C to 55 °C (-4 °F to 131 °F); Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	5% to 90% RH, non-condensing
General	Client software	MVS or the third-party software meeting with GigE Vision protocol
	Operating system	32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux, and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, FCC, RoHS, KC
