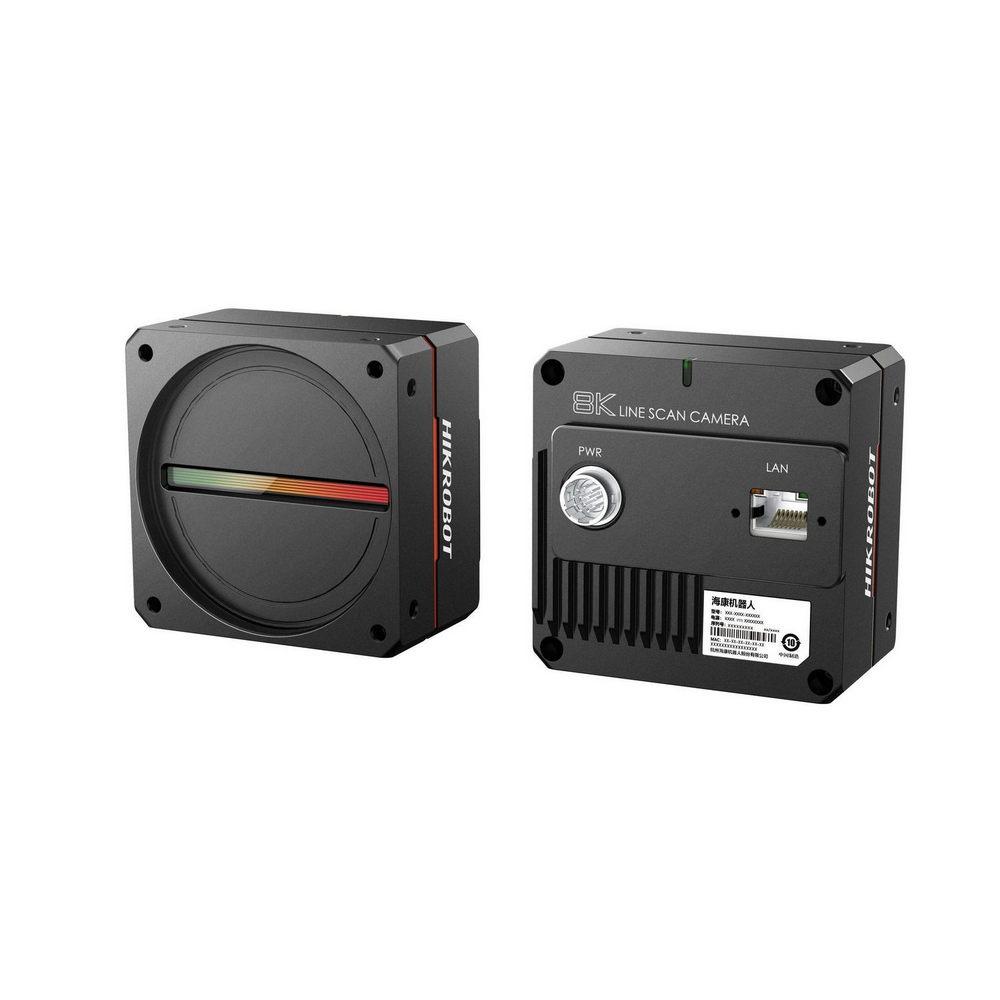

Name: HIKROBOT MV-CL083-92GC :: Machine-Vision камера, Line Scan, CL Series, 7 μm, 8192×3, цветна, Gigabit, M72 *0.75
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа режим на компресия на изображението с висока честотна лента, експозиция по ширина на тригера, RGB true color изображения и др.
Богати ISP алгоритми за изображения и поддържа ръчна настройка за гама корекция, корекция на плоско поле, LUT, ниво на черното и др.
Двупосочен I/O хардуерен дизайн
Компактен дизайн и гъвкав монтаж
Съвместимост с GigE Vision V2.0, GenlCam standard

Model	Product Model	MV-CL083-92GC
Model	Type	8K 7μm GigE line scan camera，Gpixel，Color
Performance	Sensor type	CMOS
	Pixel size	7 μm × 7 μm
	Resolution	8192 × 3
	Image mode	Supports 1-line
	Max. line rate	Standard mode: 14.1 kHz @Bayer·RG·8/Mono·8, 7.7 kHz @Bayer·RG·10, 4.7 kHz @RGB·8/BGR·8High-bandwidth mode: 33 kHz @Bayer·RG·/Mono 8, 23.2 kHz @Bayer·RG·10, 12.5 kHz @RGB·8/BGR·8
	Dynamic range	63.4 dB
	SNR	40.8 dB
	Gain	1.0 ×
	Exposure time	3 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous exposure mode, and supports trigger-width exposure
	Mono/color	Color
	Pixel format	Bayer RG 8/10, RGB 8, BGR 8, Mono 8
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal trigger
	External trigger mode	Line trigger, frame trigger, line + frame trigger
Electrical feature	Data interface	GigE
	Digital I/O	12-pin P10 connector provides power and I/O: configurable input or output × 4 (Line 0/1/3/4) and supports single-ended/differential
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 7.7 W@12 VDC
Mechanical	Lens mount	M72 *0.75, flange focal length: 12 mm (0.5"), applicable to F/C-mount and others via adapter
	Dimension	76 mm × 76 mm × 46.7 mm (3.0" × 3.0" × 1.8")
	Weight	Approx. 400 g (0.9 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -20 °C to 50 °C (-4 °F to 122 °F); Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	5% to 90% RH, non-condensing
General	Client software	MVS or the third-party software meeting with GigE Vision protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
