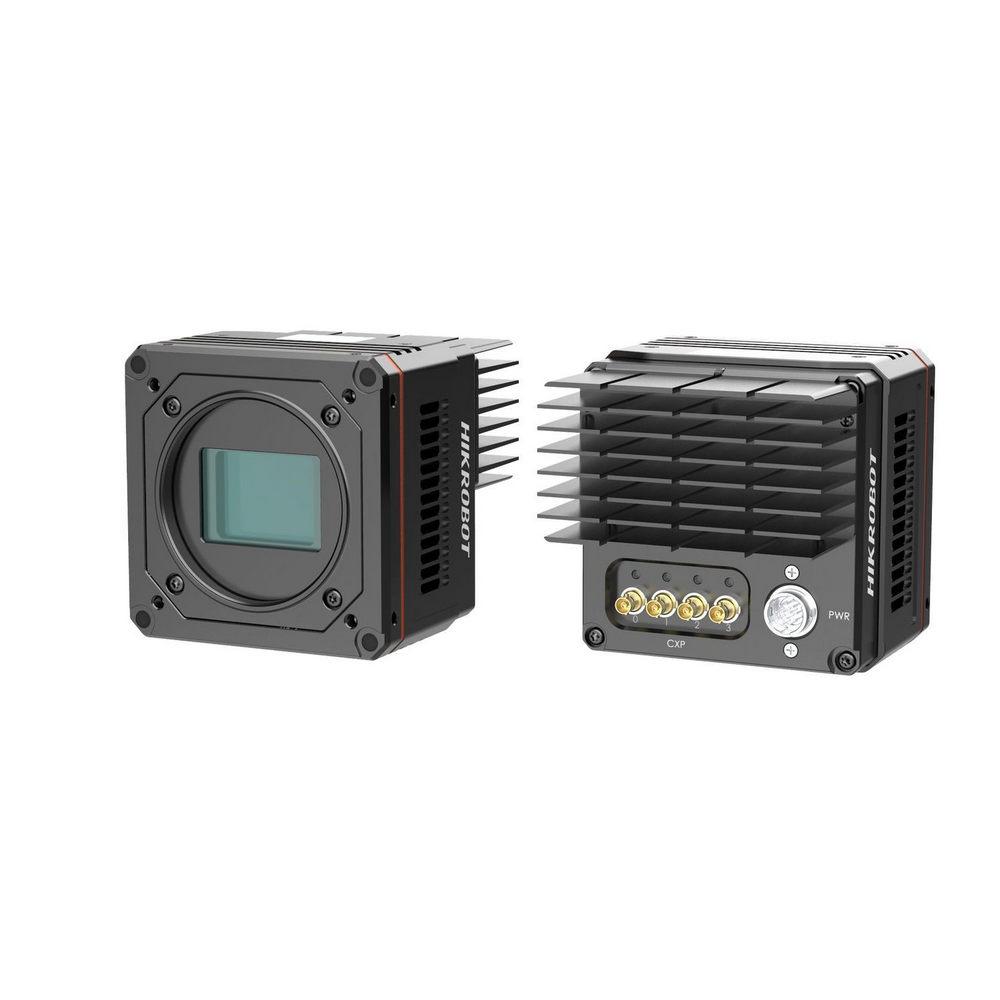

Name: HIKROBOT MV-CH650-90YM-M58S-NN :: Machine-Vision камера, Area Scan, CH Series, 3.2 μm, 71 fps @ 9344×7000, CoaXPress, M58*0.75, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 9344 × 7000, pixel size 3.2 µm × 3.2 µm
Използва global shutter CMOS сензор, осигуряващ високо съотношение сигнал/шум, широк динамичен диапазон и висококачествени изображения
Поддържа LSC Sequencer Polling
CXP-12 интерфейс за предаване на данни
Поддържа flat field correction
Съвместим с CoaXPress Protocol, GenICam Standard и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CH650-90YM-M58S-NN
Model	Type	65MP Area Scan Camera, CXP-12, GMAX3265, Mono, M58-mount, without fan
Performance	Sensor type	CMOS, global shutter
	Sensor model	GMAX3265
	Pixel size	3.2 µm × 3.2 µm
	Sensor size	29.9 mm × 22.4 mm
	Resolution	9344 × 7000
	Max. frame rate	71 fps @9344 × 7000
	Dynamic range	66 dB
	SNR	40 dB
	Gain	1.25x
	Exposure time	15 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	CoaXPress
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
	Power supply	24 VDC, CXP-1 and CXP-2 connectors support PoCXP
	Power consumption	Typ. 13.0 W@24 VDC
Mechanical	Lens mount	M58*0.75, optical back focal length 11.48 mm (0.5")
	Dimension	84 mm × 84 mm × 62.5 mm (3.3" × 3.3" × 2.5")
	Weight	Approx. 650 g (1.4 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or frame grabber software meeting with CoaXPress Protocol
	Operating system	32/64-bit Windows 7/10 with 8 GB memory or above
	Compatibility	CoaXPress, GenlCam
	Certification	CE, RoHS, KC
