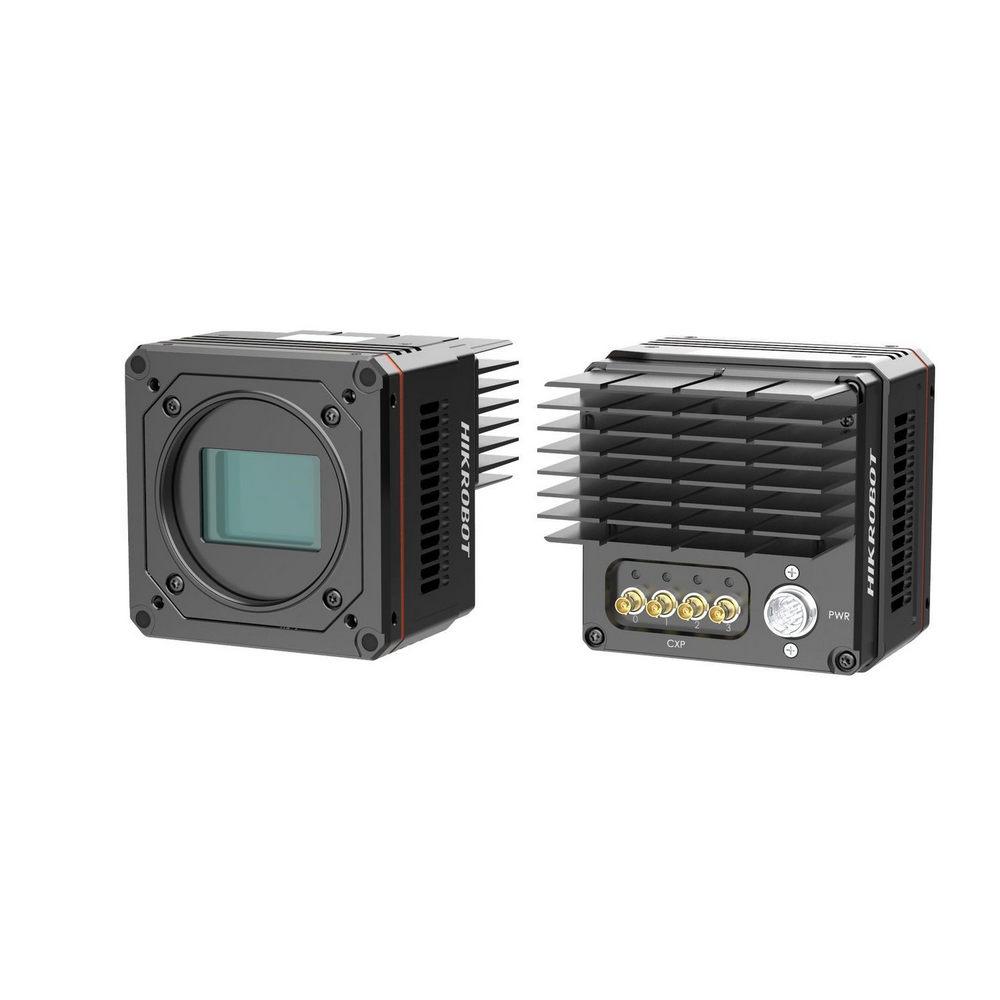

HIKROBOT MV-CH650-90YC-F-NN :: Machine-Vision камера, Area Scan, CH Series, 3.2 μm, 71 fps @ 9344×7000, CoaXPress NN, M58*0.75, монохромна

id s4534703
  • Марка: HIKROBOT
  • Наличност: Не е наличен
    Продукта вече не се предлага Абонирай се за бюлетина
    Описание
    • Резолюция 9344 × 7000, pixel size 3.2 µm × 3.2 µm
    • Използва global shutter CMOS сензор, осигуряващ високо съотношение сигнал/шум, широк динамичен диапазон и висококачествени изображения
    • Поддържа LSC Sequencer Polling
    • CXP-12 интерфейс за предаване на данни
    • Поддържа flat field correction
    • Съвместим с CoaXPress Protocol, GenICam Standard и софтуер на трети страни, базиран на протокола и стандарта
    ModelProduct ModelMV-CH650-90YC-F-NN
    Type65MP Area Scan Camera, CXP-12, GMAX3265, Color, F-mount, without fan
    PerformanceSensor typeCMOS, global shutter
    Sensor modelGMAX3265
    Pixel size3.2 µm × 3.2 µm
    Sensor size29.9 mm × 22.4 mm
    Resolution9344 × 7000
    Max. frame rate71 fps @9344 × 7000
    Dynamic range66 dB
    SNR40 dB
    Gain1.25x
    Exposure time15 μs to 10 sec
    Exposure modeOff/Once/Continuous exposure mode
    Mono/colorMono
    Pixel formatMono 8/10/12
    BinningSupports 1 × 1, 2 × 2, 4 × 4
    DecimationSupports 1 × 1, 2 × 2, 4 × 4
    Reverse imageSupports horizontal and vertical reverse image output
    Electrical featureData interfaceCoaXPress
    Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
    Power supply24 VDC, CXP-1 and CXP-2 connectors support PoCXP
    Power consumptionTyp. 13.0 W@24 VDC
    MechanicalLens mountM58*0.75, optical back focal length 11.48 mm (0.5")
    Dimension84 mm × 84 mm × 62.5 mm (3.3" × 3.3" × 2.5")
    WeightApprox. 650 g (1.4 lb.)
    Ingress protectionIP40 (under proper lens installation and wiring)
    TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
    Humidity20% to 95% RH, non-condensing
    GeneralClient softwareMVS or frame grabber software meeting with CoaXPress Protocol
    Operating system32/64-bit Windows 7/10 with 8 GB memory or above
    CompatibilityCoaXPress, GenlCam
    CertificationCE, RoHS, KC
