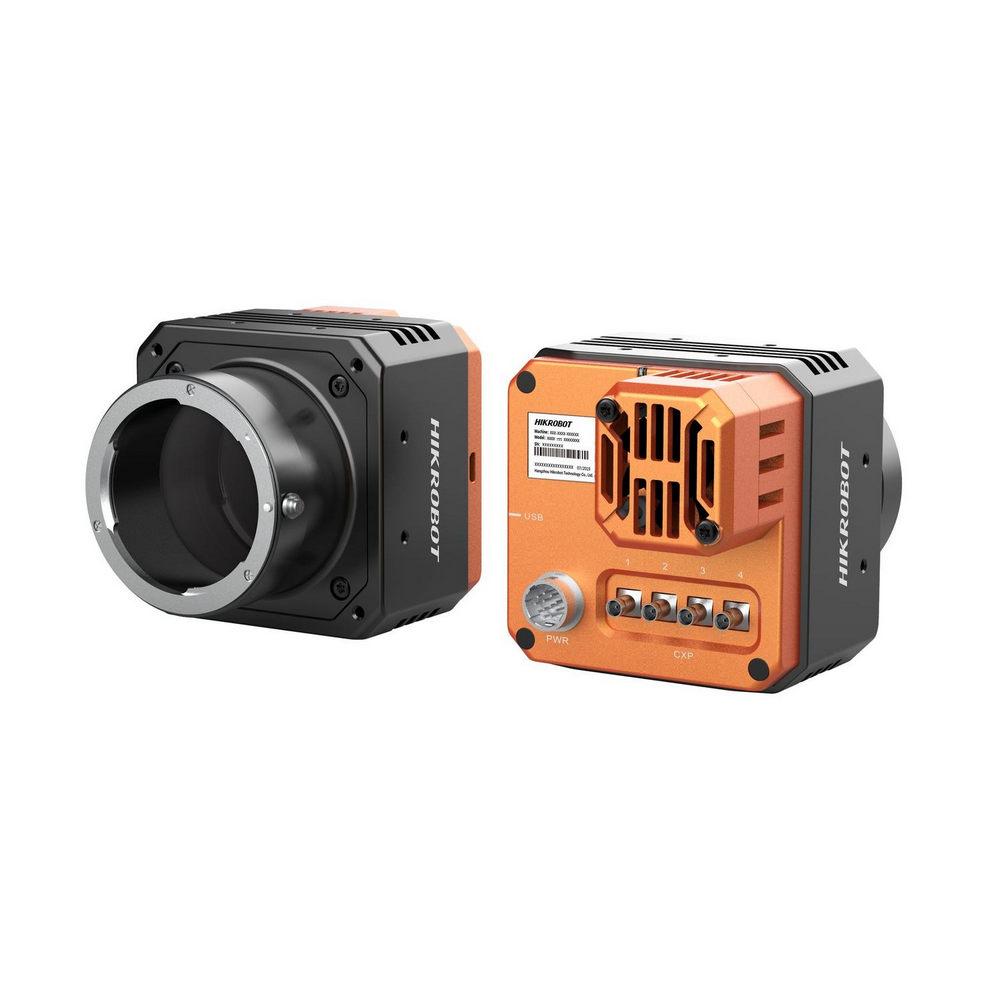

Name: HIKROBOT MV-CH650-90XM-F-NF :: Machine-Vision камера, Area Scan, CH Series, 3.2 μm, 31.5 fps @ 9344×7000, CoaXPress, F-mount, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 9344 × 7000, pixel size 3.2 µm × 3.2 µm
Използва global shutter CMOS сензор, осигуряващ високо съотношение сигнал/шум, широк динамичен диапазон и висококачествени изображения
CXP-6 интерфейс за предаване на данни
Поддържа режими на експозиция Off, Once и Continuous
Съвместим с CoaXPress Protocol, GenICam Standard и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CH650-90XM-F-NF
Model	Type	65MP Area Scan Camera, CXP-6, GMAX3265, Mono, F-mount, with fan
Performance	Sensor type	CMOS, global shutter
	Sensor model	GMAX3265
	Pixel size	3.2 µm × 3.2 µm
	Sensor size	29.9 mm × 22.4 mm
	Resolution	9344 × 7000
	Max. frame rate	31.5 fps @9344 × 7000
	Dynamic range	66 dB
	SNR	40 dB
	Gain	1.25x to 6x
	Exposure time	14 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 ×1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 ×1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	CoaXPress
	Digital I/O	12-pin P10 connector provides I/O: opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
	Power supply	24 VDC
	Power consumption	Typ. 10.5 W@24 VDC
Mechanical	Lens mount	F-mount: optical back focal length: 46.5 mm (1.8")
	Dimension	F-mount with fan: 74 mm × 74 mm × 76.4 mm (2.9" × 2.9" × 3.0")
	Weight	F-mount with fan: approx. 500 g (1.1 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	Frame grabber software meeting with CoaXPress Protocol
	Operating system	32/64-bit Windows 7/10 with 8 GB memory or above
	Compatibility	CoaXPress, GenlCam
	Certification	CE, RoHS, KC
