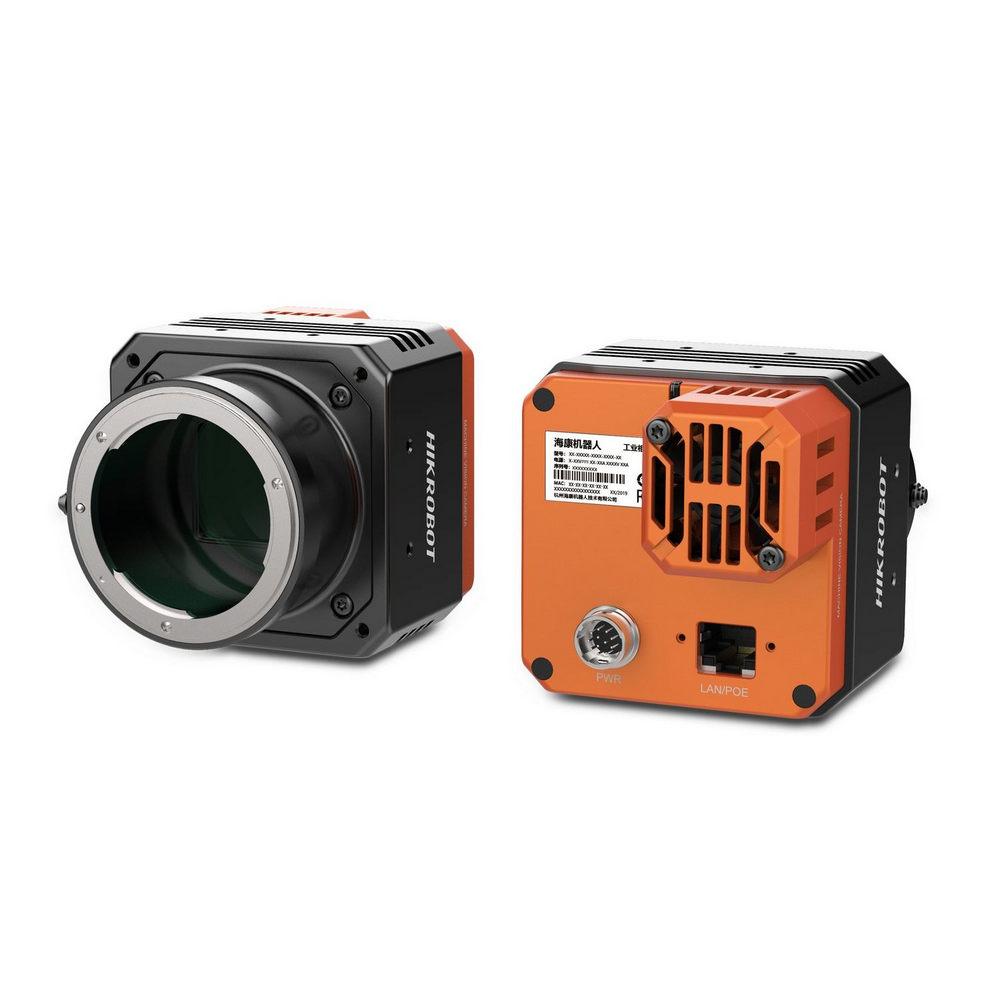

Name: HIKROBOT MV-CH650-90TM-F-NF :: Machine-Vision камера, Area Scan, CH Series, 10 Gigabit, 17.2 fps @ 9344×7000, 3.2 μm, F-mount, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 9344 × 7000, pixel size 3.2 μm × 3.2 μm
10 GigE интерфейс, осигуряващ максимално разстояние на предаване от 100 метра
Поддържа автоматично или ръчно регулиране на усилването и времето на експозиция, и ръчно регулиране на LUT и гама корекция
Съвместим с GigE Vision Protocol V2.0, GenICam Standard и софтуер на трети страни, базиран на протокола/стандарта

Model	Product Model	MV-CH650-90TM-F-NF
Model	Type	65MP Area Scan Camera, 10GigE, GMAX3265, Mono, F-mount, with fan
Performance	Sensor type	CMOS, global shutter
	Sensor model	GMAX3265
	Pixel size	3.2 µm × 3.2 µm
	Sensor size	29.9 mm × 22.4 mm
	Resolution	9344 × 7000
	Max. frame rate	17.2 fps @9344 × 7000
	Dynamic range	66 dB
	SNR	40 dB
	Gain	1.25X to 6X
	Exposure time	18 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10p/12/12p
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	10GigE
	Digital I/O	12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
	Power supply	9 VDC to 24 VDC
	Power consumption	Typ. 10.2 W@12 VDC
Mechanical	Lens mount	F-mount, optical back focal length 46.5 mm (1.8")
	Dimension	F-mount with fan: 74 mm × 74 mm × 84.8 mm (2.9" × 2.9" × 3.3")
	Weight	F-mount with fan: approx. 600 g (1.3 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10
	Compatibility	GigE Vision V2.0, GenlCam
	Certification	CE, RoHS, KC
