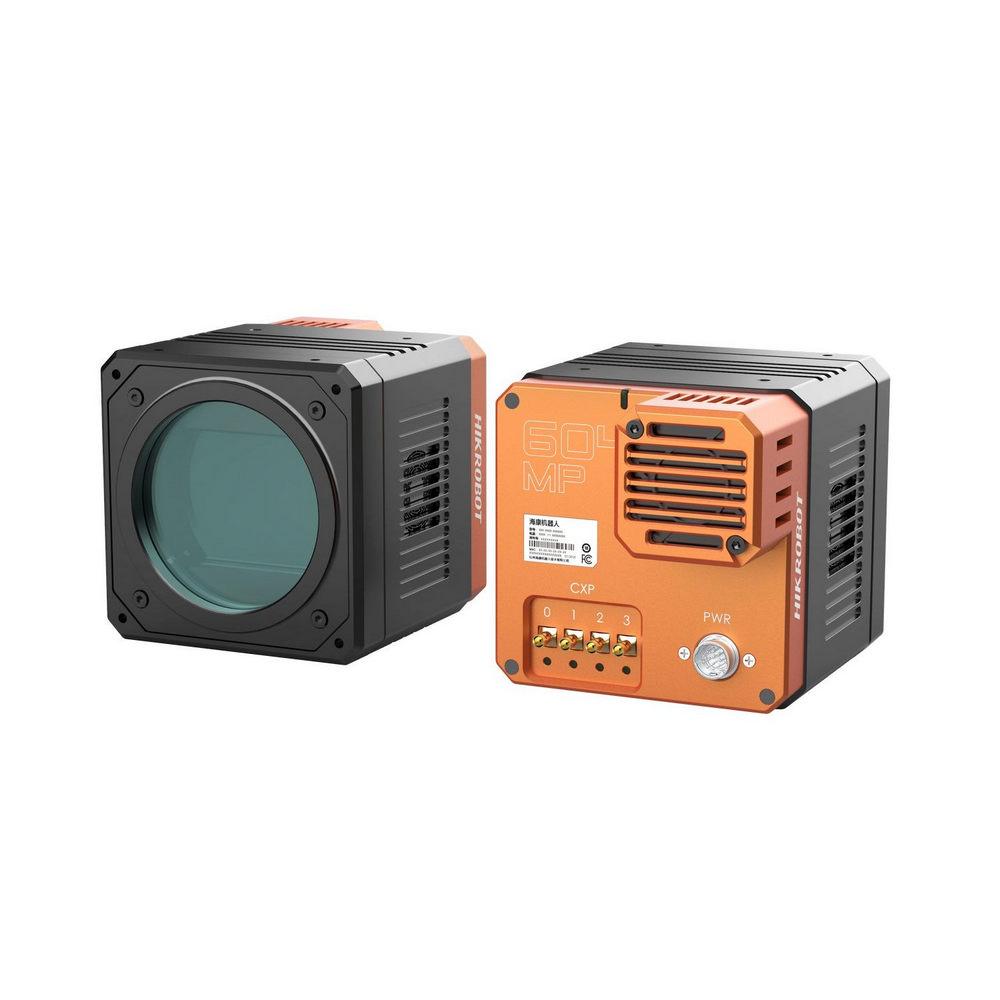

Name: HIKROBOT MV-CH6040-10XM-M72-NF :: Machine-Vision камера, Area Scan, CH Series, 1.45 fps @ 28416×21280, 3.76 μm, CoaXPress, M72-mount, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 28416 × 21280, pixel size 3.76 µm × 3.76 µm
Поддържа резолюция от 151 MP или 604 MP
ISP алгоритъм за подобряване на качеството на изображението
Поддържа FFC корекция и 16-битов ADC изход
CXP-6 интерфейс за предаване на данни
Съвместим с CoaXPress Protocol, GenICam Standard и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CH6040-10XM-M72-NF
Model	Type	604MP Area Scan Camera, CXP-6
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	IMX411
	Pixel size	3.76 µm × 3.76 µm
	Sensor size	66.7 mm
	Resolution	28416 × 21280
	Max. frame rate	1.45 fps @28416 × 21280
	Dynamic range	78.7 dB
	SNR	46.4 dB
	Gain	0 dB to 40 dB
	Exposure time	15 μs to 1 sec (604 MP)
	Exposure mode	Off/Once/Continuous exposure mode, supports Rolling and Global Reset
	Mono/color	Mono
	Pixel format	Mono 8/10/12/16
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Not support
	Reverse image	Supports horizontal reverse image output
Electrical feature	Data interface	CoaXPress
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
	Power supply	24 VDC
	Power consumption	Typ. 15 W@24 VDC
Mechanical	Lens mount	M72-mount, optical back focal length 19.55 mm (0.8")
	Dimension	100 mm × 100 mm × 128.5 mm (3.9" × 3.9" × 5.1")
	Weight	Approx. 1.4 kg (3.1 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Performance temperature: 20 °C to 35 °C (68 °F to 95 °F)Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or frame grabber software meeting with CoaXPress Protocol
	Operating system	64-bit Windows 7/10 with 16 GB memory or above
	Compatibility	CoaXPress, GenlCam
	Certification	CE, RoHS, KC
