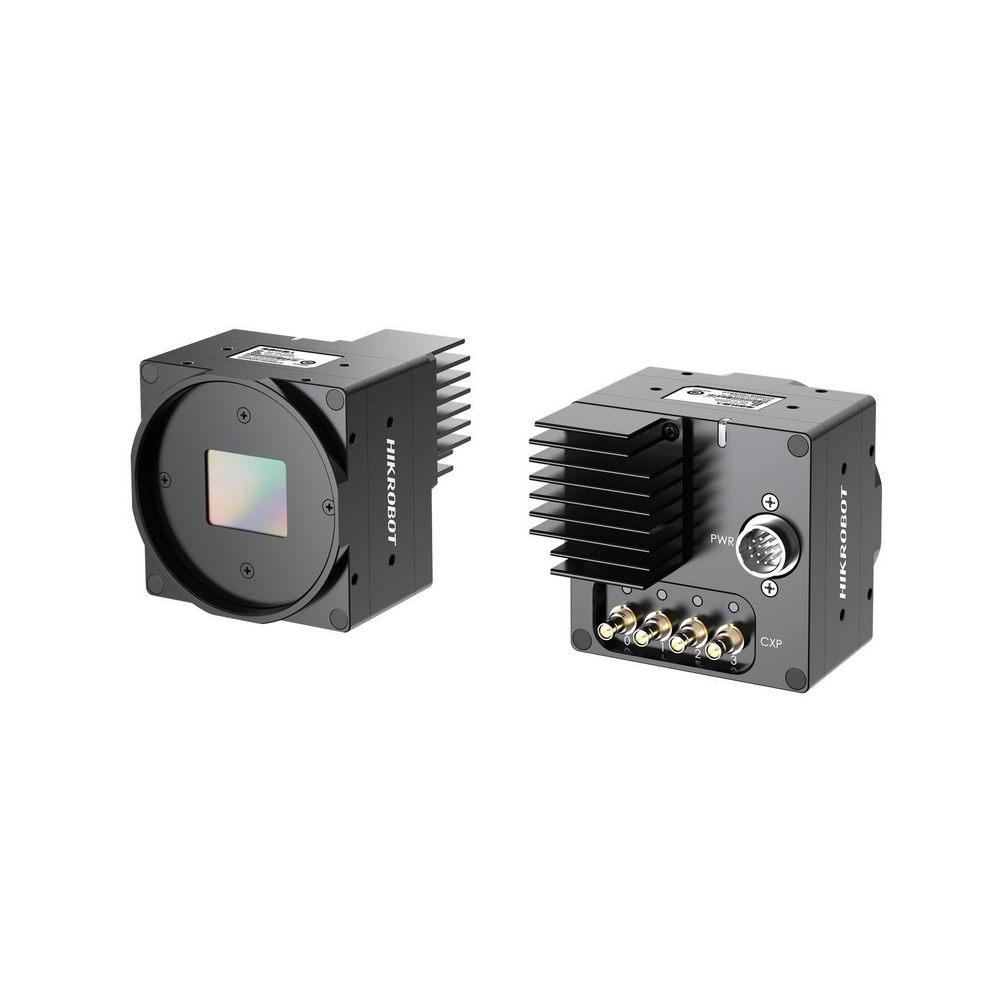

Name: HIKROBOT MV-CH250-90YM-C-NN :: Machine-Vision камера, Area Scan, CH Series, 150 fps @ 5120×5120 Mono 8, 2.5 μm, C-Mount, CoaXPress, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 5120 × 5120, pixel size 2.5 µm × 2.5 µm
Използва global shutter CMOS сензор, осигуряващ широк динамичен диапазон и висококачествени изображения
CXP-12 интерфейс за предаване на данни
Поддържа режими на експозиция Off, Once и Continuous
Съвместим с CoaXPress Protocol, GenICam Standard и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CH250-90YM-C-NN
Model	Type	25MP Area Scan Camera, CXP-12, GMAX0505, Mono, V2, C-mount
Performance	Sensor type	CMOS, global shutter
	Sensor model	GMAX0505
	Pixel size	2.5 µm × 2.5 µm
	Sensor size	1.1"
	Resolution	5120 × 5120
	Max. frame rate	150 fps @5120 × 5120 Mono 8
	Dynamic range	63 dB
	SNR	36 dB
	Gain	2.5 ×
	Exposure time	UltraShort exposure mode: 3 μs to 8 μsStandard exposure mode: 10 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	CoaXPress
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
	Power supply	12 VDC to 24 VDC, CXP-1 and CXP-2 support PoCXP
	Power consumption	Typ. 9.9 W@12 VDC
Mechanical	Lens mount	C-mount
	Dimension	60 mm × 60 mm × 59 mm (2.4" × 2.4" × 2.3") (cooling fins are optional)
	Weight	Approx. 285 g (0.6 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with CoaXPress Protocol
	Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux, 64-bit MacOS
	Compatibility	CoaXPress, GenlCam
	Certification	CE, RoHS, KC, UL
