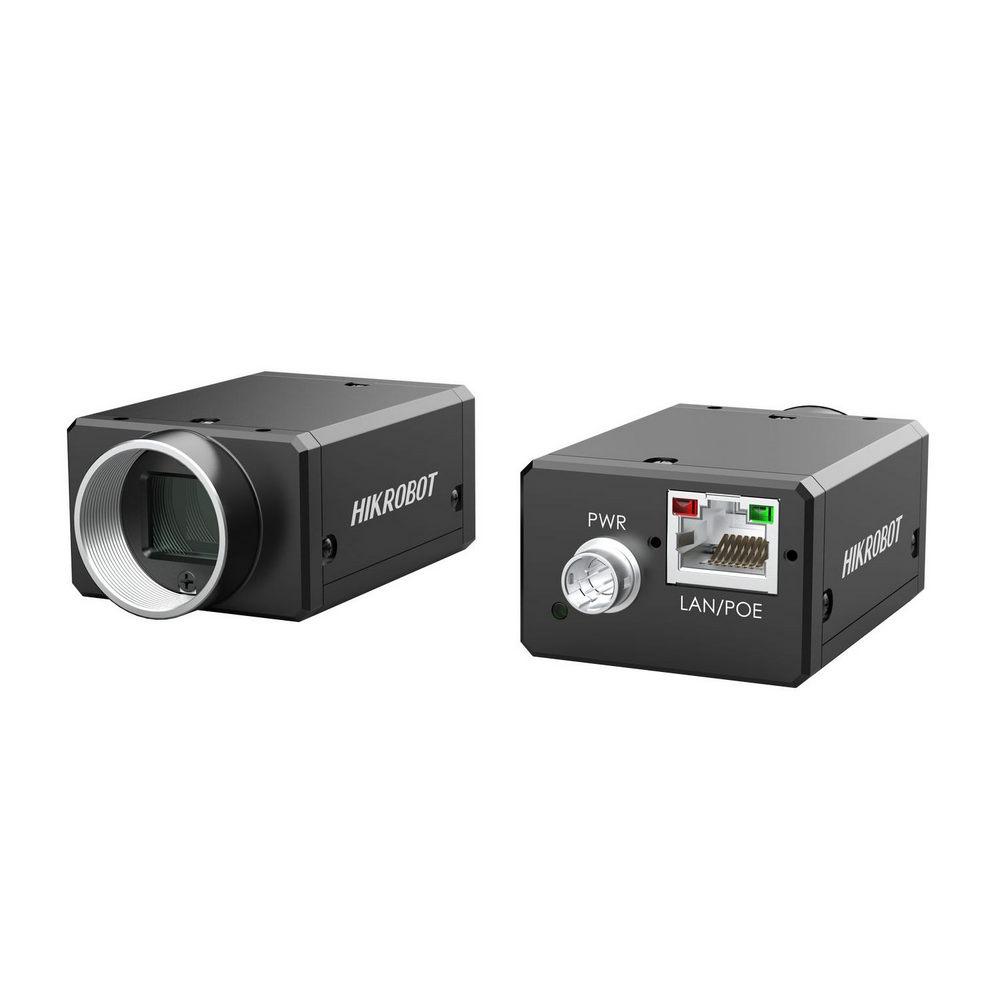

Name: HIKROBOT MV-CH250-90GM :: Machine-Vision камера, Area Scan, CH Series, 2.5 μm, 4.5 fps @ 5120×5120 Mono 8, C-Mount, Gigabit, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 5120 × 5120, pixel size 2.5 µm × 2.5 µm
Поддържа увеличаване на честотата на кадрите чрез ROI и поддържа binning, обръщане на изображението и LSC
GigE интерфейс и максимално разстояние на предаване от 100 метра
Поддържа хардуерен и софтуерен тригер, свободно движение и др.
Съвместимост с GigE Vision V2.0 протокол, GenlCam стандарт и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CH250-90GM
Model	Type	25MP Area Scan Camera, GigE, GMAX0505, Mono, V4
Performance	Sensor type	CMOS, global shutter
	Sensor model	GMAX0505
	Pixel size	2.5 µm × 2.5 µm
	Sensor size	1.1"
	Resolution	5120 × 5120
	Max. frame rate	4.5 fps @5120 × 5120 Mono 8
	Dynamic range	63 dB
	SNR	36 dB
	Gain	0 dB to 24 dB
	Exposure time	12 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	GigE
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 3.1 W@12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
	Weight	Approx. 100 g (0.2 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenlCam
	Certification	CE, RoHS, KC
