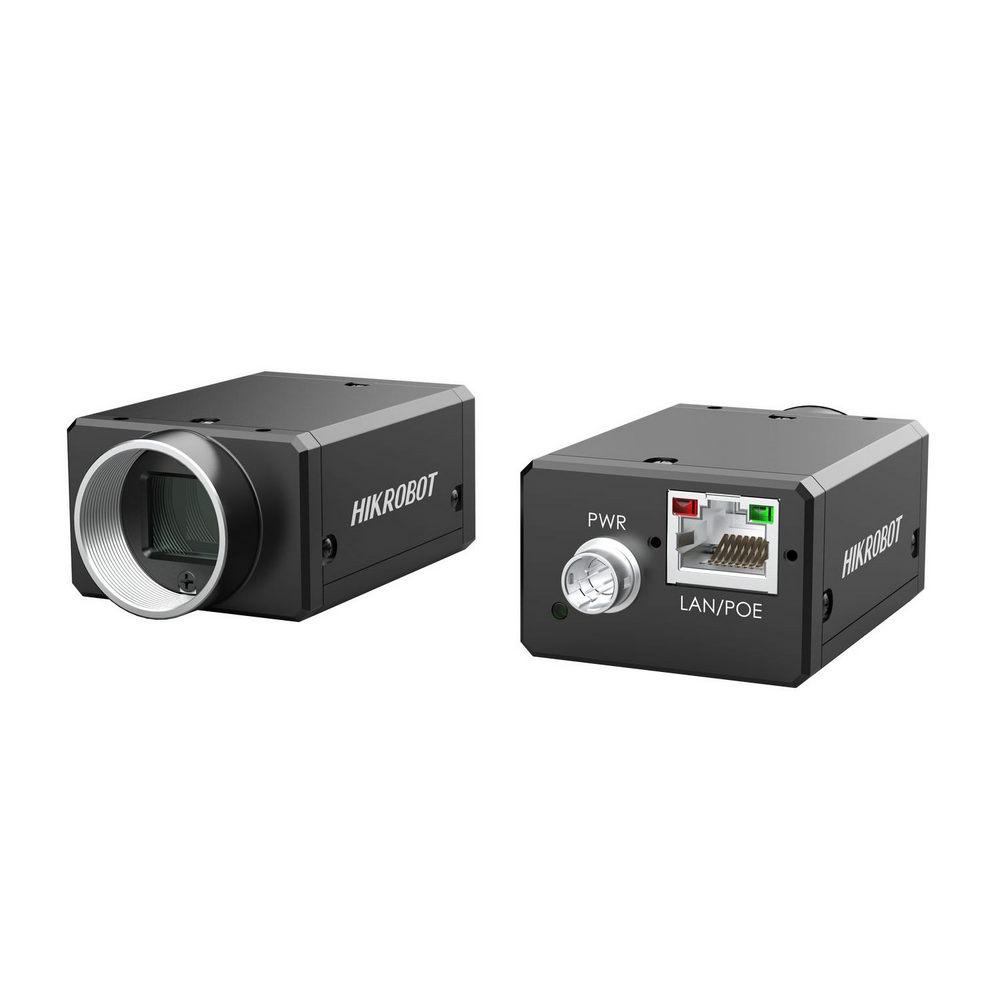

Name: HIKROBOT MV-CH160-60GM :: Machine-Vision камера, Area Scan, CH Series, 3.2 μm, 7.25 fps @ 4000×4000 Mono 8, C-Mount, Gigabit, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 4000 × 4000, pixel size 3.2 µm × 3.2 µm
GigE интерфейс и максимално разстояние на предаване от 100 метра
Поддържа хардуерен тригер, софтуерен тригер и свободно движение
Съвместимост с GigE Vision V2.0 протокол, GenlCam стандарт и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CH160-60GM
Model	Type	16MP Area Scan Camera, GigE
Performance	Sensor type	CMOS, global shutter
	Sensor model	HK
	Pixel size	3.2 µm × 3.2 µm
	Sensor size	1.1"
	Resolution	4000 × 4000
	Max. frame rate	7.25 fps @4000 × 4000 Mono 8
	Dynamic range	65 dB
	SNR	38 dB
	Gain	6 dB to 14 dB
	Exposure time	12 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	GigE
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 26 VDC, supports PoE
	Power consumption	Typ. 3.72 W@12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
	Weight	Approx. 100 g (0.2 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenlCam
	Certification	CE, RoHS, KC
