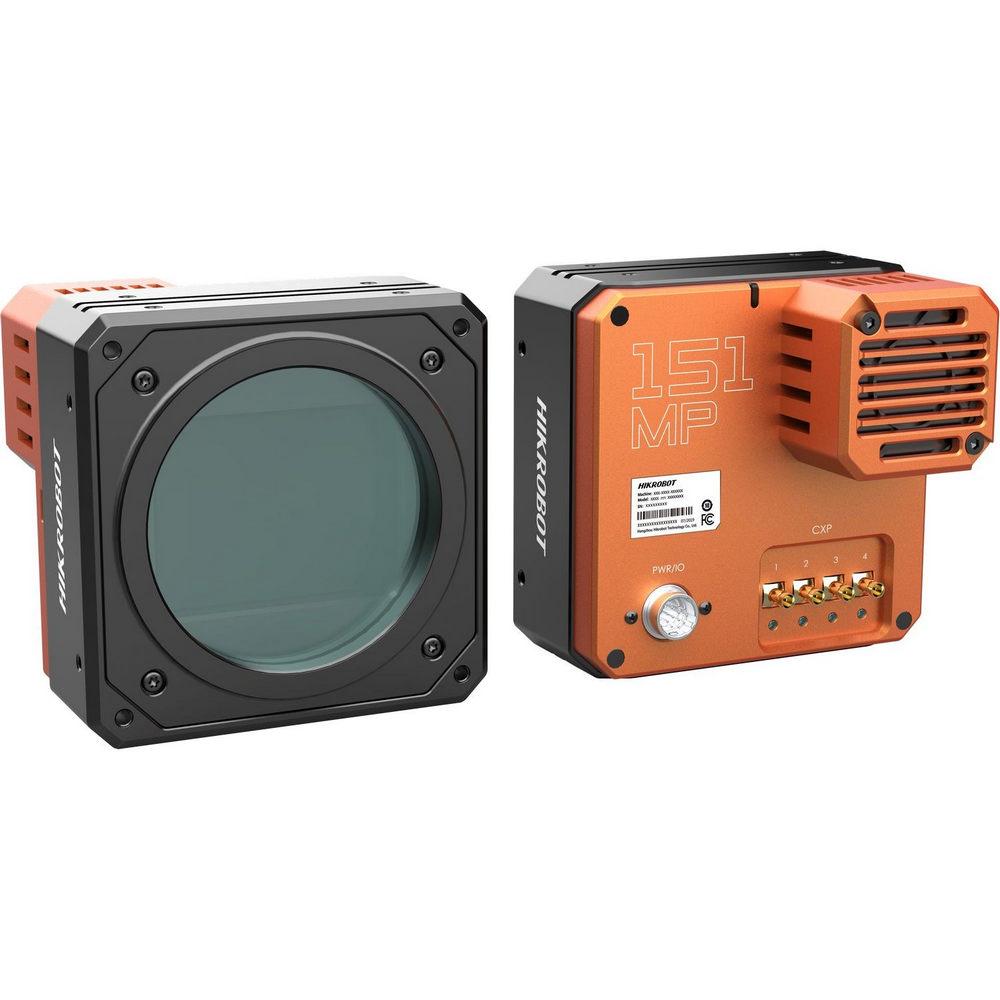

Name: HIKROBOT MV-CH1510-10XC-M72-NF :: Machine-Vision камера, Area Scan, CH Series, 3.76 μm, 6.2 fps @ 14208×10640 Mono 8, CoaXPress, цветна, M72*0.75
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 14208 × 10640, pixel size 3.76 µm × 3.76 µm
Използва rolling shutter CMOS, за да осигури висок динамичен диапазон, съотношение сигнал/шум и висококачествено изображение
CXP-6 интерфейс за предаване на данни
Поддържа flat field correction
Съвместим с CoaXPress Protocol, GenICam Standard и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CH1510-10XC-M72-NF
Model	Type	151MP Area Scan Camera, CoaXPress, IMX411, Color, M72-mount, with fan
Performance	Sensor type	Rolling shutter CMOS
	Sensor model	IMX411
	Pixel size	3.76 µm × 3.76 µm
	Sensor size	66.7 mm
	Resolution	14208 × 10640
	Max. frame rate	6.2 fps @14208 × 10640 Mono 8
	Dynamic range	78.7 dB
	SNR	46.4 dB
	Gain	0 dB to 36 dB
	Exposure time	15 μs to 60 sec
	Exposure mode	Off/Once/Continuous exposure mode, supports Global Reset, Rolling
	Mono/color	Color
	Pixel format	Mono 8/10/12/16, Bayer RG 8/10/12/16, RGB 8
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Not supported
	Reverse image	Supports horizontal reverse image output
Electrical feature	Data interface	CoaXPress
	Digital I/O	12-pin P10 connector provides I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 21 W@24 VDC
Mechanical	Lens mount	M72*0.75, optical back focal length 19.55 mm (0.8")
	Dimension	100 mm × 100 mm × 74.3 mm (3.9" × 3.9" × 2.9")
	Weight	Approx. 1 kg (2.2 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	Frame grabber software meeting with CoaXPress Protocol
	Operating system	32/64-bit Windows 7/10 with 8 GB memory or above
	Compatibility	CoaXPress, GenlCam
	Certification	CE, RoHS, KC
