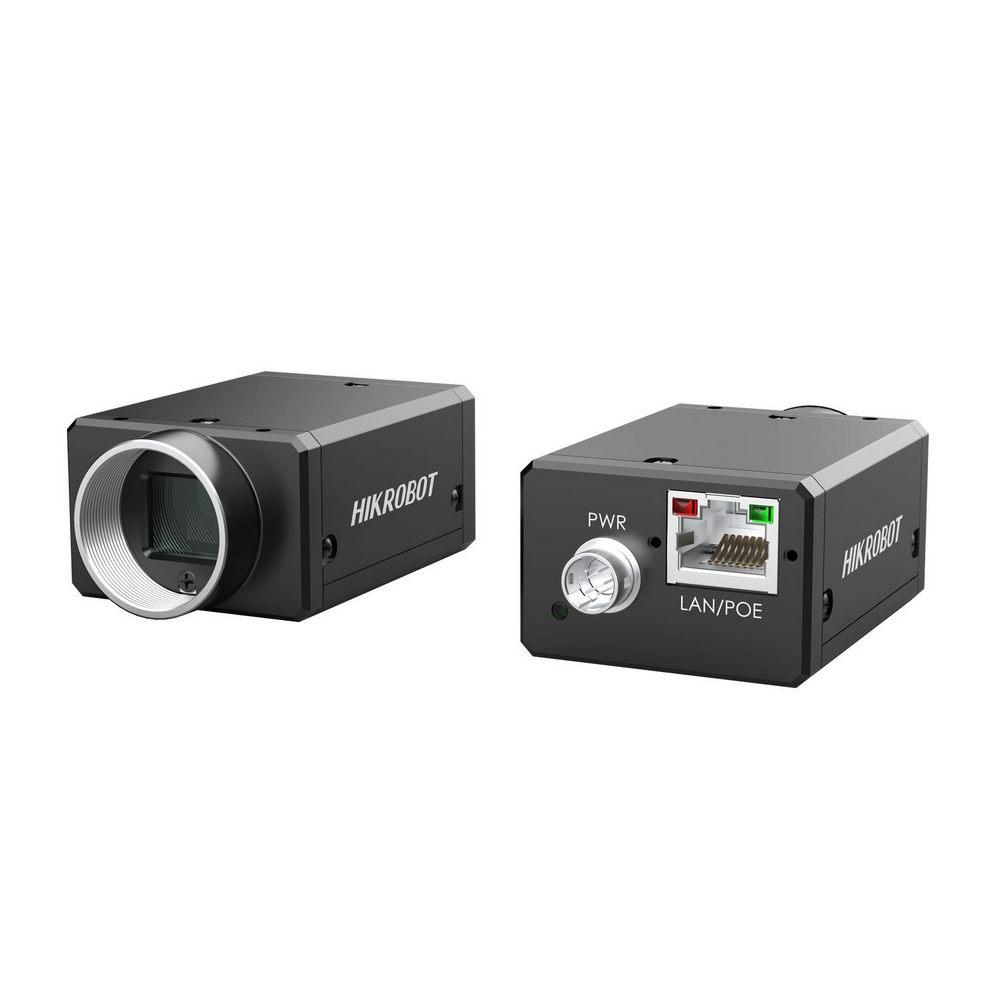

Name: HIKROBOT MV-CH140-60GC :: Machine-Vision камера, Area Scan, CH Series, 3 µm×3 µm, 9 fps @ 4708×2824 Bayer GR 8, C-Mount, цветна, Gigabit
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа автоматично или ръчно регулиране на усилване, време на експозиция, баланс на бялото, LUT, корекция на гама и др.
GigE интерфейс и максимално разстояние на предаване от 100 метра
Съвместимост с GigE Vision V2.0 протокол, GenlCam стандарт и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CH140-60GC
Model	Type	14MP Area Scan Camera, GigE, Color
Performance	Sensor type	CMOS, global shutter
	Sensor model	BSI
	Pixel size	3 µm × 3 µm
	Sensor size	1"
	Resolution	4708 × 2824
	Max. frame rate	9 fps @4708 × 2824 Bayer GR 8
	Dynamic range	56.9 dB
	SNR	41.9 dB
	Gain	0 dB to 24 dB
	Exposure time	80 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Mono 8/10/12, Bayer GR 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed,RGB 8, BGR 8
	Binning	Supports 1 × 1, 2 × 2
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	GigE
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 3.5 W@12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
	Weight	Approx. 117 g (0.3 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -10 °C to 50 °C (14 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenlCam
	Certification	CE, RoHS, KC
