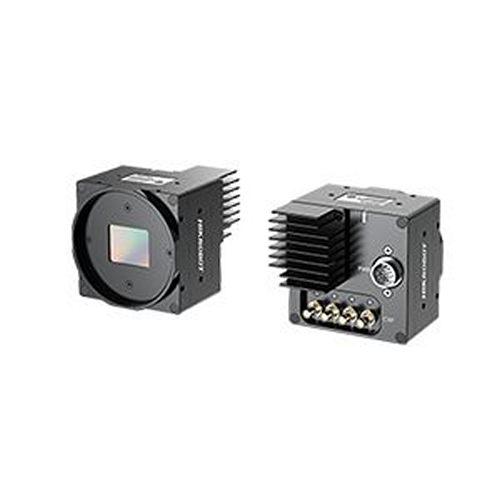

Name: HIKROBOT MV-CH120-40XM-M58S-NN :: Machine-Vision камера, Area Scan, CH Series, 188 fps @4096×3072 Mono 8, 5.5 μm, C-Mount, CoaXPress, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 4096 × 3072, pixel size 5.5 µm × 5.5 µm
Използва global shutter CMOS сензор, осигуряващ високо съотношение сигнал/шум, широк динамичен диапазон и висококачествени изображения
Поддържа LSC Sequencer Polling
CXP-6 интерфейс за предаване на данни
Съвместимост с CoaXPress Protocol и GenlCam Standard

Model	Product Model	MV-CH120-40XM
Model	Type	12MP Area Scan Camera, CXP-6, CMV12000
Performance	Sensor type	CMOS, global shutter
	Sensor model	CMV12000
	Pixel size	5.5 µm × 5.5 µm
	Sensor size	22.5 mm × 16.9 mm
	Resolution	4096 × 3072
	Max. frame rate	188 fps @4096 × 3072 Mono 8
	Dynamic range	55.2 dB
	SNR	39.5 dB
	Gain	Supports 1.0 ×, 2.0 ×, 3.0 ×, 4.0 ×
	Exposure time	20 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	CoaXPress
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
	Power supply	12 VDC to 24 VDC, CXP-1 and CXP-2 support PoCXP
	Power consumption	Typ. 11.6 W@12 VDC
Mechanical	Lens mount	M58*0.75, flange focal length 11.48 mm (0.5")
	Dimension	60 mm × 60 mm × 59 mm (2.4" × 2.4" × 2.3")
	Weight	TBD
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 32 °C (32 °F to 89.6 °F)Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or frame grabber software meeting with CoaXPress Protocol
	Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux, 64-bit MacOS
	Compatibility	CoaXPress, GenlCam
	Certification	CE, RoHS, KC
