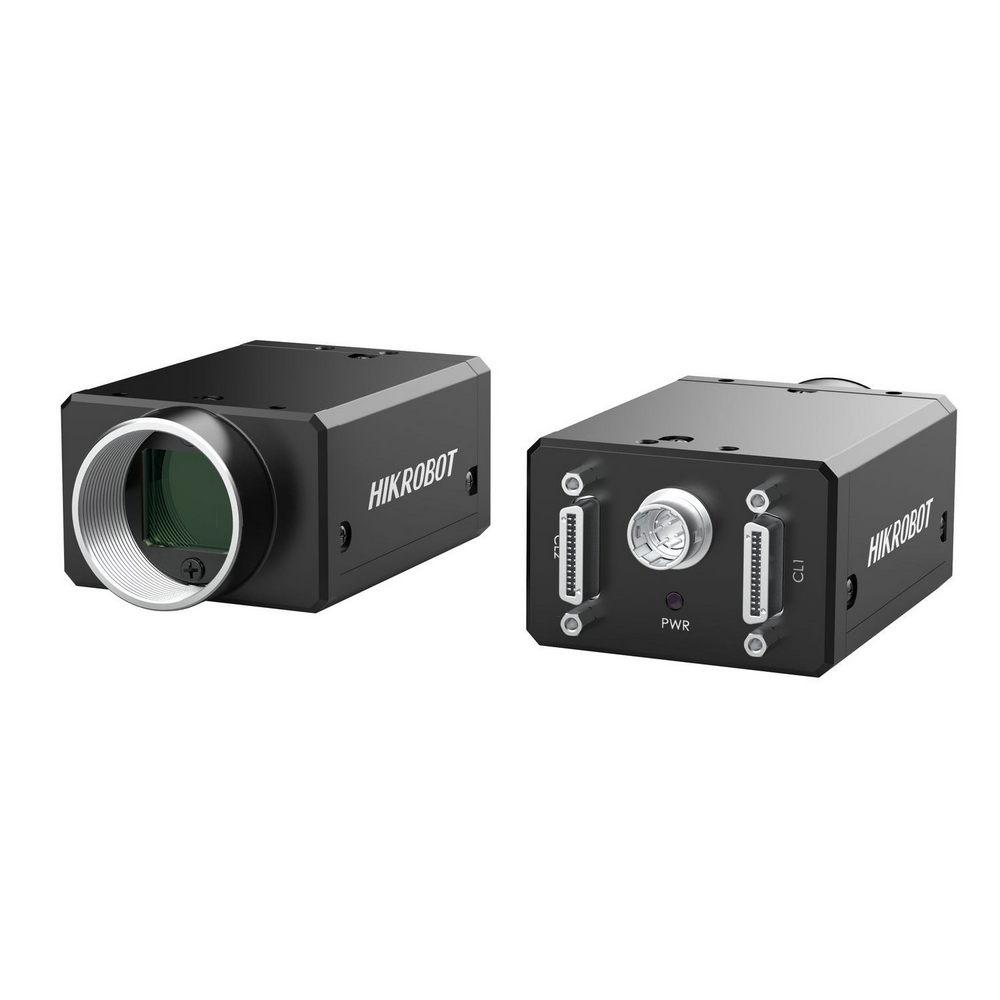

Name: HIKROBOT MV-CH120-10CC :: Machine-Vision камера, Area Scan, CH Series, 3.45 μm, 68.1 fps @ 3840×3000, C-Mount, Camera Link, цветна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Използва global shutter CMOS сензор, осигуряващ широк динамичен диапазон и висококачествени изображения
Поддържа режими на конфигуриране Base, Medium, Full и 80-bit чрез интерфейса Camera Link
Компактен дизайн с монтажни отвори за гъвкаво закрепване
Съвместим с Camera Link V2.0 Protocol, GenICam Standard и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CH120-10CC
Model	Type	12MP Area Scan Camera, Camera Link, IMX253, Color
Performance	Sensor type	CMOS, global shutter
	Sensor model	IMX253
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	1.1"
	Resolution	3840 × 3000
	Max. frame rate	68.1 fps @3840 × 3000
	Configuration mode	Base, Medium, Full, 80-bit
	Tap geometry	1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y
	Tap number	1 Tap, 2 Taps, 4 Taps, 8 Taps, 10 Taps
	Pixel clock	40 MHz, 60 MHz, 70 MHz, 85 MHz
	Dynamic range	71.6 dB
	SNR	39.7 dB
	Gain	0 dB to 24 dB
	Exposure time	1 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Bayer RG 8/10/12, RGB 8
	Binning	Not support
	Decimation	Not support
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	Camera Link
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC
	Power consumption	Typ. 4.5 W@12 VDC
Mechanical	Lens mount	C-mount
	Dimension	44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3")
	Weight	Approx. 100 g (0.2 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS or frame grabber software meeting with GenlCam Protocol
	Operating system	32/64-bit Windows XP/7/10
	Compatibility	Camera Link V2.0, GenlCam
	Certification	CE, RoHS, KC
