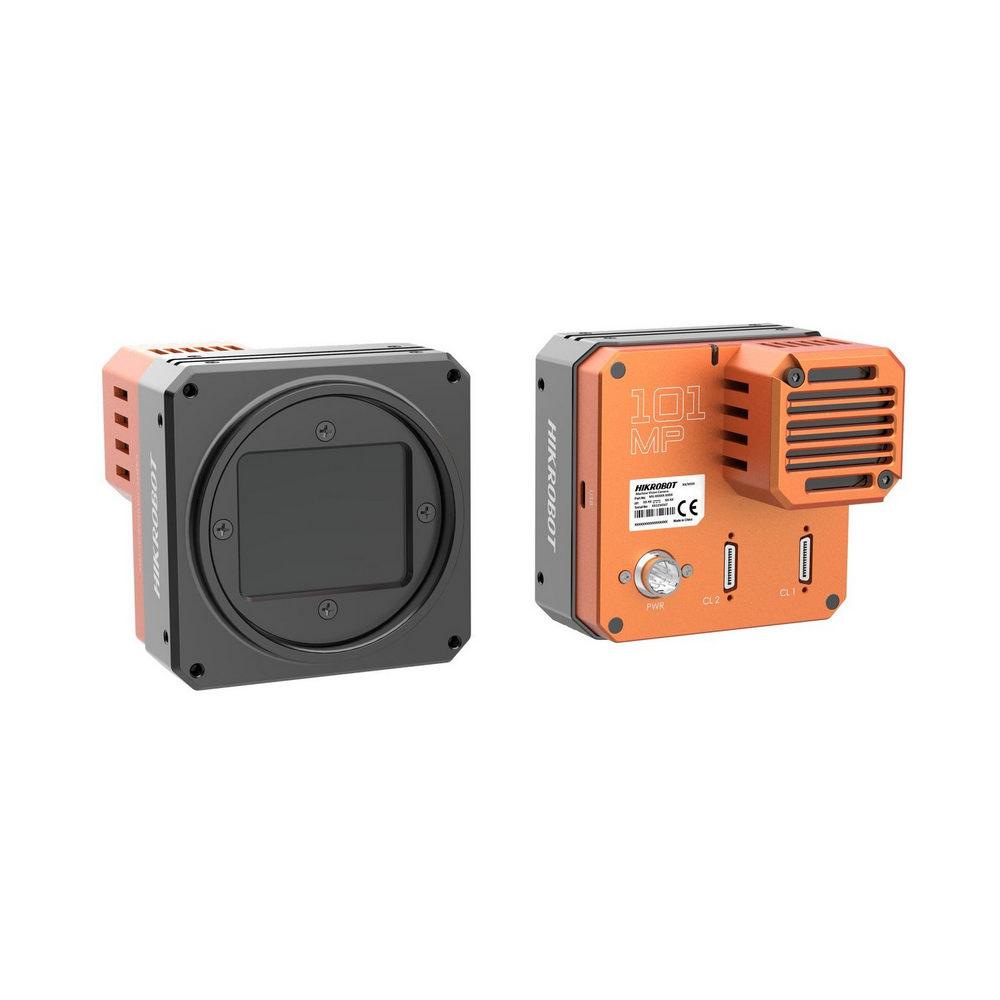

Name: HIKROBOT MV-CH1010-10CM-M72-NF :: Machine-Vision камера, Area Scan, CH Series, 3.76 μm, 8.1 fps @ 11648×8740, Camera Link, M72*0.75, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа автоматично или ръчно регулиране на усилването и времето на експозиция, и ръчно регулиране на LUT и гама корекция
Поддържа функция за корекция FFC
Поддържа 16-битов ADC изход с висока точност на събиране на данни и широк динамичен диапазон
Осигурява камера с вентилатор или TEC, за да отговаря на различните изисквания за работна температура
Поддържа режими на конфигуриране Base, Medium, Full и 80-bit чрез интерфейса Camera Link
Съвместим с Camera Link V2.0 Protocol, GenICam Standard и софтуера на frame grabber, съвместим с GenICam Protocol

Model	Product Model	MV-CH1010-10CM-M72-NF
Model	Type	101MP Area Scan Camera, Camera Link, IMX461, Mono, M72-mount, with fan
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	IMX461
	Pixel size	3.76 μm × 3.76 μm
	Sensor size	55 mm
	Resolution	11648 × 8740
	Max. frame rate	8.1 fps @11648 × 8740
	Configuration mode	Base, Medium, Full, 80-bit
	Tap geometry	2X_1Y, 4X_1Y, 8X_1Y, 10X_1Y
	Tap number	2 Taps, 4 Taps, 8 Taps, 10 Taps
	Pixel clock	40 MHz, 60 MHz, 70 MHz, 85 MHz
	Dynamic range	78 dB
	SNR	45 dB
	Gain	0 dB to 36 dB
	Exposure time	14 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode, supports Global Reset
	Mono/color	Mono
	Pixel format	ADC 12-bit mode: Mono 8/10/12; ADC 16-bit mode: Mono 8/10/12/16
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
Electrical feature	Data interface	Camera Link
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.Camera Link interface provides I/O (CC1/CC2/CC3/CC4)
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 14 W@24 VDC
Mechanical	Lens mount	M72*0.75, flange back focal length 19.55 mm (0.8")
	Dimension	90 mm × 90 mm × 71.5 mm (3.5" × 3.5" × 2.8")
	Weight	Approx. 790 g (1.7 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or frame grabber software meeting with GenlCam Protocol
	Operating system	32/64-bit Windows XP/7/10
	Compatibility	Camera Link V2.0, GenlCam
	Certification	CE, RoHS, KC
