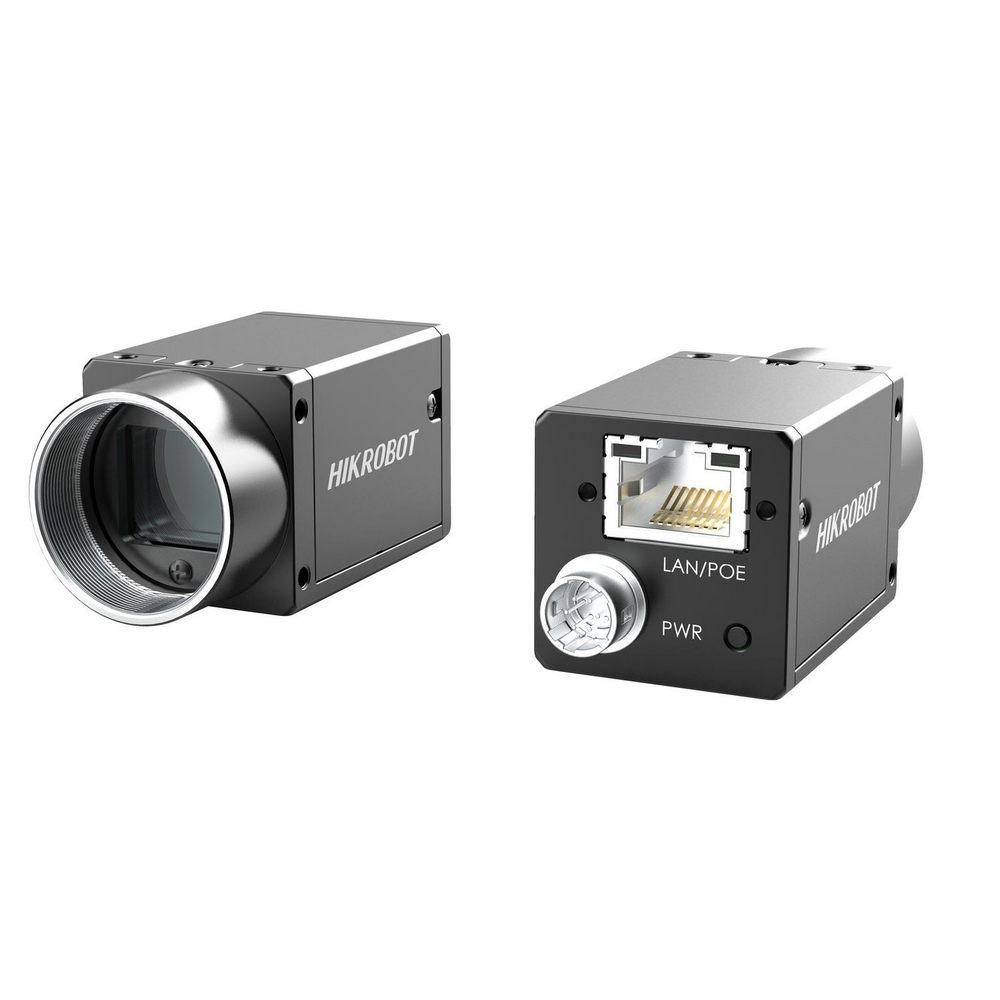

Name: HIKROBOT MV-CH089-10GM :: Machine-Vision камера, Area Scan, CH Series, 13.7 fps @ 4096×2160 Mono 8, 3.45 μm, C-Mount, Gigabit, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа LSC, Sequencer, пасивно предаване и др.
Поддържа Super Bayer, Super Palette и др.
Компактен дизайн с монтажни отвори на панелите за гъвкав монтаж от 4 страни
GigE интерфейс и максимално разстояние на предаване от 100 метра
Поддържа хардуерен и софтуерен тригер, свободно движение и др.
Съвместим с GigE Vision Protocol V2.0, GenICam Standard и софтуер на трети страни, базиран на този протокол и стандарт

Model	Product Model	MV-CH089-10GM
Model	Type	8.9MP Area Scan Camera, GigE, IMX267, Mono, V4
Performance	Sensor type	CMOS, global shutter
	Sensor model	IMX267
	Pixel size	3.45 µm × 3.45 µm
	Sensor size	1"
	Resolution	4096 × 2160
	Max. frame rate	13.7 fps @4096 × 2160 Mono 8
	Dynamic range	70.8 dB
	SNR	39.8 dB
	Gain	0 dB to 24 dB
	Exposure time	UltraShort exposure mode: 1 μs to 14 μsStandard exposure mode: 15 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	GigE
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 2.3 W@12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
	Weight	100 g (0.2 lb.)
	Ingress protection	IP 40 (under proper lens installation and wiring)
	Temperature	Working temperature: -10 °C to 50 °C (14 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision 2.0, GenlCam
	Certification	CE, RoHS, KC
