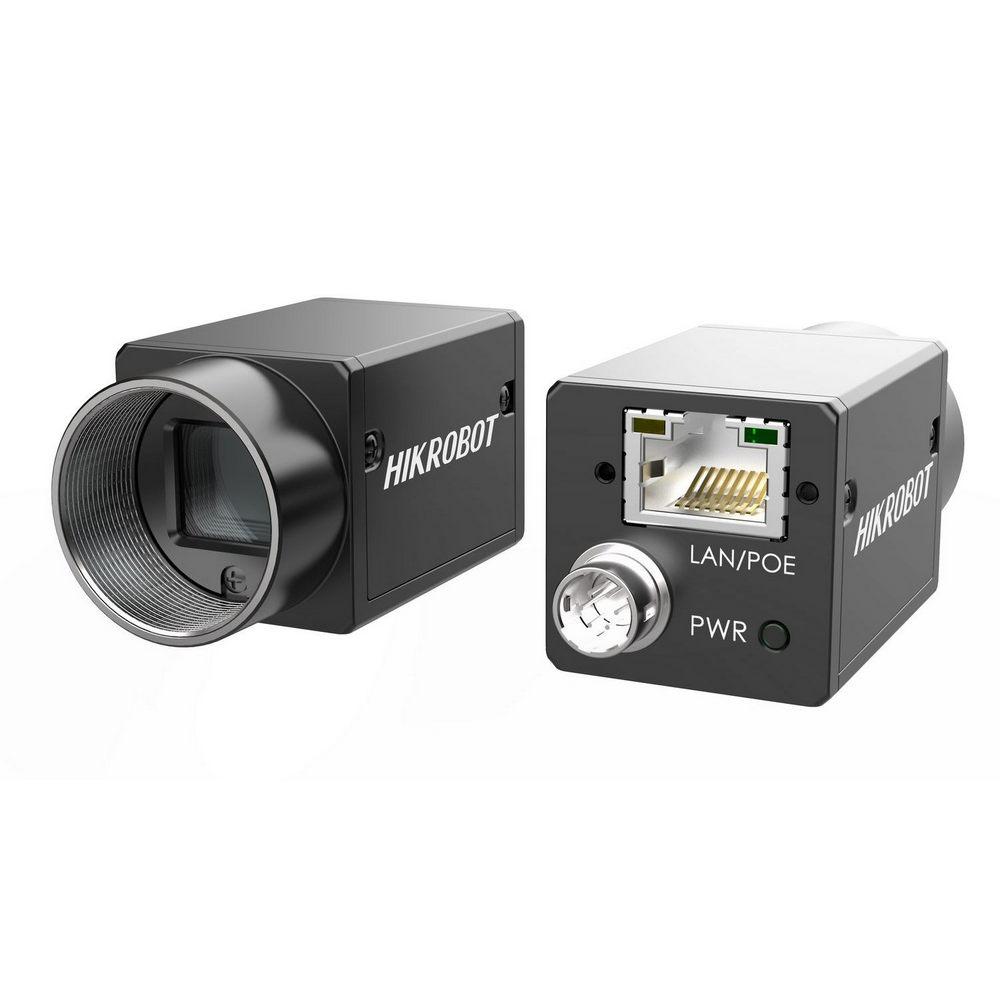

Name: HIKROBOT MV-CE050-31GC :: Machine-Vision камера, Area Scan, CE Series, 2.2 µm, 24 fps @ 2592×1944, C-Mount, цветна, Gigabit
Brand: HIKROBOT
Availability: OutOfStock

Описание

GigE интерфейс и максимално разстояние на предаване от 100 метра
До 128 MB локална памет за пакетно предаване и повторно предаване
Поддържа корекция за време на експозиция, усилване, таблица за търсене (LUT), гама корекция и др.
Поддържа хардуерен тригер, софтуерен тригер и др.
Съвместимост с GigE Vision V2.0 протокол, GenlCam стандарт и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CE050-31GC
Model	Type	5MP Area Scan Camera, GigE,AR0521,Color
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	AR0521
	Pixel size	2.2 µm × 2.2 µm
	Sensor size	1/2.5"
	Resolution	2592 × 1944
	Max. frame rate	24 fps @2592 × 1944
	Dynamic range	63 dB
	SNR	37 dB
	Gain	0 dB to 23 dB
	Exposure time	21 μs to 1 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Mono 8/10/12, Bayer GB 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, BGR 8, RGB 8
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
	Image buffer	128 MB
Electrical feature	Data interface	GigE
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 2.4 W@12 VDC
Mechanical	Lens mount	C-Mount
	Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
	Weight	Approx. 68 g (0.15 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenlCam
	Certification	CE, FCC, RoHS, KC
