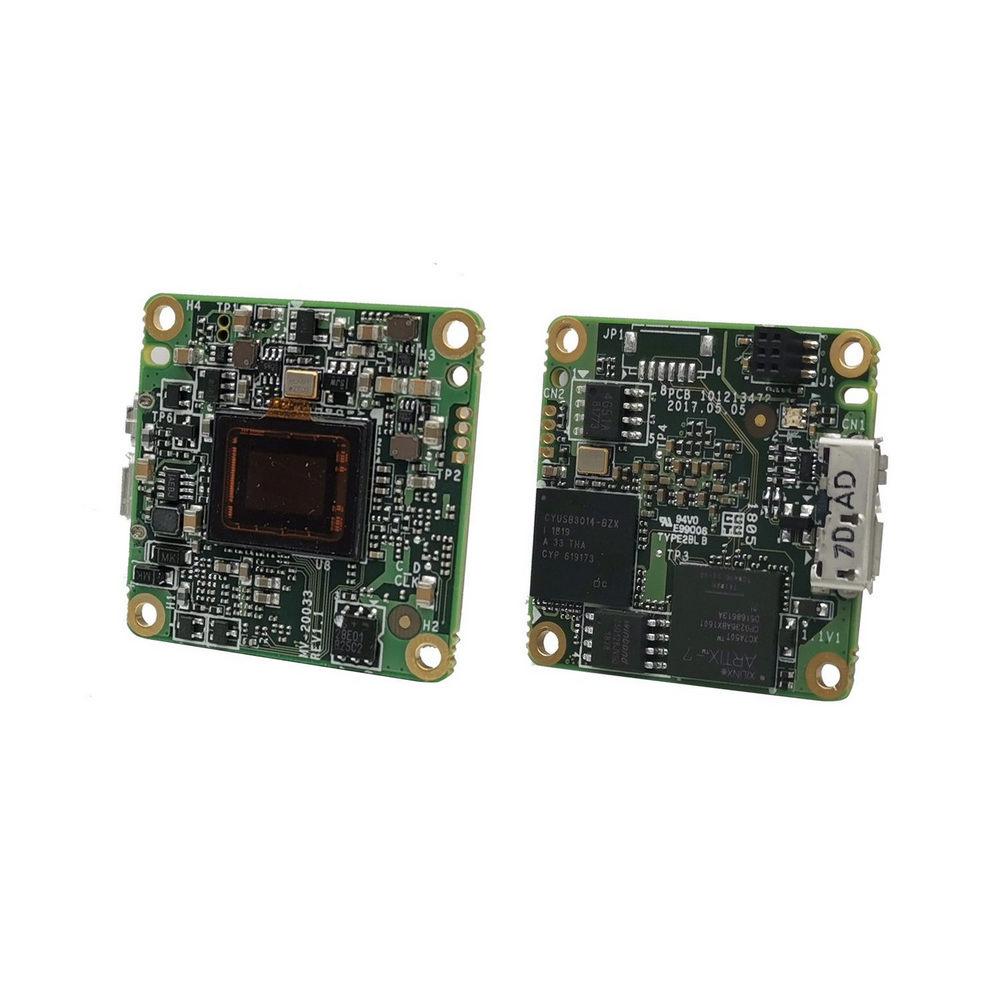

Name: HIKROBOT MV-CB120-10UC-S :: Machine-Vision камера, Board Level, CB Series, 1.85 μm, 21 fps @ 4032×3036, цветна, M12-mount, USB 3.0
Brand: HIKROBOT
Availability: OutOfStock

Описание

Компактен дизайн за гъвкава инсталация
Поддържа автоматично и ръчно регулиране на усилването, контрола на експозицията, баланса на бялото, LUT и др.
Алгоритъм за интерполация на изображения за цветна камера, за по-добра корекция на цветовете
Захранване и пренос на данни чрез USB 3.0 интерфейс
Съвместим с USB3 Vision Protocol, GenICam стандарт и софтуер на трети страни, базиран на тези протоколи и стандарти

Model	Product Model	MV-CB120-10UC-S
Model	Type	12MP Board Level Camera, USB3,MX226,Color,M12-mount
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	IMX226
	Pixel size	1.85 µm × 1.85 µm
	Sensor size	1/1.7"
	Resolution	4032 × 3036
	Max. frame rate	21 fps @4032 × 3036
	Dynamic range	70.5 dB
	SNR	40.5 dB
	Gain	0 dB to 20 dB
	Exposure time	23 μs to 2 sec
	Exposure mode	Supports Off/ Once/ Continuous exposure mode, and Global Reset.
	Mono/color	Color
	Pixel format	Mono8/10/12, Bayer RG 8/10/10p/12/12pYUV 422 Packed, YUV422_YUYV_Packed, RGB 8
	Binning	Not support
	Decimation	Not support
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB3.0
	Digital I/O	Bi-directional non-isolated I/O x 2 (Line 1, Line 2)
	Power supply	USB3.0 power supply
	Power consumption	Typ. 2.45 W@5 VDC
Mechanical	Lens mount	M12-mount camera: M12-mount
	Dimension	M12-mount camera: 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3")
	Weight	M12-mount camera: Approx. 30 g (0.07 lb.)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS or third-party software with USB3 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux
	Compatibility	USB3 Vision, GenICam
	Certification	CE, FCC, RoHS, KC
