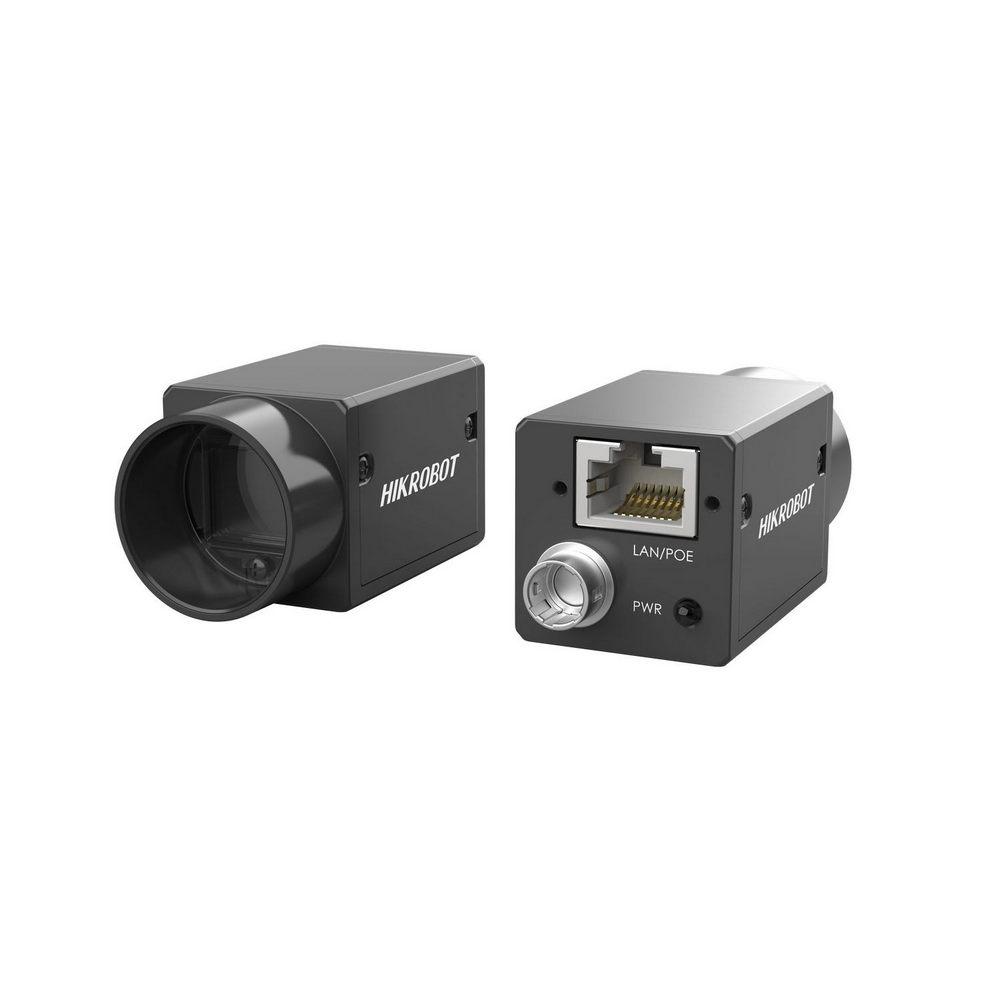

Name: HIKROBOT MV-CA060-11GM :: Machine-Vision камера, Area Scan, CA Series, 17 fps @ 3072×2048, 2.4 μm, C-Mount, Gigabit, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

GigE интерфейс и максимално разстояние на предаване от 100 метра
До 128 MB локална памет за пакетно предаване и повторно предаване
Поддържа корекция за време на експозиция, усилване, таблица за търсене (LUT), гама корекция и др.
Поддържа хардуерен тригер, софтуерен тригер и др.
Съвместим с GigE Vision Protocol V2.0, GenICam Standard и софтуер на трети страни, базиран на този протокол и стандарт

Model	Product Model	MV-CA060-11GM
Model	Type	6MP Area Scan Camera, GigE,IMX178,Mono
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	IMX178
	Pixel size	2.4 μm × 2.4 μm
	Sensor size	1/1.8"
	Resolution	3072 × 2048
	Max. frame rate	17 fps @3072 × 2048
	Dynamic range	71.3 dB
	SNR	41.3 dB
	Gain	0 dB to 20 dB
	Exposure time	27 μs to 2.5 sec
	Exposure mode	Off/Once/Continuous exposure mode, supports Global Reset
	Mono/color	Mono
	Pixel format	Mono 8/10/10p/12/12p
	Binning	Supports 1 × 1, 2 × 2
	Decimation	Not support
	Reverse image	Supports horizontal and vertical reverse image output
	Image buffer	128 MB
Electrical feature	Data interface	GigE
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	12 VDC, supports PoE
	Power consumption	Typ. 2.5 W@12 VDC
Mechanical	Lens mount	C-Mount
	Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
	Weight	Approx. 68 g (0.15 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenlCam
	Certification	CE, RoHS, KC
