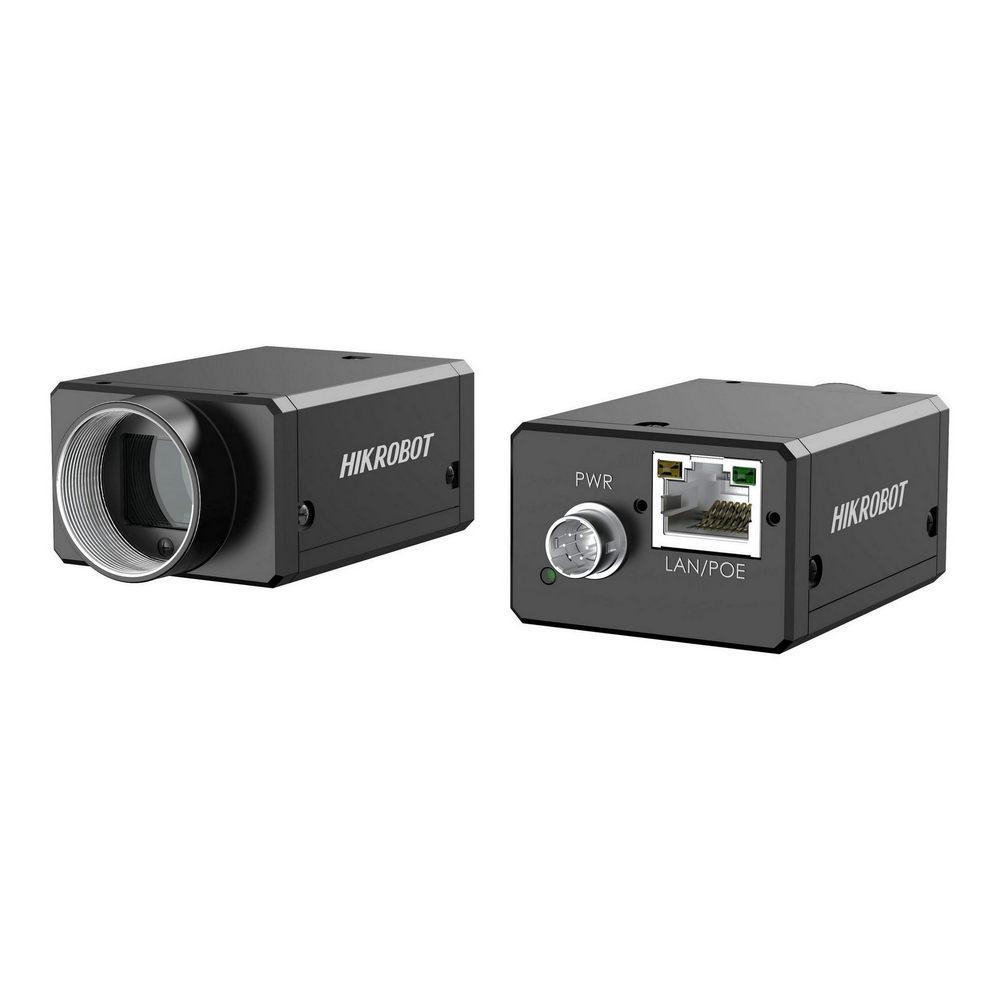

Name: HIKROBOT MV-CA017-10GM :: Machine-Vision камера, Area Scan, CA Series, 68.5 fps @ 1608×1104, 9 μm, C-Mount, Gigabit, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа автоматично или ръчно регулиране на усилването и времето на експозиция, LUT, гама корекция, баланс на бялото
2D noise reduction функция
Поддържа режим на висока чувствителност и high full well режим
GigE интерфейс и максимално разстояние на предаване от 100 метра
Съвместимост с GigE Vision V2.0 протокол, GenlCam стандарт и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CA017-10GM
Model	Type	1.7MP Area Scan Camera, GigE,IMX432,Mono
Performance	Sensor type	CMOS, global shutter
	Sensor model	IMX432
	Pixel size	9 μm × 9 μm
	Sensor size	1.1"
	Resolution	1608 × 1104
	Max. frame rate	68.5 fps @1608 × 1104
	Dynamic range	72.44 dB
	SNR	40 dB
	Gain	0 dB to 24 dB
	Exposure time	UltraShort exposure mode: 1 μs to 5 μsStandard exposure mode: 6 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10p/12/12p
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	GigE
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	12 VDC, supports PoE
	Power consumption	Typ. 4.2 W@12 VDC
Mechanical	Lens mount	C-Mount
	Dimension	29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
	Weight	Approx. 100 g (0.22 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, FCC, RoHS, KC
