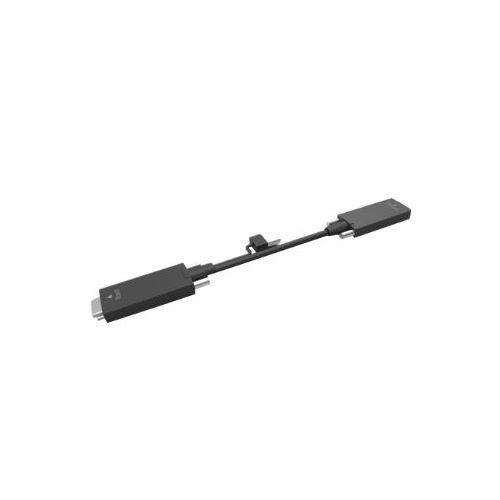

Name: HIKROBOT MV-ACCL-SDR-SDR-AOC-20m-Full :: Data кабел, AOC Fiber, Camera Link, Full Cable, Moveable, SDR to SDR, 20.0 м
Brand: HIKROBOT
Availability: OutOfStock

Описание

Camera Link оптичен кабел, може да се използва за предаване на данни между камери с Camera Link интерфейс и се предлага в различни дължини

Model	Model	MV-ACCL-SDR-SDR-AOC-20m-Full
Model	Name	Cameralink AOC Fiber Optic Data Cable
Physical Specifications	A-End Interface	SDR26
	B-End Interface	SDR26 (Board-End, with Type A USB3.0 Power Connector)
	Wire Harness Diameter	5.6 ± 0.2 mm
	Length	20m
	Cable Structure	Fiber2C+(37/0.1)1C+AL+B
	Coating Material	TPU
	Cable Color	Black
	Connector Durability	1000 Insertion and Removal Cycles
	Minimum Bending Radius	When Installed: 100 mm When Used: 67.2 mm
	Allowable Tensile Force	When Installed: 300 N When Used: 150 N
	Allowable Crush Force	Long-term 200 N/100 mm Short term 350 N/100 mm
	Applicable scenarios	Drag chain
	Drag chain (U-shaped) sliding cycle number	5 million times
Electrical specifications	Power supply	5 V-600 mA
Other information	Operating temperature	0°C ~ 70°C
Other information	Packaging	Individual packaging bag + paper box
