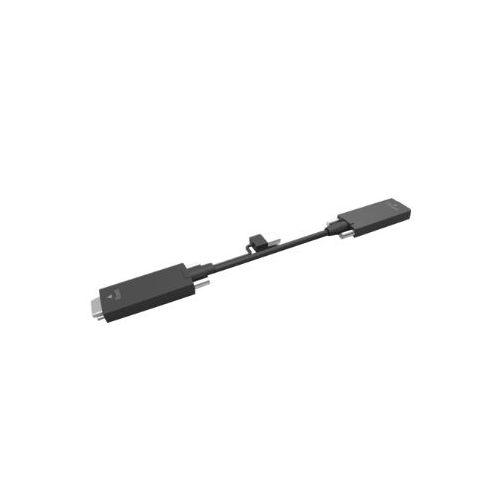

- Camera Link оптичен кабел, може да се използва за предаване на данни между камери с Camera Link интерфейс и се предлага в различни дължини
| Model | Model | MV-ACCL-SDR-SDR-AOC-10m-Full |
| Name | Cameralink AOC Fiber Optic Data Cable | |
| Physical Specifications | A-End Interface | SDR26 |
| B-End Interface | SDR26 (Board-End, with Type A USB3.0 Power Connector) | |
| Wire Harness Diameter | 5.6 ± 0.2 mm | |
| Length | 10m | |
| Cable Structure | Fiber*2C+(37/0.1)*1C+AL+B | |
| Coating Material | TPU | |
| Cable Color | Black | |
| Connector Durability | 1000 Insertion and Removal Cycles | |
| Minimum Bending Radius | When Installed: 100 mm When Used: 67.2 mm | |
| Allowable Tensile Force | When Installed: 300 N When Used: 150 N | |
| Allowable Crush Force | Long-term 200 N/100 mm Short term 350 N/100 mm | |
| Applicable scenarios | Drag chain | |
| Drag chain (U-shaped) sliding cycle number | 5 million times | |
| Electrical specifications | Power supply | 5 V-600 mA |
| Other information | Operating temperature | 0°C ~ 70°C |
| Packaging | Individual packaging bag + paper box |
-
