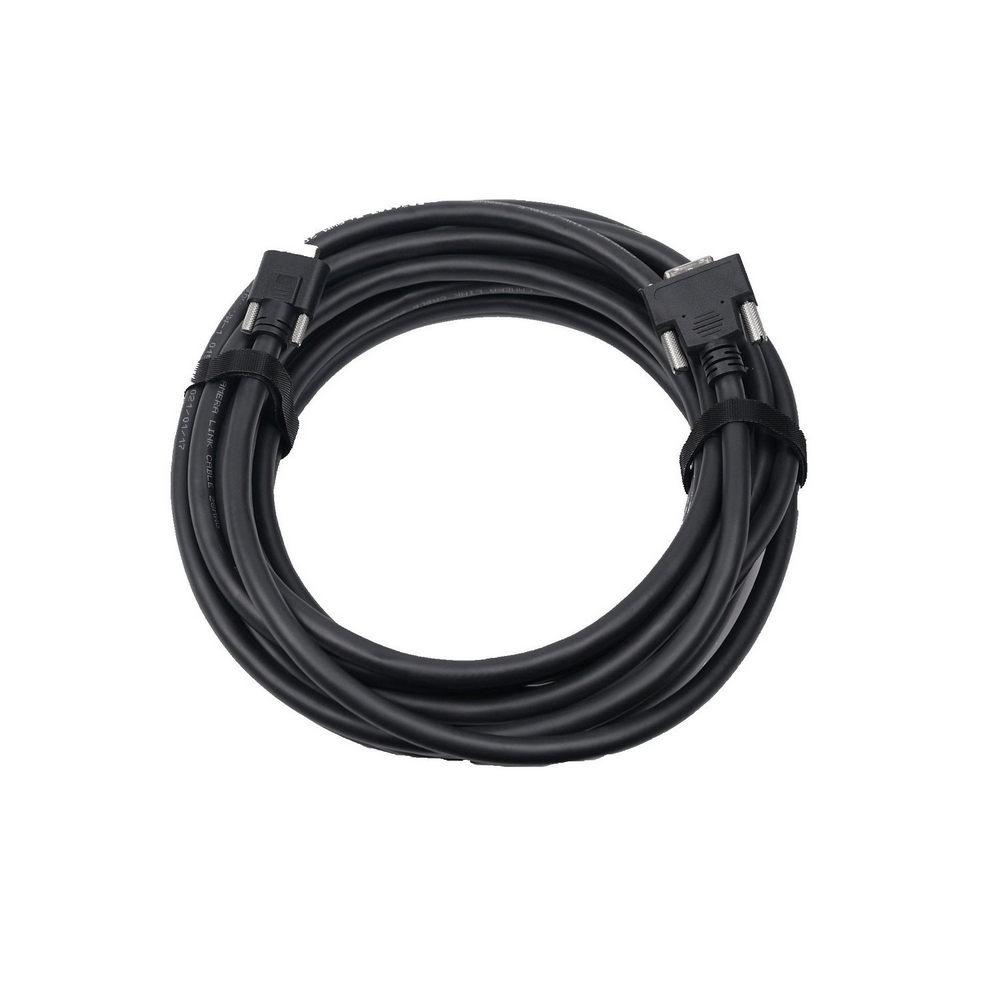

» HIKROBOT MV-ACCL-SDR-MDR-HF-3m :: Data кабел, Camera Link, Flexible, Moveable, S2M, 3.0 м
HIKROBOT MV-ACCL-SDR-MDR-HF-3m :: Data кабел, Camera Link, Flexible, Moveable, S2M, 3.0 м
id s4535619
- Марка: HIKROBOT
- Наличност: Не е наличен
Описание- Camera Link гъвкав кабел, може да се използва за предаване на данни на камери с Camera Link интерфейс и се предлага в различни дължини
| Model | Product Model | MV-ACCL-SDR-MDR-HF-3m |
| Type | Camera Link cable(SDR-MDR)，high flex，3m |
| Physical specification | End A connector | SDR26 |
| End B connector | MDR26 |
| Cable diameter | 9.5 mm |
| Length | 3 m |
| Cable mechanical | UL20276 |
| Jacket | PVC |
| Cable color | Black |
| Connector model | made in China |
| Connector durability | 500 cycles |
| Min. bending radius | 114 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 5 million times |
| Electrical specification | Max. voltage | 30 VDC |
| Additional information | Working temperature | -20°C~80°C |
| Certification | UL |
| Packaging | Individual package |
