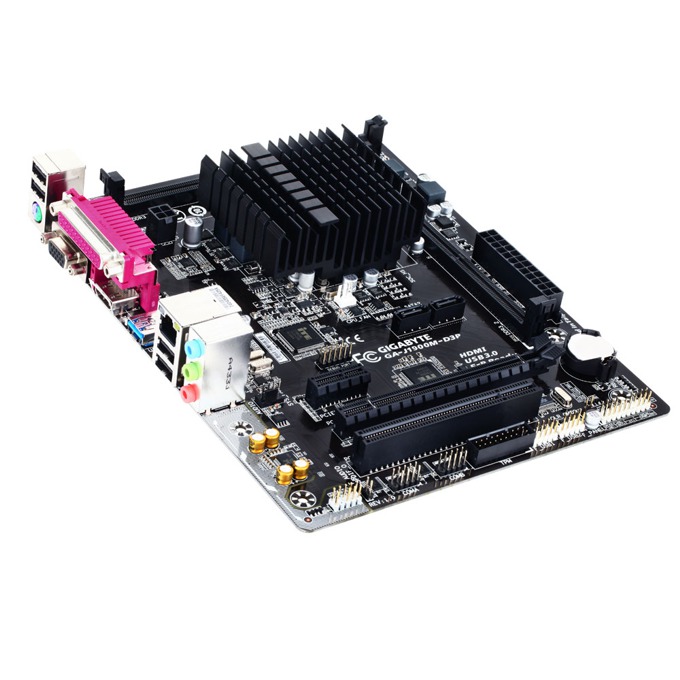

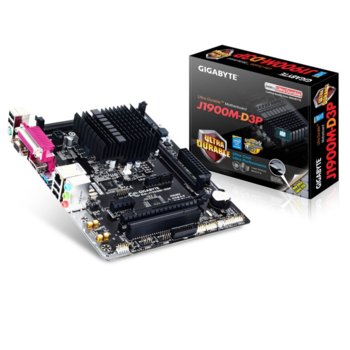

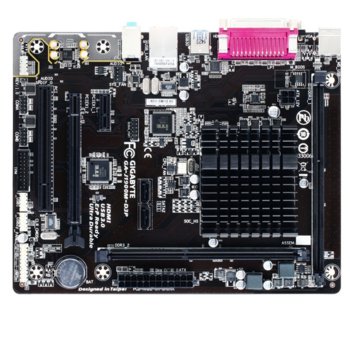

Дънна платка Gigayte GA-J1900M-D3P, вграден четири-ядрен Celeron J1900 2/2.41GHz, PCI-E (HDMI, D-Sub), поддържа 2x DDR3/L, Lan1000, 2x SATA 3Gb/s, USB 3.0, micro ATX

GA-J1900M-D3P (rev. 1.0)

- Built-in Intel® Celeron™ J1900 (2.0 GHz) Quad-Core processor
- GIGABYTE Ultra Durable™ Technology
-Dual channel DDR3/-L UDIMM slot support
- Audio Noise Guard with High Quality Audio Capacitors
- All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
- LAN with high ESD Protection
- HDMI, D-SUB ports on rear panel
- GIGABYTE On/Off Charge™ for USB devices
- PCIe and PCI interface for wide-range expansion card selections

CPU

Built in with an Intel® Quad-Core Celeron® J1900 SoC (2.0 GHz)
* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
2 MB Cache

Memory

2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture
Support for DDR3/-L 1333 MHz memory modules
Support for non-ECC memory modules

(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated in the SoC:

1 x D-Sub port, supporting a maximum resolution of 2560x1600
1 x HDMI port, supporting a maximum resolution of 1920x1080

Audio

Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x1(PCIEX1_2)
1 x PCI Express x1 slot
1 x PCI slot

Storage Interface
Integrated in the SoC:

2 x SATA 3Gb/s connectors

USB Integrated in the SoC:

1 x USB 3.0/2.0 port on the back panel

SoC + GL850 USB 2.0 Hub:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
2 x serial port headersŠŠ
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper

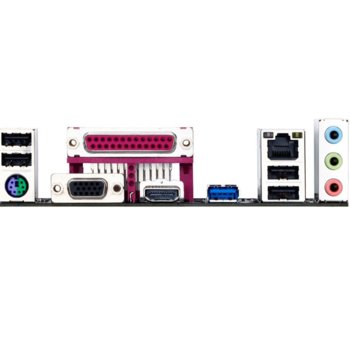

Back Panel Connectors

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
1 x parallel port
1 x USB 3.0/2.0 port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for Xpress Install
Support for @BIOS
Support for APP Center

* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
Support for ON/OFF Charge

Bundle Software

Norton® Internet Security (OEM version)
Intel® Smart Connect Technology

Operating System
Support for Windows 8.1/8/7

Form Factor
Micro ATX Form Factor; 22.6cm x 18.0cm


Remark

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
