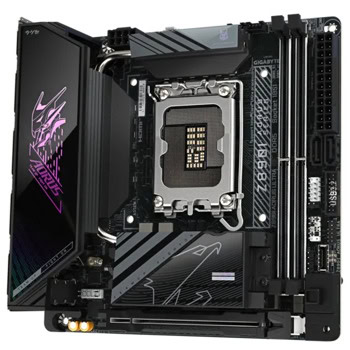

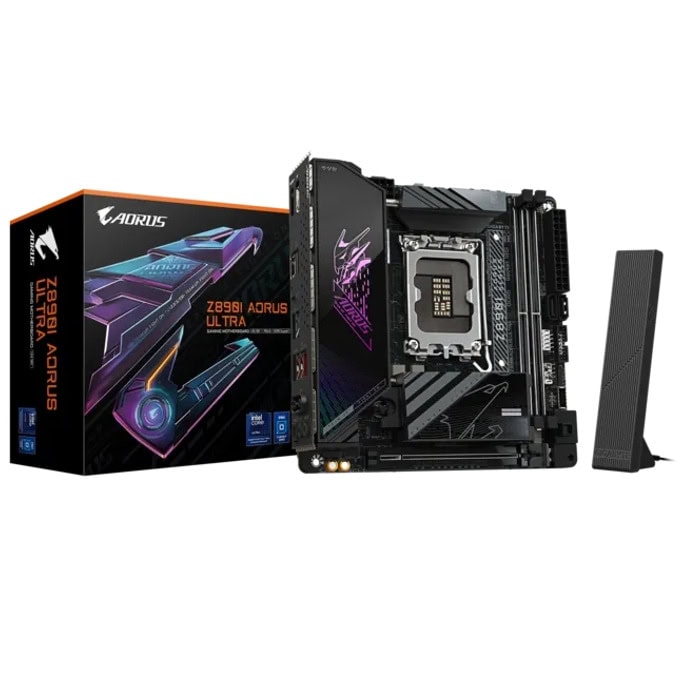

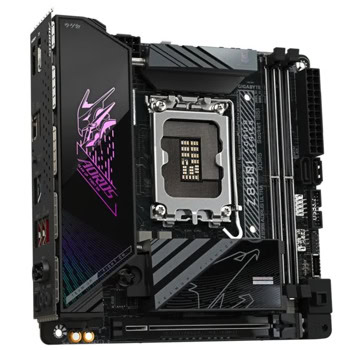

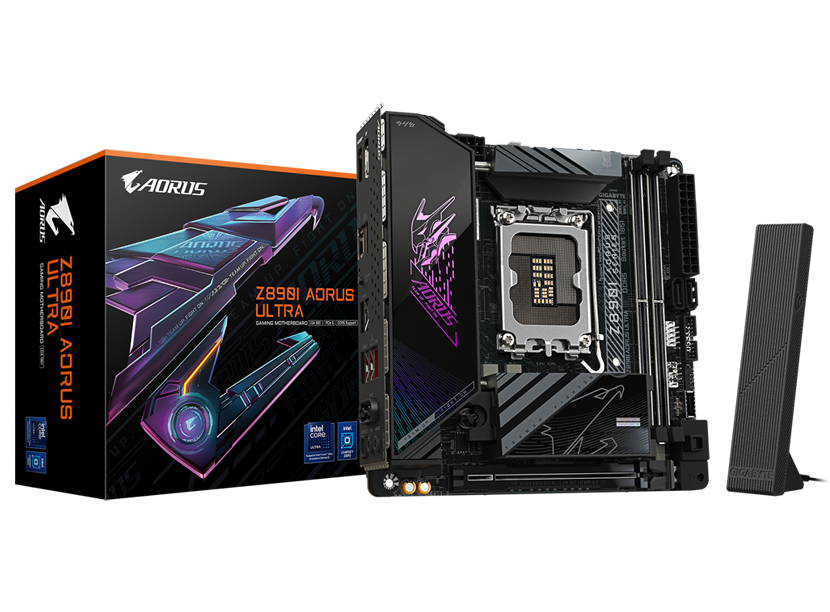

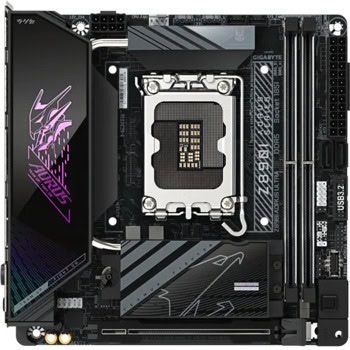

Дънна платка Gigabyte Z890I AORUS ULTRA, Z890, LGA1851, DDR5, PCI-E 5.0 (Thunderbolt&DP&HDMI), 2x SATA 6Gb/s, 2x M.2, 1x USB 3.2 Gen 2x2 Type-C, 2.5GbE LAN, Wi-Fi 7, Bluetooth 5.4, Mini-ITX

Key Features

• Supports Intel® Core™ Ultra processors (Series 2)
• Digital 8+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• Premium Compatibility : 2*DDR5 with XMP Memory Module Support
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases
• Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard Ext.
• Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : THUNDERBOLT™ 4 Type-C with DP-Alt , HDMI , DisplayPort
• PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

• CPU
• LGA1851 socket: Support for Intel® Core™ Ultra Processors
  L3 cache varies with CPU

• Chipset
• Intel® Z890 Express Chipset
• Memory
• Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
  2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate innon-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  Support CUDIMM memory module

• Onboard Graphics

• Integrated Graphics Processor-Intel® HD Graphics support:
  - 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs
  When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
  When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).


  * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6,"Back Panel Connectors," for more information.)
  * Support for DisplayPort 2.1 version and HDCP 2.3


  - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz


  * Support for DisplayPort 2.1 version and HDCP 2.3


  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


  * Support for HDMI 2.1 version and HDCP 2.3.


  (Graphics specifications may vary depending on CPU support.)
  Support for up to triple-display at the same time

• Audio

• Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


  Support for S/PDIF Out

• LAN
• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module

• Intel® Wi-Fi 7 BE202 (BE200NGW M)
  - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.4
  - Support for 11be 160MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)


  * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
  ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

• Expansion Slots

• CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16


  * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

• Storage Interface
• CPU:
  - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  - 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  - 2 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  RAID 0 and RAID 1 support for SATA storage devices
• USB
• CPU:
  - 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
  *Support up to 40Gbps with Thunderbolt devices
  *Support up to 20Gbps with USB4 devices
  *Support up to 10Gbps with USB 3.2 devices

  Chipset:
  - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  - 2 x USB 2.0/1.1 ports available through the internal USB header

  Chipset+USB 3.2 Gen 1 Hub:
  - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  1 x system fan header
  2 x addressable RGB Gen2 LED strip headers
  2 x M.2 Socket 3 connectors
  2 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x speaker header
  1 x USB Type-C® header, with USB 3.2 Gen 2 support
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  1 x reset jumper
  1 x Clear CMOS jumper
• Back Panel Connectors
• 1 x DisplayPort (Note)
  1 x HDMI port (Note)
  1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
  3 x USB 3.2 Gen 2 Type-A ports (red)
  2 x USB 3.2 Gen 1 ports
  1 x Q-Flash Plus button
  1 x RJ-45 port
  2 x antenna connectors (2T2R)
  2 x audio jacks
  1 x optical S/PDIF Out connector

  (Note) Actual support may vary by CPU.
• I/O Controller
• iTE® I/O Controller Chip
• H/W Monitoring

• Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control


  * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.

• BIOS
• 1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features

• Support for GIGABYTE Control Center (GCC)


  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup

• Bundled Software
• Norton® Internet Security (OEM version)
  LAN bandwidth management software
• Operating System
• Support for Windows 11 64-bit
• Form Factor
• Mini-ITX Form Factor; 17.0cm x 17.0cm
