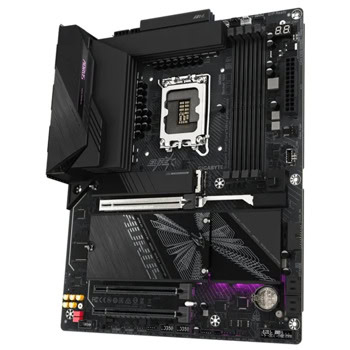

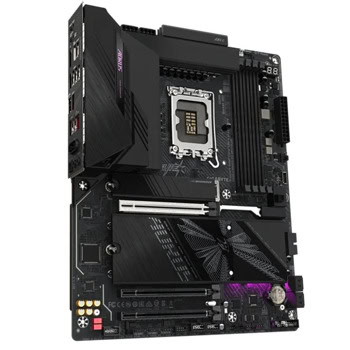

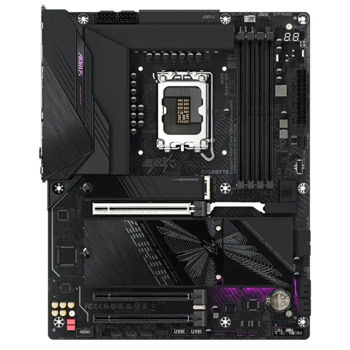

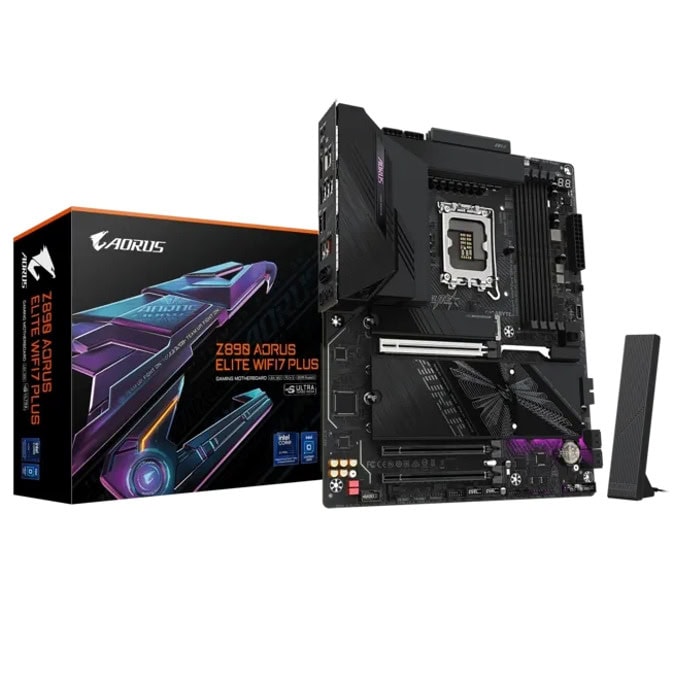

Дънна платка Gigabyte Z890 AORUS ELITE WIFI7 PLUS, Z890, LGA1851, DDR5, PCI-E 5.0 (Thunderbolt&DP), 4x SATA 6Gb/s, 4x M.2, 1x USB 3.2 Gen 2x2 Type-C, 5GbE LAN, Wi-Fi 7, Bluetooth 5.4, ATX

FEATURES

• Ultra Turbo Mode: Unlock the Hidden performance
• Supports Intel® Core™ Ultra processors (Series 2)
• Digital twin 16+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive: Provides optimal and customized BIOS preset profile for users
• Premium Compatibility: 4*DDR5 with XMP Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click: M.2 heatsinks with screwless design
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity: USB4 Type-C with DP-Alt, DisplayPort
• High-Res Audio: ALC1220 & WIMA Audiophile Grade Capacitors

• CPU
• LGA1851 socket: Support for Intel® Core™ Ultra Processors
  L3 cache varies with CPU
• Chipset
• Intel® Z890 Express Chipset
• Memory
• Support up to DDR5 9466+MT/s (OC)
  4 x DDR5 DIMM slots, Dual Channel
  Max. Capacity 256 GB
  Support Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
  Supports Intel® Extreme Memory Profile (XMP) memory module

• Onboard Graphics

• Integrated Graphics Processor-Intel® HD Graphics support:
  - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz


  * Support for DisplayPort 2.1 version.


  - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz


  * Support for DisplayPort 2.1 version.


  (Graphics specifications may vary depending on CPU support.)

• Audio

• Realtek® ALC1220 CODEC


  * The back panel line out jack supports DSD audio.


  High Definition Audio
  2/4/5.1/7.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


  Support for S/PDIF Out

• LAN
• Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module

• Intel® Wi-Fi 7 BE200NGW
  - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.4
  - Support for 11be 320MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)


  * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
  ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
  *** Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

• Expansion Slots

• CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)


  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


  Chipset:
  - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4(PCIEX4_1, PCIEX4_2)

• Storage Interface
• CPU:
  - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
  Chipset:
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  - 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
• USB
• CPU:
  - 1 x USB4® USB Type-C® port on the back panel
  Chipset:
  - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  Chipset+2 USB 2.0 Hubs:
  - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
  2 x 8-pin ATX 12V power connectors
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  3 x system fan headers
  1 x system fan/water cooling pump header
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  4 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 2 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  1 x reset jumper
  1 x Clear CMOS jumper
• Back Panel Connectors
• 1 x power button
  1 x reset button
  1 x Q-Flash Plus button
  1 x Clear CMOS button
  1 x USB4® USB Type-C® port (DisplayPort (Note))
  2 x USB 3.2 Gen 2 Type-A ports (red)
  3 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  2 x antenna connectors (2T2R)
  1 x DisplayPort (Note)
  1 x RJ-45 port
  1 x optical S/PDIF Out connector
  2 x audio jacks

  (Note) Actual support may vary by CPU.
• I/O Controller
• iTE® I/O Controller Chip
• H/W Monitoring

• Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control


  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS
• 1 x 512 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features

• Support for GIGABYTE Control Center (GCC)


  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup

• Bundled Software
• Norton® Internet Security (OEM version)
• Operating System
• Support for Windows 11 64-bit
• Form Factor
• ATX Form Factor; 30.5cm x 24.4cm
