Gigabyte X570 UD
Икона в кампания
Gigabyte X570 UDGigabyte X570 UDGigabyte X570 UDGigabyte X570 UD

Дънна платка Gigabyte X570 UD, X570, AM4, DDR4, PCIe 4.0 (HDMI)(CF), 6x SATA 6GB/s, 2x M.2 socket, 4x USB 3.2 Gen 1, ATX

id 164294 Код: MBAGIGABYTEX570UD
  • Модел: X570 UD
  • Марка: Gigabyte
  • Код на продукта: X570 UD
  • Поддържана памет: DDR4
  • RAID: Да
  • Безжични мрежи: Не
  • Bluetooth: Не
  • Видео слот: PCI-E
  • Multi-Graphics технология: CrossFire
  • Видеокарта: Вградена
  • Гаранция: 36 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси

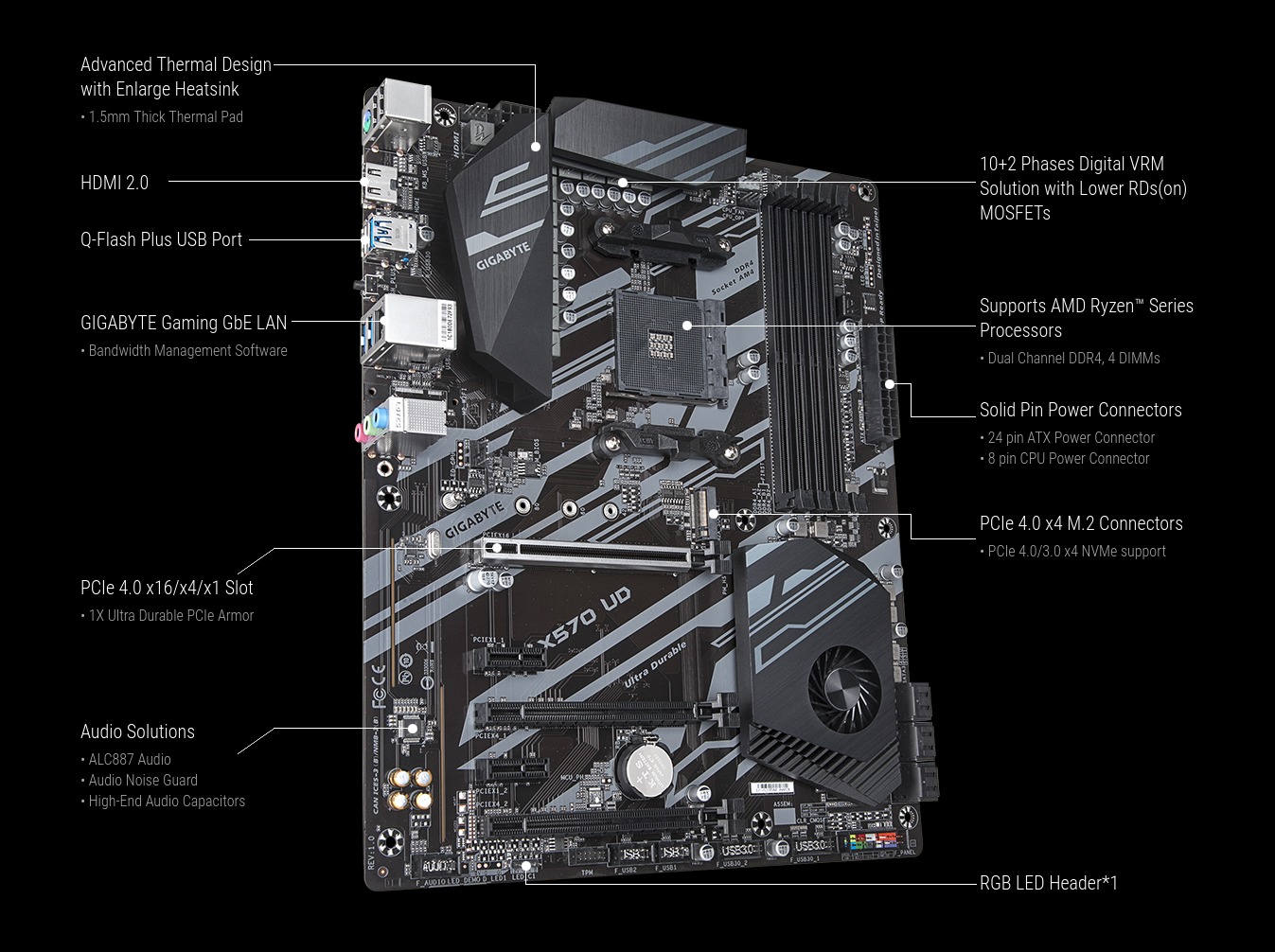

    AMD X570 UD Motherboard with 10+2 Phases Digital VRM, Advanced Thermal Design with Enlarge Heatsink, PCIe 4.0 x4 M.2 Connector, PCIe 4.0 x16 Slot Armor with Ultra Durable™ Design, GIGABYTE Gaming GbE LAN with Bandwidth Management, HDMI 2.0



    • Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors

    • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

    • 10+2 Phases Digital VRM Solution

    • Advanced Thermal Design with Enlarge Heatsink

    • Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connector

    • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality

    • GIGABYTE Gaming GbE LAN with Bandwidth Management

    • Supports RGB Light Strip in Full Colors

    • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

    • Featured HDMI 2.0 support

    • Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card













    CPU

    AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
    (Please refer "CPU Support List" for more information.)



    Chipset

    AMD X570



    Memory

    3rd Generation AMD Ryzen™ processors:
    Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
    4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
    * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)



    Onboard Graphics

    Integrated Graphics Processor:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
    Maximum shared memory of 16 GB

    Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.



    Audio

    Realtek® ALC887 codec
    High Definition Audio
    2/4/5.1-channel



    LAN

    Realtek® GbE LAN chip (10/100/1000 Mbit)



    Expansion Slots

    Integrated in the CPU (PCIEX16):
    · 3rd Generation AMD Ryzen™ processors:
    1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    · 2nd Generation AMD Ryzen™ processors:
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega



    Graphics processors:

    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1)
    2 x PCI Express x16 slots, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
    * For 3rd Generation AMD Ryzen™ processors only.
    2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
    * For 3rd Generation AMD Ryzen™ processors only.



    Multi-Graphics Technology

    Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
    Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.



    Storage Interface

    Integrated in the CPU:
    · 3rd Generation AMD Ryzen™ processors:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
    · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
    Integrated in the Chipset:
    6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, and RAID 10



    USB

    Integrated in the CPU:
    4 x USB 3.2 Gen 1 ports on the back panel



    Chipset:

    4 x USB 3.2 Gen 1 ports available through the internal USB headers
    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)



    Internal I/O Connectors

    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x water cooling CPU fan header
    2 x system fan headers
    1 x RGB LED strip header
    6 x SATA 6Gb/s connectors
    1 x M.2 Socket 3 connector
    1 x front panel header
    1 x front panel audio header
    2 x USB 3.2 Gen 1 headers
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    1 x Clear CMOS jumper



    Back Panel Connectors

    1 x PS/2 keyboard/mouse port
    1 x HDMI port
    4 x USB 3.2 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x Q-Flash Plus button
    1 x RJ-45 port
    3 x audio jacks



    I/O Controller

    iTE® I/O Controller Chip
    H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.



    BIOS

    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



    Unique Features

    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    Smart Keyboard
    Smart Survey
    System Information Viewer
    USB Blocker
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress



    Bundled Software

    Norton® Internet Security (OEM version)
    Realtek® 8118 Gaming LAN Bandwidth Control Utility



    Operating System

    Support for Windows 10 64-bit



    Form Factor

    ATX Form Factor; 30.5cm x 24.4cm







    Виж още Дънни платки за AMD процесори Gigabyte
    Виж всички Дънни платки за AMD процесори в категорията
    Технически характеристики
    Процесор сокет:  AM4
    Чипсет:  X570
    Поддържана памет:  DDR4
    Брой слотове за RAM памет:  4
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Да
    Безжични мрежи:  Не
    Bluetooth:  Не
    Видео слот:  PCI-E
    Multi-Graphics технология:  CrossFire
    Видео изход:  HDMI
    Форм фактор:  ATX
    Видеокарта:  Вградена
