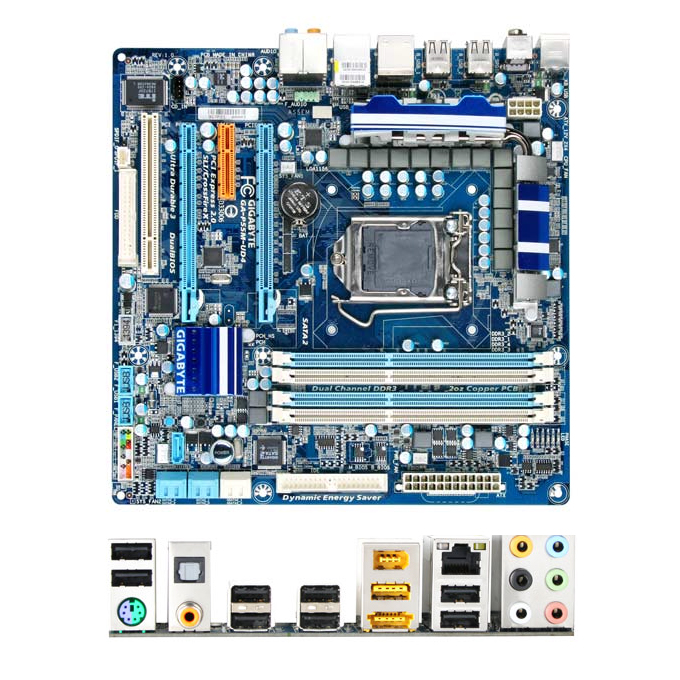

Дънна платка Gigabyte P55M-UD4, P55, LGA1156, DDR3, 2xPCI-E(SLi/CF), Dolby SB7.1, Lan1000, SATA, eSATA, 1394, mATX

GIGABYTE GA-P55M-UD4

• CPU
Support for an Intel Core i7 series processor/Intel Core i5 series processor in the LGA1156 package

• Chipset
Intel P55 Express Chipset

• Memory
4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR3 2200/1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules

• VGA
-

• Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
1 x PCI Express x4 slot
1 x PCI slot

Support for ATI CrossFireX technology / NVIDIA SLI technology

• Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
7 x SATA 3Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x IEEE 1394a header
1 x power button
1 x clearing CMOS button
1 x reset button

• Audio
Realtek ALC889A codec
High Definition Audio
2/4/5.1/7.1-channel
Support for Dolby Home Theater
Support for S/PDIF In/Out
Support for CD In

• LAN
1 x RTL8111D chip (10/100/1000 Mbit)

• Rear Panel I/O Ports
1 x PS/2 keyboard or PS/2 mouse port
1 x coaxial S/PDIF Out connector
1 x optical S/PDIF Out connector
9 x USB 2.0/1.1 ports
1 x eSATA/USB Combo connector
1 x IEEE 1394a port
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)

• BIOS
2x16 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

• Form Factor
micro ATX

• Dimensions
24.4cm x 24.4cm
