Дънна платка Gigabyte J1800N-D2P, вграден двуядрен Celeron J1800 2.41/2.58GHz, So-DiMM DDR3/L, HDMI, 2x SATA2, SB7.1, Lan1000, USB 3.0, Mini-ITX

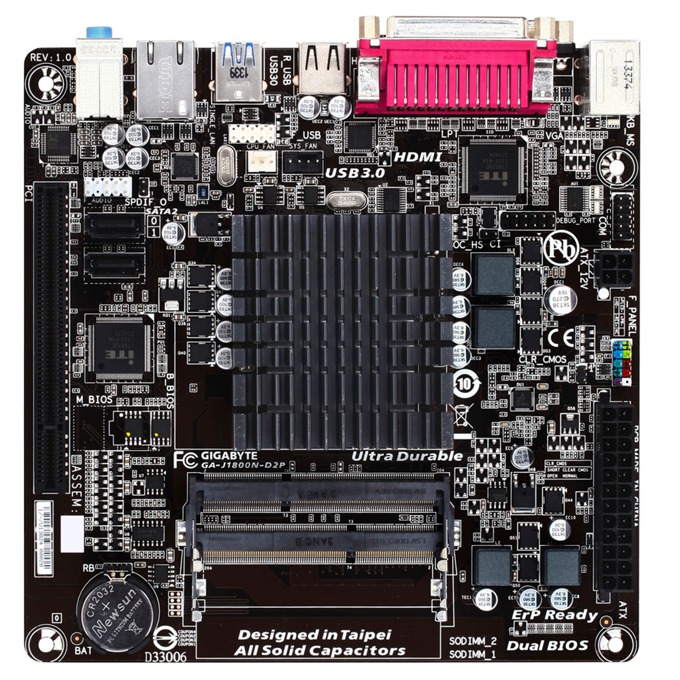

GA-J1800N-D2P (rev. 1.0)

- Built-in Intel® Celeron™ J1800 (2.41 GHz) dual-core processor
- GIGABYTE Ultra Durable™ 4 Plus Technology
- All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
- LAN with high ESD Protection
- GIGABYTE UEFI DualBIOS™
- HDMI, D-SUB ports on rear panel
- USB 3.0 port with GIGABYTE 3x USB power
- GIGABYTE On/Off Charge™ for USB devices
- PCI interface for wide-range expansion card selections



CPU

Built in with an Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz)
* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
1 MB Cache

Memory

2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory
* If only one DDR3/-L memory module is to be installed, be sure to install it in the SODIMM_1 socket.
Dual channel memory architecture
Support for DDR3/-L 1333 MHz memory modules
Support for non-ECC memory modules

Onboard Graphics Integrated in the SoC:

1 x D-Sub port, supporting a maximum resolution of 2560x1600
1 x HDMI port, supporting a maximum resolution of 1920x1080

Audio

Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI slot

Storage Interface Integrated in the SoC:

2 x SATA 3Gb/s connectors

USB Integrated in the SoC:

1 x USB 3.0/2.0 port on the back panel
3 x USB 2.0/1.1 ports (1 port on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 2.0/1.1 header
1 x serial port header
1 x debug card header
1 x chassis intrusion header
1 x Clear CMOS jumper

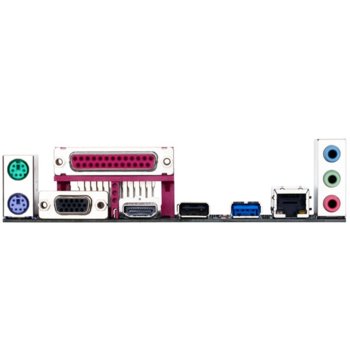

Back Panel Connectors

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x HDMI port
1 x parallel port
1 x USB 3.0/2.0 port
1 x USB 2.0/1.1 port
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for Xpress Install
Support for @BIOS
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
Support for ON/OFF Charge

Bundle Software

Norton® Internet Security (OEM version)
Intel® Smart Connect Technology

Operating System

Support for Windows 8.1/8 32-bit/64-bit
Support for Windows 7 64-bit
* To support Windows 7 64-bit, please update the latest BIOS and drivers.

Form Factor

Mini-ITX Form Factor; 17.0cm x 17.0cm
