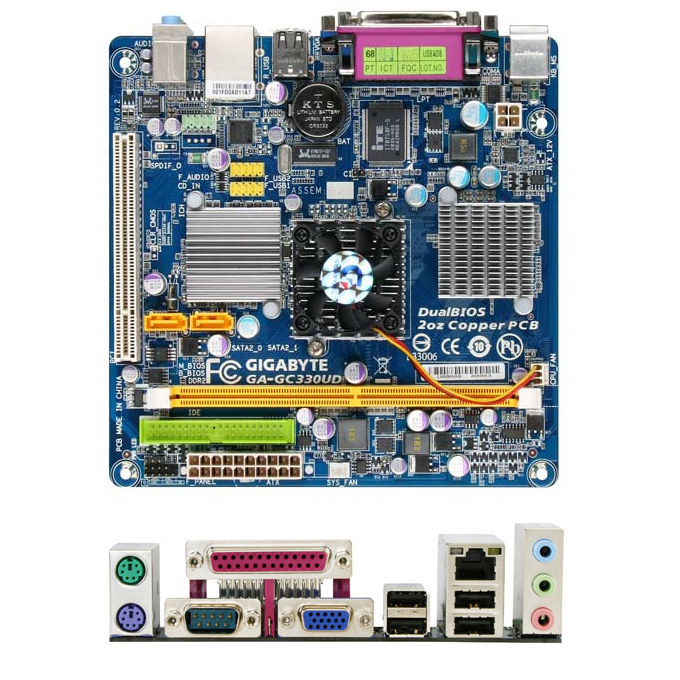

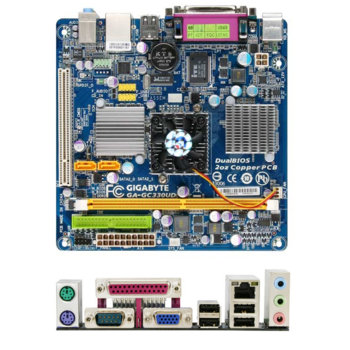

Дънна платка Gigabyte GC330UD (Atom) + Intel® Dual-core Atom™ 1.6GHz, 945GC, DDR2, VGA, SB5.1, Lan, SATA, mini-ITX

GA-GC330UD (rev. 1.0)
Intel® 945GC+ ICH7 chipset

1. Ultra Durable 3 Technology with copper cooled quality for lower working temperature
2. Supports 45nm Intel Atom 330 dual core Processor
3. Integrated Intel Graphics Media Accelerator 950 (Intel GMA 950)
4. All solid capacitors design
5. Integrated High Definition audio
6. High speed 10/100 LAN connectivity
7. Integrated SATA 3Gb/s interface
8. Mini size for flexible use

CPU

1. Built in with an Intel® Dual-core Atom™ Processor 330 (1.6 GHz) (Note 1)
2. 512K L2 cache

Front Side Bus

1. 533 MHz FSB

Chipset

1. North Bridge: Intel® 945GC Express Chipset
2. South Bridge: Intel® ICH7

Memory

1. 1 x 1.8V DDR2 DIMM socket supporting up to 2 GB of system memory
2. Support for DDR2 667(Note 2)/533 MHz memory module

Onboard Graphics

1. Integrated in the North Bridge

Audio

1. Realtek ALC662 codec
2. High Definition Audio
3. 2/4/5.1-channel

LAN

1. Realtek 8102E chip (10/100 Mbit)

Expansion Slots

1. 1 x PCI slot

Storage Interface South Bridge:

1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
2. 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices

USB

1. Integrated in the South Bridge
2. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1. 1 x 20-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x IDE connector
4. 2 x SATA 3Gb/s connectors
5. 1 x CPU fan header
6. 1 x system fan header
7. 1 x front panel header
8. 1 x front panel audio header
9. 2 x USB 2.0/1.1 headers
10. 1 x chassis intrusion header
11. 1 x power LED header

Back Panel Connectors

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x parallel port
4. 1 x serial port
5. 1 x D-Sub port
6. 4 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller

1. iTE IT8718 chip

H/W Monitoring

1. System voltage detection
2. CPU temperature detection
3. CPU(MCH)/North Bridge/System fan speed detection
4. CPU (MCH)fan speed control

BIOS

1. 2 x 4 Mbit flash
2. Use of licensed AWARD BIOS
3. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Download Center
3. Support for Q-Flash
4. Support for EasyTune (Note 3)
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for Virtual Dual BIOS

Bundle Software

1. Norton Internet Security (OEM version)

Operating System

1. Support for Microsoft® Windows® XP /Vista

Form Factor

1. Mini-ITX Form Factor; 17.0cm x 17.0cm

Note
(Note 1) Do not disassemble the onboard CPU/chipset and the heatsinks/fan by yourself to avoid damage to these components.
(Note 2) The DDR2 667 MHz memory will run at 533 MHz due to a CPU limitation.
(Note 3) Available functions in EasyTune may differ by motherboard model.

Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
