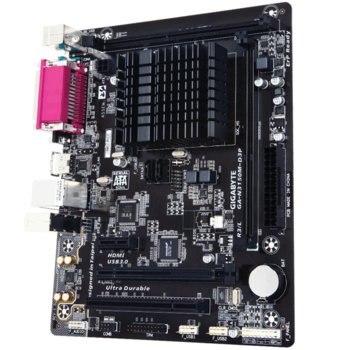

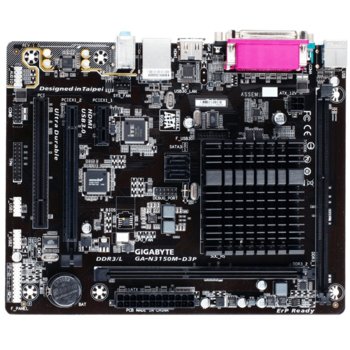

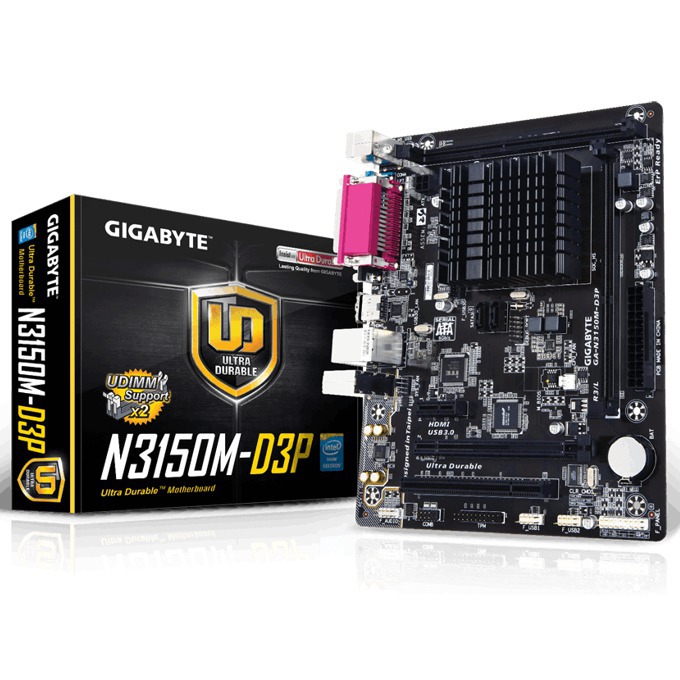

Gigabyte GA-N3150M-D3P
Икона в кампания
Gigabyte GA-N3150M-D3PGigabyte GA-N3150M-D3PGigabyte GA-N3150M-D3PGigabyte GA-N3150M-D3P

Дънна платка Gigabyte GA-N3150M-D3P, вграден четири-ядрен Intel Celeron N3150 1.6/2.08GHz, PCI-E(HDMI), поддържа 2x DDR3/DDR3L, LAN1000, 2x SATA 6Gb/s, 2x USB3.0, Micro ATX

id 83342 Код: MBCPUGIGABYTEGAN3150MD3P
  • Модел: GA-N3150M-D3P
  • Марка: Gigabyte
  • Код на продукта: GA-N3150M-D3P
  • Гаранция: 36 месеца
  • Наличност: Стар продукт
    Продукта вече не се предлага Виж подобни предложения Абонирай се за бюлетина

    Печат

    Изпрати на приятел

    ОписаниеХарактеристикиРевюта / Въпроси
    CPU
    1. Built in with an Intel® Qual-Core Celeron® N3150 SoC (1.6 GHz)
      * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
    2. 2 MB Cache
    Memory
    1. 2 x DDR3 DIMM sockets supporting up to 8 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR3/DDR3L 1600/1333 MHz memory modules
      * Due to an SoC limitation, if a 1333 MHz memory is installed, it will be downgraded to 1066 MHz.
    4. Support for non-ECC memory modules
    (Please refer "Memory Support List" for more information.)
    Onboard Graphics Integrated in the SoC:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz
    Maximum shared memory of 512 MB
    Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
    Expansion Slots
    1. 1 x PCI Express x4 slot, running at x1 (PCIEX1_2)
    2. 1 x PCI Express x1 slot, running at x1 (PCIEX1_1)
    3. 1 x PCI slot
    Storage Interface Integrated in the SoC:
    1. 2 x SATA 6Gb/s connectors
    USB Integrated in the SoC:
    1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
    SoC+GL850S chips:
    1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 2 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x USB 3.0/2.0 header
    9. 2 x USB 2.0/1.1 header
    10. 1 x Trusted Platform Module (TPM) header
    11. 1 x serial port header
    12. 1 x Clear CMOS jumper

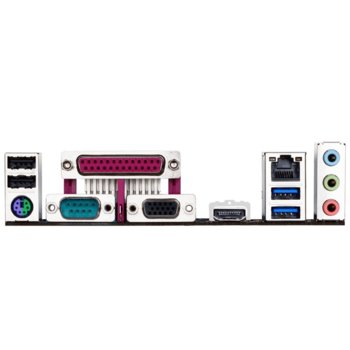

    Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x HDMI port
    4. 1 x serial port
    5. 1 x parallel port
    6. 2 x USB3.0/2.0 port
    7. 2 x USB 2.0/1.1 port
    8. 1 x RJ-45 port
    9. 3 x audio jacks (Line In, Line Out, Mic In)
    I/O Controller
    1. iTE® I/O Controller Chip
    H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
    BIOS
    1. 1 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features
    1. Support for Xpress Install
    2. Support for @BIOS
    3. Support for APP Center
      * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    Bundle Software
    1. Norton® Internet Security (OEM version)
    Operating System
    1. Support for Windows 10 32-bit/64-bit
    2. Support for Windows 8.1 64-bit
    3. Support for Windows 7 32-bit/64-bit
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
    Form Factor
    1. Micro ATX Form Factor; 22.6cm x 18.0cm
    Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
    * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
    * All trademarks and logos are the properties of their respective holders.
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
