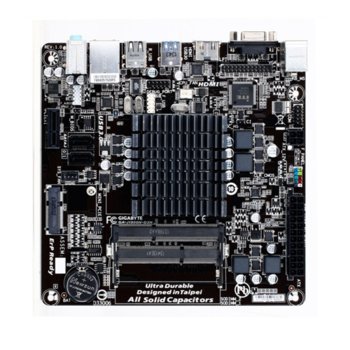

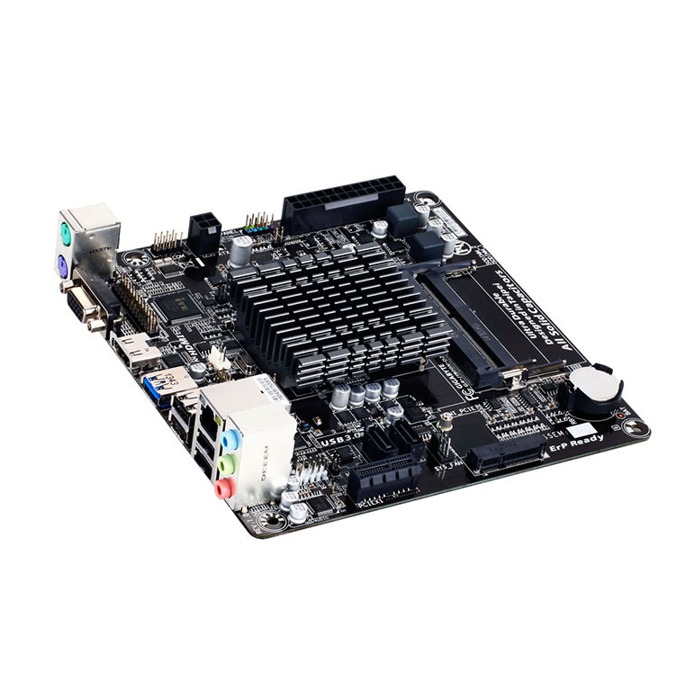

Дънна платка Gigabyte J1900N-D2H, вграден четири-ядрен процесор Celeron J1900, DDR3/L So-Dimm, HDMI, 2x SATA2, USB3.0, miniITX

GIGABYTE GA-J1900N-D2H (rev. 1.1)

CPU
Built in with an Intel® Celeron® Quad-Core J1900 SoC (2.0 GHz)
* Do not disassemble the onboard SoC and the heatsink by yourself to avoid damage to these components.
2 MB Cache

Memory
2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory
* If only one DDR3/-L memory module is to be installed, be sure to install it in the SODIMM_1 socket.
Dual channel memory architecture
Support for DDR3/-L 1333 MHz memory modules
Support for non-ECC memory modules

Onboard Graphics
Integrated in the SoC:
1 x D-Sub port, supporting a maximum resolution of 2560x1600
1 x HDMI port, supporting a maximum resolution of 1920x1080

Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the
multi-channel audio feature through the audio driver.
Support for S/PDIF Out

LAN
Realtek® GbE LAN chips (10/100/1000 Mbit)

Expansion Slots
1 x PCI Express x1 slot
1 x Mini PCI Express x1 slot
* This socket does not support USB Bluetooth signals.
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface
Integrated in the SoC:
2 x SATA 3Gb/s connectors

USB
SoC:
1 x USB 3.0/2.0 port on the back panel
SoC + GL850S USB 2.0 Hub:
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 3Gb/s connectors
1 x USB 2.0/1.1 header
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Clear CMOS jumper
1 x chassis intrusion header

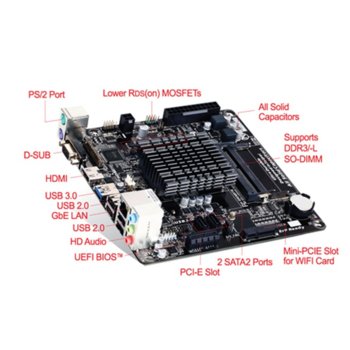

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x HDMI port
1 x USB 3.0/2.0 port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control

BIOS
1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
