Дънна платка Gigabyte J1800M-D3P, вграден дву-ядрен Intel Celeron J1800 2.41 GHz, PCI-E (HDMI, D-Sub), поддържа 2x DDR3/L, Lan1000, 2x SATA 3Gb/s, USB3.0, micro-ATX

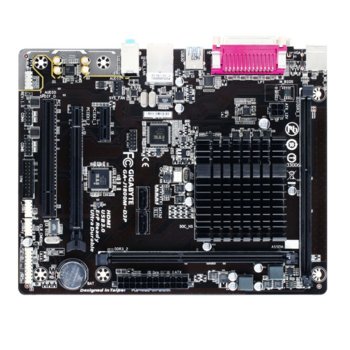

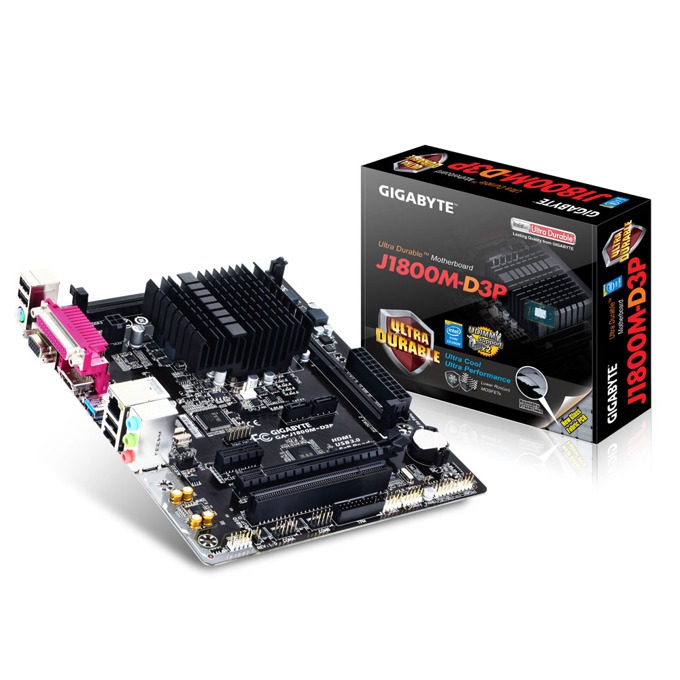

The GIGABYTE J1800M micro ATX motherboard is a fully integrated PC motherboard featuring the Intel® Celeron™ J1800 dual-core processor.

CPU
Built in with an Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz) 1 MB Cache

Memory
2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR3/-L 1333 MHz memory modules
Support for non-ECC memory modules

Onboard Graphics
Integrated in the SoC:
1 x D-Sub port, supporting a maximum resolution of 2560x1600
1 x HDMI port, supporting a maximum resolution of 1920x1080

Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
*To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out

LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x1(PCIEX1_2)
1 x PCI Express x1 slot
1 x PCI slot

Storage Interface
Integrated in the SoC:
2 x SATA 3Gb/s connectors

USB
Integrated in the SoC:
1 x USB 3.0/2.0 port on the back panel
SoC + GL850 USB 2.0 Hub:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)


Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
2 x serial port headersŠŠ
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper

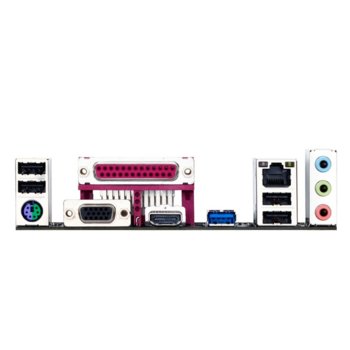

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
1 x parallel port
1 x USB 3.0/2.0 port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller
iTE® I/O Controller Chip

BIOS
1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System
Support for Windows 8.1/8/7

Form Factor
Micro ATX Form Factor; 22.6cm x 18.0cm
