Дънна платка Gigabyte J1800M-D2P, вграден дву-ядрен Celeron J1800 2.41/2.58GHz, DDR3, HDMI, USB3.0, mATX

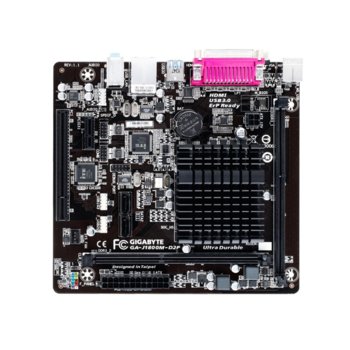

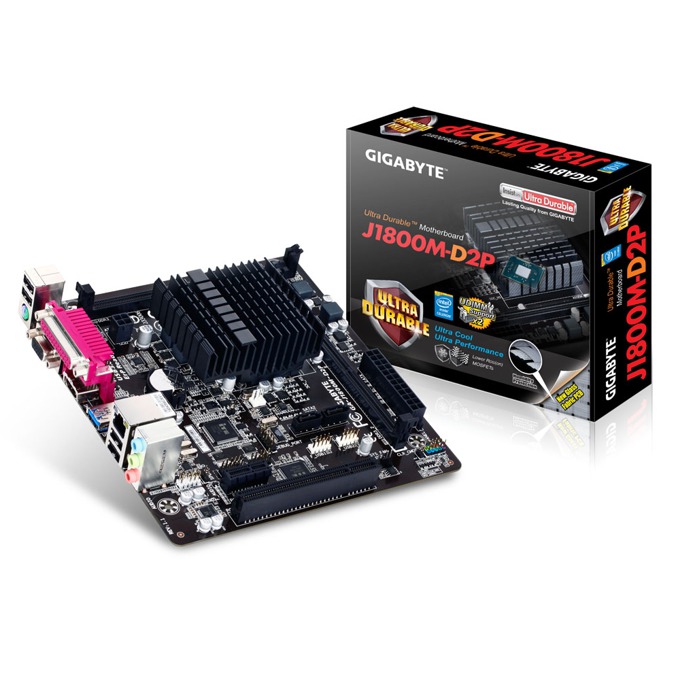

GIGABYTE GA-J1800M-D2P (rev. 1.1)

CPU
Built in with an Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz)
* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
1 MB Cache

Memory
2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3/-L 1333 MHz memory modules
Support for non-ECC memory modules

Onboard Graphics
Integrated in the SoC:
1 x D-Sub port, supporting a maximum resolution of 2560x1600
1 x HDMI port, supporting a maximum resolution of 1920x1080

Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel
audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out

LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
1 x PCI Express x1 slot
1 x PCI slot

Storage Interface
Integrated in the SoC:
2 x SATA 3Gb/s connectors

USB
Integrated in the SoC:
1 x USB 3.0/2.0 port on the back panel
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
2 x serial port headers
1 x chassis intrusion header
1 x Clear CMOS jumper

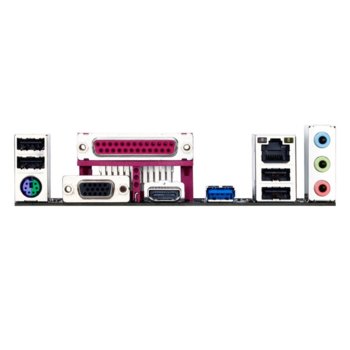

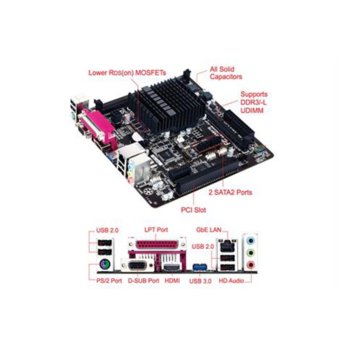

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
1 x parallel port
1 x USB 3.0/2.0 port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control

BIOS
1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Form Factor
Micro ATX Form Factor; 19.0cm x 18.0cm
