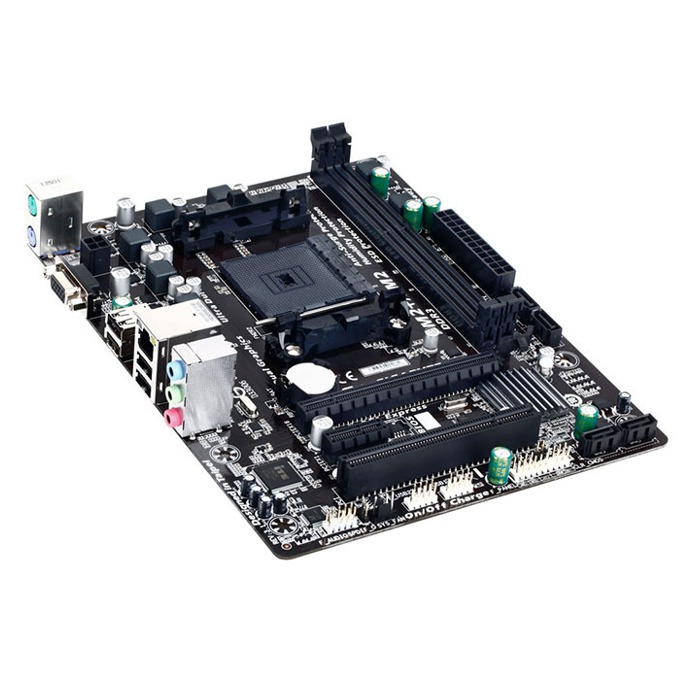

Дънна платка Gigabyte GA-F2A58M-S1, AMD A58, FM2+, DDR3 2400(OC), PCI-E (D-Sub), Lan1000, 4x SATA2 RAID 0,1,10, mATX

GIGABYTE GA-F2A58M-S1 (rev. 3.0)

CPU
FM2+ Socket:
AMD A series processors
AMD Athlon™ series processors

• Chipset
AMD A58

Memory
2 x DDR3 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules

VGA
Integrated Graphics Processor:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
Maximum shared memory of 2 GB

Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
1 x PCI slot

Storage Interface
4 x SATA 3Gb/s connectors
Support for RAID 0, RAID 1, RAID 10, and JBOD

USB
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x APU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
System voltage detection
APU/System temperature detection
APU/System fan speed detection
APU overheating warning
APU/System fan fail warning
APU/System fan speed control

BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Operating System
Support for Windows 8.1/8/7 32-bit/64-bit
Support for Windows XP 32-bit

Form Factor
Micro ATX Form Factor; 22.6cm x 17.4cm
