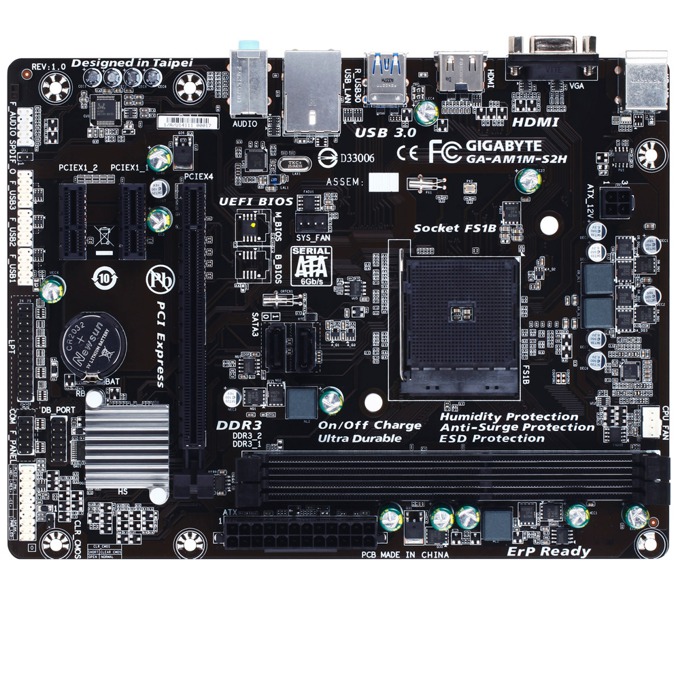

Дънна платка Gigabyte AM1M-S2H, AM1, DDR3, PCI-E (HDMI 1.4a(4K)), SB7.1, Lan1000, 2x SATA 6Gb/s, 2x USB 3.0, mATX

Gigabyte GA AM1M S2H

- Socket FS1b supports AMD AM1 Athlon/Sempron-series APU
- GIGABYTE Ultra Durable™ Technology
- GIGABYTE UEFI BIOS
- HDMI, D-sub ports for multi-display support
- GIGABYTE On/Off Charge™ for USB devices
- 2 USB 3.0 ports with GIGABYTE 3x USB power
- High ESD Protection on GbE LAN and USB ports

APU FS1b Socket:

AMD Athlon™ series processors
AMD Sempron™ series processors
(Please refer "CPU Support List" for more information.)

Memory

2 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Support for DDR3 1600/1333 MHz memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics Integrated Graphics Processor:

1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x HDMI port, supporting a maximum resolution of 4096x2160
* Support for HDMI 1.4a version.
Maximum shared memory of 2 GB

Audio

Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(The PCI Express slots conforms to PCI Express 2.0 standard.)

Storage Interface Integrated in the APU:

2 x SATA 6Gb/s connectors

USB Integrated in the APU:

2 x USB 3.0/2.0 ports on the back panel
8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
1 x APU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper

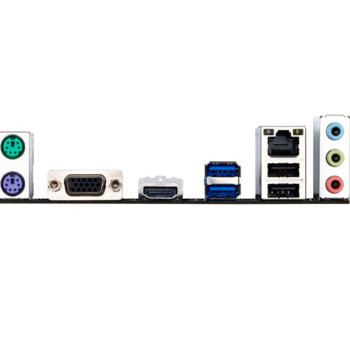

Back Panel Connectors

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

System voltage detection
APU/System temperature detection
APU/System fan speed detection
APU overheating warning
APU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 32 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Smart Recovery 2
Support for ON/OFF Charge

Bundle Software

Norton® Internet Security (OEM version)

Operating System

Support for Windows 8.1/8/7 32-bit/64-bit
Support for Windows XP 32-bit

Form Factor

Micro ATX Form Factor; 22.6cm x 17.0cm
