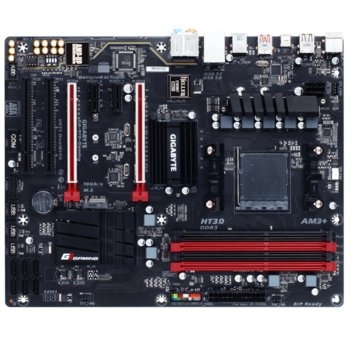

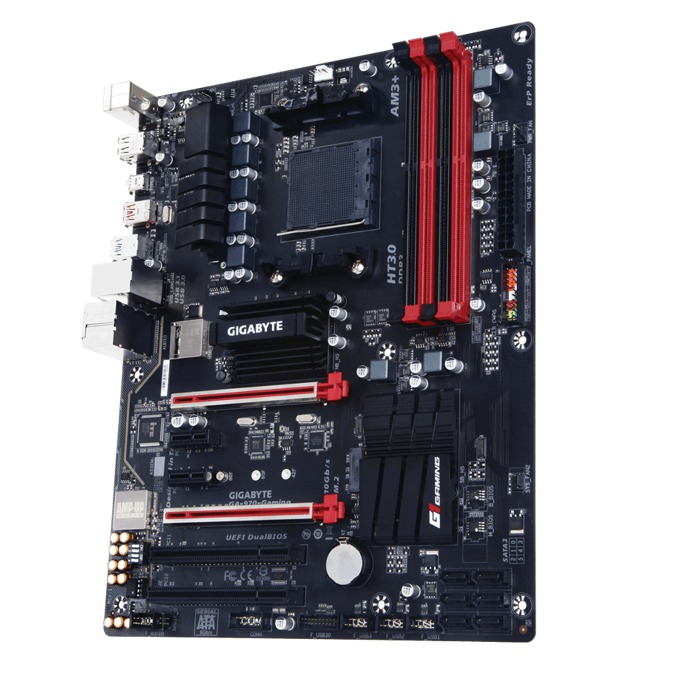

Дънна платка Gigabyte GA-970-Gaming (rev. 1.0), AMD 970 & AMD SB950, AM3(+), DDR3, PCI-E (CF), 6x SATA 6Gb/s, 1x M.2 slot, 1x USB 3.1 (Type-A), ATX

Gigabyte GA-970-Gaming (rev. 1.0)
AMD 970 + SB950 Chipse

- Supports AMD AM3+/ AM3 Processor
- Dual Channel DDR3, 4 DIMMs
- Fast USB 3.1 with USB Type-C™ - The World’s Next Universal Connector
- PCIe Gen2 x2 M.2 Connectors with up to 10Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
- 2-Way Graphics Support with Exclusive Ultra Durable Metal Shielding over the PCIe Slots
- 115dB SNR Audio with Upgradable AMP-UP Technology
- Killer™ E2200 series Gaming Networks
- High Quality Audio Capacitors and Audio Noise Guard with Ambient LED Trace Path Lighting
- GIGABYTE USB DAC-UP ports
- All new GIGABYTE™ APP Center, simple and easy use
- GIGABYTE UEFI DualBIOS™ Technology


CPU

AM3+ Socket:

AMD AM3+ FX processor
AMD AM3 Phenom™ II processor/ AMD Athlon™ II processor

(Please refer "CPU Support List" for more information.)


Hyper Transport Bus

HyperTransport™ 3.0
Support up to 5200MT/s

Chipset

North Bridge: AMD 970
South Bridge: AMD SB950

Memory

4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules
* To support a DDR3 1866 MHz (and above) memory, you must install an AM3+ CPU first.
Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)
Audio

Realtek® ALC1150 codec
TI Burr Brown® NE5532 operational amplifier
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN

Rivet Networks Killer™ E2201 LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2F_10G connector. The PCIEX4 slot will operate at up to x2 mode when a PCIe SSD is installed in the M2F_10G connector.
2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 2.0 standard.)
2 x PCI slots

Multi-Graphics Technology

Support for 2-Way AMD CrossFire™ technology

Storage Interface

South Bridge:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2/x1 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD
* Refer to "1-8 Internal Connectors," for the supported configurations with the M.2 and SATA connectors.

USB

South Bridge:

12 x USB 2.0/1.1 ports (6 ports on the back panel, 6 ports available through the internal USB headers)

VIA® VL805 chip:

4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

ASMedia® USB 3.1 Controller:

1 x USB Type-C™ port on the back panel, with USB 3.1 support
1 x USB 3.1 Type-A port (red) on the back panel

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
1 x audio gain control switch

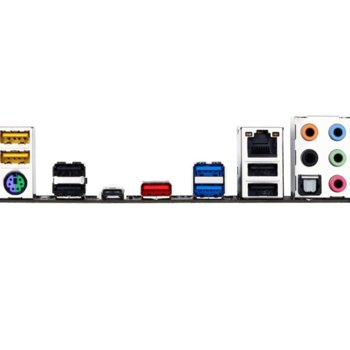

Back Panel Connectors

1 x PS/2 keyboard/mouse port
1 x USB Type-C™ port, with USB 3.1 support
1 x USB 3.1 Type-A port (red)
2 x USB 3.0/2.0 ports
6 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

2 x 32 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
Cloud Station
EasyTune
Game Controller
Smart TimeLock
Smart Recovery 2
System Information Viewer
USB Blocker
Support for Q-Flash
Support for ON/OFF Charge
Support for Smart Switch
Support for Xpress Install

Bundle Software

Norton® Internet Security (OEM version)

Operating System

Support for Windows 10/8.1/7

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Remark

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
