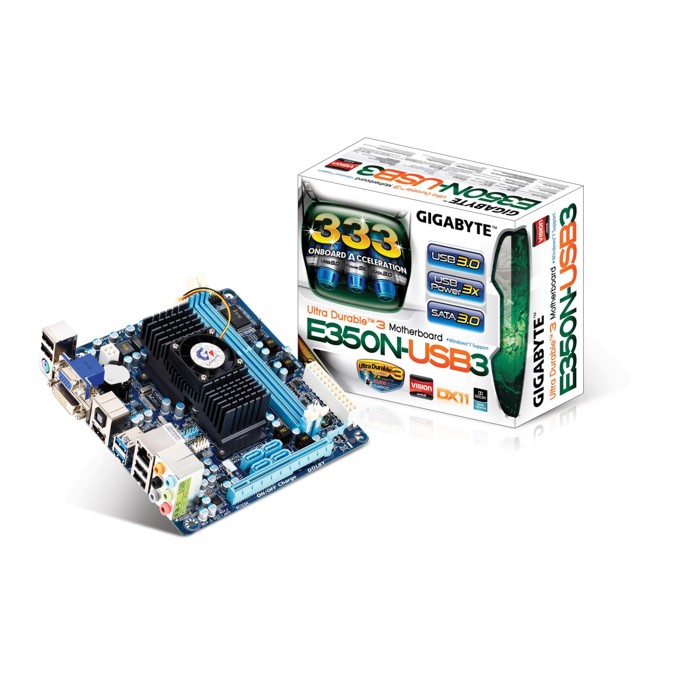

Дънна платка Gigabyte E350N-USB3, AMD FCH A50, AMD E-350 Dual-Core 1.6GHz, DDR3, VGA+PCI-E (HDMI & DVI), SB7.1 Dolby, Lan1000, 4xSATA 6Gb/s, 2xUSB3.0, Mini-ITX

Gigabyte GA-E350N-USB3

CPU

Built in with an AMD E-350 Dual-Core processor
Built in with an AMD Radeon HD 6310 (DirectX 11) graphics core

Chipset

AMD Hudson-M1 FCH

Memory

2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Single channel memory architecture
Support for DDR3 1333(OC)/1066 MHz memory modules

Onboard Graphics Integrated in the APU:

1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connector by adapter.
1 x HDMI port, supporting a maximum resolution of 1920x1200
* For configuring screen resolution, please refer the user manual- Chapter 1 Hardware Installation of Back Panel Connectors section.

Audio

Realtek ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for Dolby Home Theater
Support for S/PDIF Out

LAN

1 x Realtek 8111E chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x4
(The PCIEX4 slot conforms to PCI Express 2.0 standard.)

Storage Interface FCH:

4 x SATA 6Gb/s connectors supporting up to 4 SATA 6Gb/s devices

* SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.
USB FCH:

Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Renasas D720200 chip:

Up to 2 USB 3.0 ports on the back panel

* USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x debug card header
* This port is mainly used by repair technicians for debugging and problem diagnosis.
1 x chassis instrusion header
1 x power LED header
1 x clearing CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard/ mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x optical S/PDIF Out connector
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

ITE IT8720 chip

H/W Monitoring

System voltage detection
CPU/System temperature detection
CPU/System fan speed detection

BIOS

2 x 16 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Smart Recovery
Support for Auto Green
Support for On/Off Charge
Support for Q-Share

Bundle Software

Norton Internet Security (OEM version)

Operating System

Support for Microsoft Windows 7/ Vista/ XP

Form Factor

Mini-ITX; 17.0cm x 17.0cm

Note
* GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice.

Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors no longer offer support for Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
