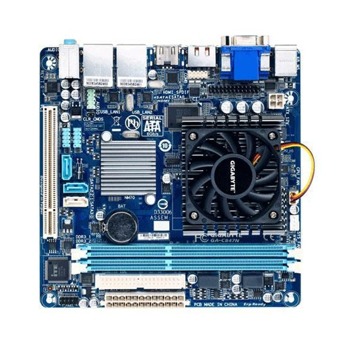

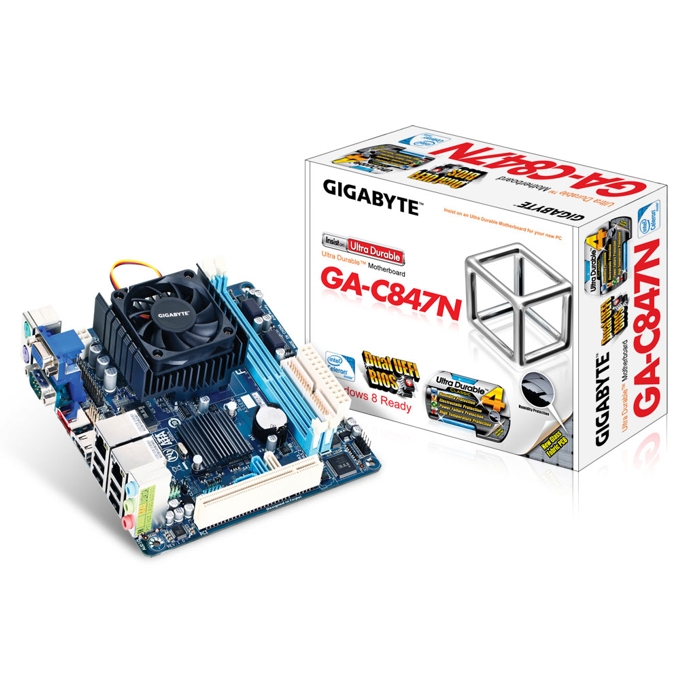

Дънна платка Gigabyte C847N, NM70, двуядрен Celeron® 847 1.1 GHz, DDR3, HDMI, SB7.1, 2xLan1000, 1xSATA 6Gb/s, mini-ITX

GA-C847N (rev. 1.0)
Intel® NM70 Chipset

- GIGABYTE Dual UEFI BIOS
- All new design of Ultra Durable 4 classic
- Industry's Leading All Solid Capacitor Design
- Dual LAN for networking flexibility
- HDMI interface for smoother HD video playback
- GIGABYTE On/Off Charge™ for USB devices
- Windows 8 ready

CPU

Built in with an Intel® Dual-core Celeron® 847 processor (1.1 GHz)
* Do not disassemble the onboard CPU/Chipset and the heatsinks/fan by yourself to avoid damage to these components.
2 MB L3 cache

Chipset

Intel® NM70 Chipset

Memory

2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1333/1066 MHz memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics Integrated Graphics Processor:

1 x D-Sub port
1 x HDMI port, supporting a maximum resolution of 1920x1200

Audio

Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

2 x Realtek GbE LAN chips (10/100/1000 Mbit)

Expansion Slots

1 x PCI slot

Storage Interface Chipset:

1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device
2 x SATA 3Gb/s connectors (SATA2 1/2) supporting up to 2 SATA 3Gb/s devices
1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device

JMicron JMB368 chip:

1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

USB Chipset

Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x IDE connector
1 x SATA 6Gb/s connector
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x parallel port
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header

Back Panel Connectors

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x COM port
1 x HDMI port
4 x USB 2.0/1.1 ports
1 x eSATA 3Gb/s connector
2 x RJ-45 ports
3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
System fan speed control
* Whether the system fan speed control function is supported will depend on the system cooler you install.

BIOS

2 x 32 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features

Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for Xpress Recovery 2
Support for EasyTune 6
* Available functions in EasyTune 6 may differ by motherboard model.
Support for Smart Recovery 2
Support for Auto Green
Support for ON/OFF Charge

Bundle Software

Norton Internet Security (OEM version)
Intel® Smart Connect Technology

Operating System

Support for Microsoft® Windows® 8/7/XP

Form Factor

Mini-ITX Form Factor; 17.0cm x 17.0cm

Remark

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
