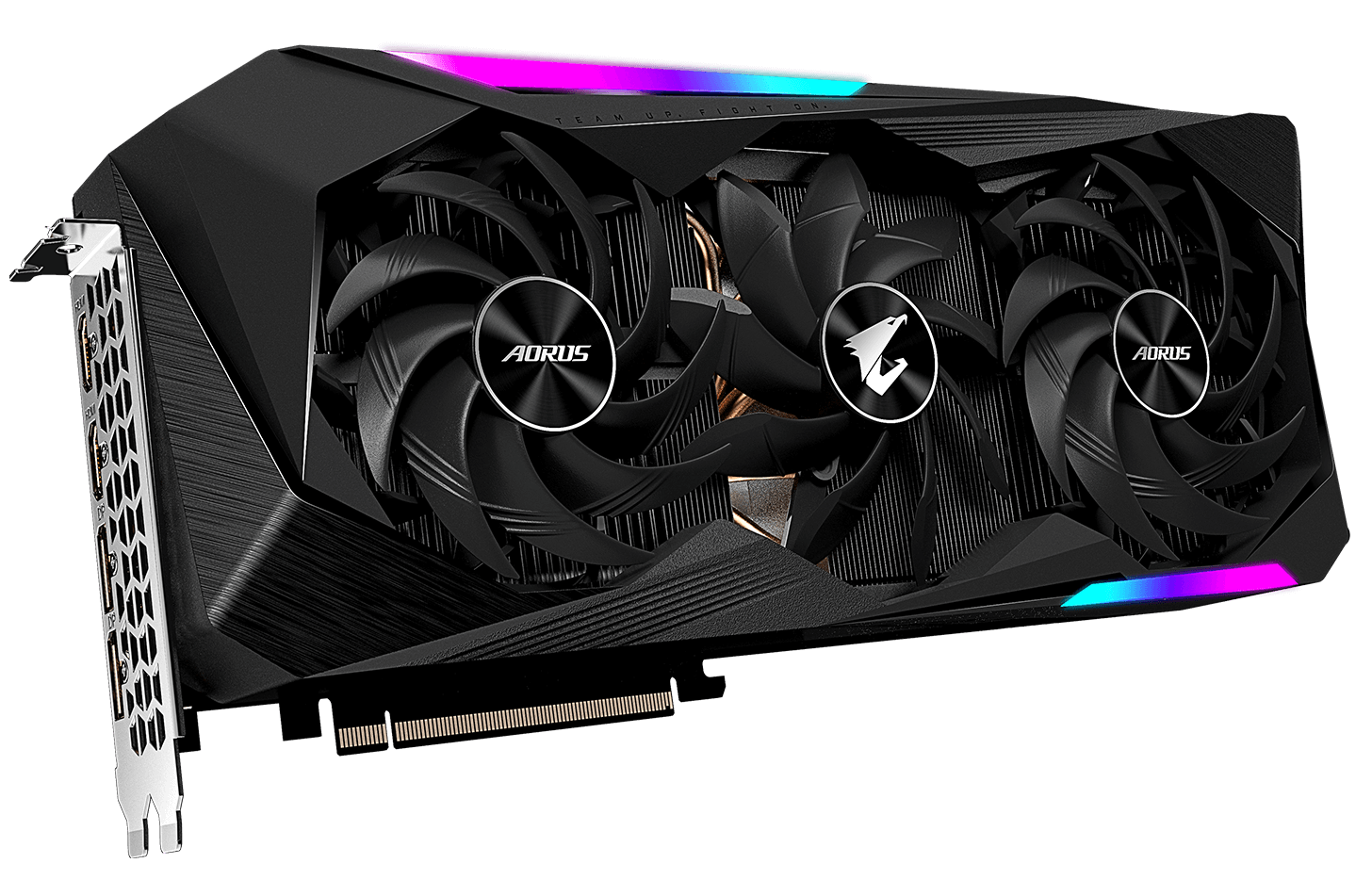

AORUS Radeon RX 6900 XT MASTER





Powered by RDNA2 Radeon™ RX 6900 XT
Integrated with 16GB GDDR6 256-bit memory interface
MAX-Covered cooling
LCD Edge View
RGB Fusion 2.0
Dual BIOS
Protection metal back plate


DESIGN CONCEPT In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style. Welcome to the Digital Code Era.
	UNIQUE BLADE STACK FANS The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
WIND CLAW DESIGN Reinforce and channel the airflow to completely cover the heat sink
	SCREEN COOLING Extended heatsink design allows air flow to pass through, providing better heat dissipation.
METAL BACK PLATE The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
	UAL BIOS Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.
EXCELLENCE Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.



Specification



• Graphics Processing

  Radeon™ RX 6900 XT

• Core Clock

  Boost Clock* : up to 2335 MHz

  Game Clock* : up to 2135 MHz

• Stream Processors

  5120

• Process Technology

  7 nm

• Memory Clock

  16000 MHz

• Memory Size

  16 GB

• Memory Type

  GDDR6

• Memory Bus

  256 bit

• Memory Bandwidth (GB/sec)

  512 GB/s

• Card Bus

  PCI-E 4.0 x 16

• Digital max resolution

  7680x4320

• Multi-view

  4

• Card size

  L=322 W=140 H=60 mm

• PCB Form

  ATX

• DirectX

  12 Ultimate

• OpenGL

  4.6

  Recommended PSU

  850W

  Power Connectors

  8 pin*3

  Output

  DisplayPort 1.4a 2

  HDMI 2.1 2
