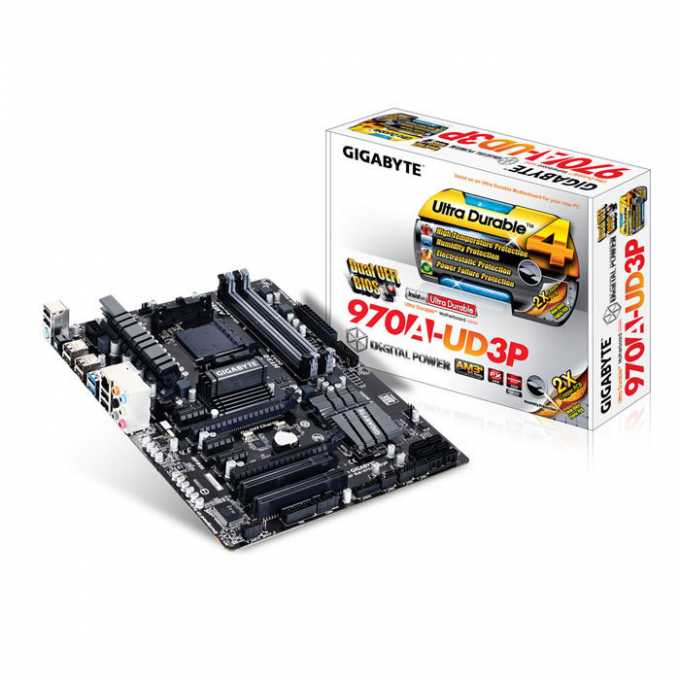

Дънна платка Gigabyte 970A-UD3P, AMD A970, AM3+, DDR3, PCI-E, SB7.1, Lan1000, 6x SATA 6Gb/s RAID 0,1,5,10, 2x USB3.0, ATX

GA-970A-UD3P (rev. 1.0)
AMD 970 + SB950 Chipset

- Supports AMD AM3+ FX / AM3 Phenom™ II, Athlon™ II series Processors
- GIGABYTE Ultra Durable™ 4 Technology
- GIGABYTE Digital Power Engine
- 8+2 phase CPU VRM power design for AMD high-TDP CPU support
- GIGABYTE UEFI DualBIOS™
- 2-way CrossFire™ Support
- VIA 2021 with High Quality 108dB SNR HD audio
- GIGABYTE On/Off Charge™ for USB devices
- 4 USB 3.0 ports with GIGABYTE 3x USB power
- 6 SATA3 ports with RAID support
- GbE LAN with high ESD Protection

CPU AM3+ Socket:

AMD AM3+ FX processors
AMD AM3 Phenom™ II processor/ AMD Athlon™ II processor
(Please refer "CPU Support List" for more information.)

Hyper Transport Bus

4800 MT/s

Chipset

North Bridge: AMD 970
South Bridge: AMD SB950

Memory

4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules (Note 2)
(Please refer "Memory Support List" for more information.)

Audio

VIA® VT2021 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 3)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots
(All PCI Express slots conform to the PCI Express 2.0 standard.)
2 x PCI slots

Storage Interface South Bridge:

6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD

USB South Bridge:

14 USB 2.0/1.1 ports (8 ports on the back panel, 6 ports available through the internal USB headers)

VIA® VL805 chip:

Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header

Back Panel Connectors

1 x PS/2 keyboard/mouse port
1 x optical S/PDIF Out connector
8 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x RJ-45 port
6 x audio jacks (Center, Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control (Note 4)

BIOS

2 x 32 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features

Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune (Note 5)
Support for ON/OFF Charge
Support for Smart Recovery 2

Bundle Software

Norton® Internet Security (OEM version)

Operating System

Support for Windows 8/7/Vista/XP

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Note
(Note 1) Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
(Note 2) To support a DDR3 1866 MHz (and above) memory, you must install an AM3+ CPU first.
(Note 3) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(Note 4) Whether the fan speed control function is supported will depend on the cooler you install.
(Note 5) Available functions in EasyTune may differ by motherboard model.

Remark
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
