Дънна платка Gigabyte 78LMT-S2P, AMD 760G, AM3+, DDR3, PCI-E (DVI), SB5.1, Lan1000, 6x SATA 3Gb/s Raid 0, 1, 10, 4x USB 2.0, mATX

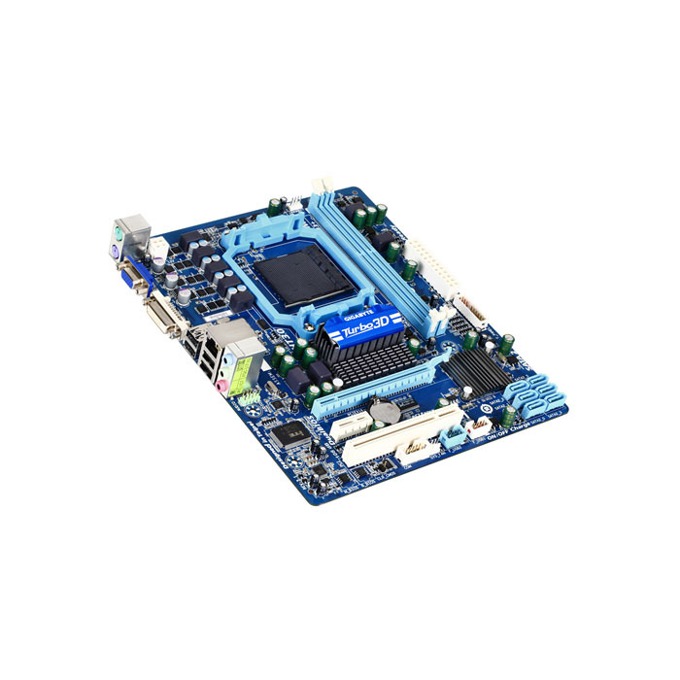

GIGABYTE GA-78LMT-S2P

• CPU
AM3+ Socket:
Support for AMD AM3+ processor
Support for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor

• Hyper Transport Bus
5200 MT/s

• Chipset
North Bridge: AMD 760G
South Bridge: AMD SB710

• Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory
Dual channel memory architecture
Support for DDR3 1333+ (O.C.)/1066/800 MHz memory modules

• VGA
Integrated ATI Radeon HD 3000 graphics (DirectX10)
North Bridge:
1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 1920x1200

• Expansion Slots
1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
(All PCI Express slots conform to PCI Express 2.0 standard.)
1 x PCI slot

• Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
6 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x clearing CMOS jumper

• Storage Interface
South Bridge:
6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 10, and JBOD

• Audio
Realtek ALC889 codec
High Definition Audio
2/4/5.1/7.1-channel

• LAN
1 x Realtek 8111E chip (10/100/1000 Mbit)

• Rear Panel I/O Ports
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)

• BIOS
2 x 16 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

• Form Factor
Micro ATX

• Dimensions
24.4cm x 20.6cm

• Package
Box
