Forton Eufo 1.1K

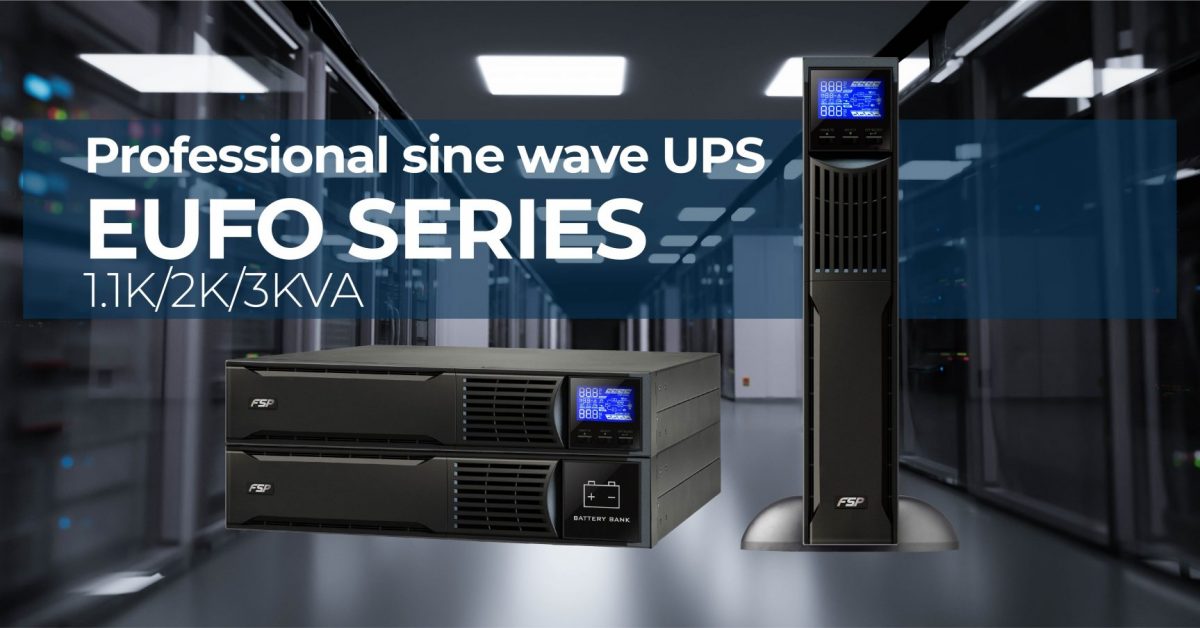

FSP Eufo Series rating is from 1.1KVA to 3.0KVA and implemented protect functions for power failures, surge overvoltage and brownout. Rack & Tower with easy-shift LCD design is flexible for installation. Moreover, this series built/in Efficiency corrective Optimizer (ECO) that the efficiency is up to 98% for more energy saving. The application is suitable for networking, telecom, server and mission/critical applications.

Features:

Pure sine wave
Output power factor 0.9
Excellent microprocessor control for high reliability
User-friendly and easy-shift LCD design
Boost and buck AVR for voltage stabilization
Programmable power management outlets
Emergency power off function (EPO)
Hot-swappable battery design
ECO mode for energy saving
Multiple communication available ( Rack/Tower 2 in 1 design with rotatable LCD )

Specs:

INPUT

CAPACITY 1100 VA / 990W
Nominal Voltage     208/220/230/240Vac
Voltage Range      162-290 Vac
Frequency Range    50Hz / 60Hz
Power Factor       ≧ 0.99 @ Nominal Voltage (100% load)

OUTPUT
Output Voltage     208/220/230/240Vac
Voltage Regulation     ± 1.5 %
Frequency Range (Synchronized Range)     50Hz / 60Hz ± 1Hz
Frequency Range (Batt. Mode)     50 Hz or 60Hz ± 2%
Inverter Crest Ratio     3:1
THD     Linear Load     ≦ 2 %
Non-linear load     ≦ 5 %
Transfer Time     2 ~ 6 ms
Waveform (Batt. Mode)     Pure Sinewave
EFFICIENCY
Line Mode     95%
ECO Mode     97%
Battery Mode     90%     91%     　92%
