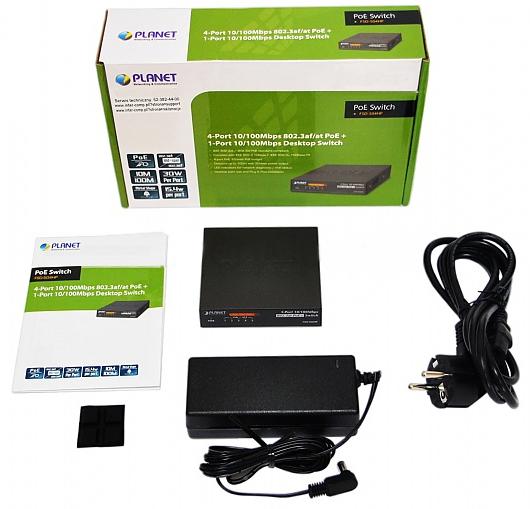

Name: FSD-504HP - 5 портов 60W PoE switch (4 port PoE)
Brand: Неизвестен
Price: 53.38 EUR
Availability: InStock

Описание

Network Connector	5-Port RJ-45 for 10/100Base-TX, auto MDI / MDIX
PoE Inject Port	4 ports with 802.3at / af PoE injector function (port 2 to port 5)
LED Display	System: Power (Green) Per PoE port:PoE (Orange, port 2 to port 5) LNK/ACT (Green, port 1 to port 5)
Switch Architecture	Store and Forward switch architecture
MAC Address Table	1K MAC address table with auto learning function
Switch Fabric	1Gbps
Switch Throughput	0.74Mpps @64Bytes
Maximum Packet Size	1536Bytes
Flow Control	Back pressure for Half-Duplex. IEEE 802.3x Pause Frame for Full-Duplex
Power Requirements	DC 56V, 1.5A. (захранващ адаптер включен в комплекта)
Power Consumption	Max.62 watts / 211.5 BTU
Dimensions (W x D x H)	90 x 80 x 21 mm
Weight	172g
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet / PSE IEEE 802.3at Power over Ethernet Plus / PSE
PoE Power Supply Type	Mid-Span
Power Pin Assignment	4/5(+), 7/8(-)
PoE Power Output	Per Port 56V DC, 375mA. Max. 15.4 watts (IEEE 802.3af) Per Port 56V DC, 375mA. Max. 30 watts (IEEE 802.3at)
PoE Power Budget	60 watts
Number of 802.3af PD Class 0, 1, 2, 3 can be powered	4
Number of 802.3at PD Class 1, 2, 3 can be powered	4
Number of 802.3at PD Class 0, 4 can be powered	2
Standard Conformance
EMI Safety	FCC Class A, CE
Standard Compliance	IEEE 802.3:Ethernet IEEE 802.3u:Fast Ethernet IEEE 802.3x:Flow Control IEEE 802.3af:Power over Ethernet IEEE 802.3at:High Power over Ethernet
Environment
Operating Environment	0 ~ 50 degrees C
Storage Environment	-10 ~ 70 degrees C
Operating Humidity	5 ~ 95%, relative humidity, non-condensing
Storage Humidity	5 ~ 95%, relative humidity, non-condensing
