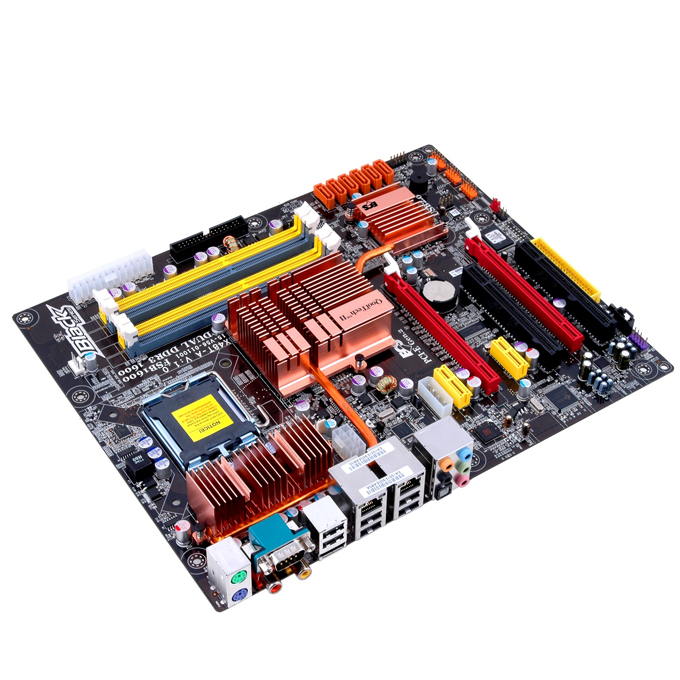

X48T-A (V1.0)
X48T-A, ECS first Black-Extreme product 2008, features Intel X48 and ICH9R chipsets, by supporting FSB1600 and DDR3 1600/1333, providing great performance. X48T-A accentuates high quality CPU power design with ferrite core chokes,and solid capacitors, improve its durablity significantly. Moreover, X48T-A provides ultimate graphics performance with PCI-E Gen2.0 x16 interface, upgrades your visual experience. X48T-A is the best chioce for gaming usage.
CPU
LGA775 socket for latest Intel Yorkfield/ Wolfdale/Core 2 Extreme/Core 2 Quad/Core 2 Duo processor
FSB 1600/1333/1066/800MHz
CHIPSET
Intel® X48 & ICH9R
North Bridge: Intel® X48
South Bridge: Intel® ICH9R
MEMORY
Dual-channel DDR3 memory architecture
Support DDR3 1600/1333/1066/800 DDRIII SDRAM
4 x 240-pin DDR3 DIMM socket support up to 8 GB
EXPANSION SLOT
2 x PCI Express Gen 2.0 x16 slots
2 x PCI Express x1 slots
2 x PCI slots
STORAGE
Support by Intel® ICH9R
6 x Serial ATAII 3.0Gb/s devices
RAID0, RAID1, RAID5, RAID 10 configuration
Supported by JMicron® JMB361
2 x Ultra DMA133/100/66 devices
1xSATAII 3.0Gb/s devices
AUDIO
Realtek ALC 888S supports 8-channel HD audio
Heat Pipe
1 x ECS QooTechII Heat Pipe
Dual Giga LAN
Intel 82566DC GigaLAN Controller
Realtek 8111B PCIe GigaLAN Controller
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
1 x External SATA port
6 x USB ports
2 x RJ45 LAN connectors
1 x RCA SPDIF In Connector (Yellow)
1 x RCA SPDIF Out Connector (Orange)
1 x Audio port (1Line in, 4x Line out, 1 Optical SPDIF Out)
1 x Serial port (COM1)
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply Connector & 8-pin 12V Connector
1 x IrDA for SIR header
1 x Front panel audio header
1 x CD in header
6 x Serial ATA connectors
1 x Buzzer
1 x Front panel header
1 x Clear CMOS header
3 x USB 2.0 headers support additional 6 USB ports
1 x IDE connector
CPUFAN/SYSFAN connectors
SYSTEM BIOS
AMI BIOS with 16Mb SPI ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
ATX Size, 305mm*244mm
